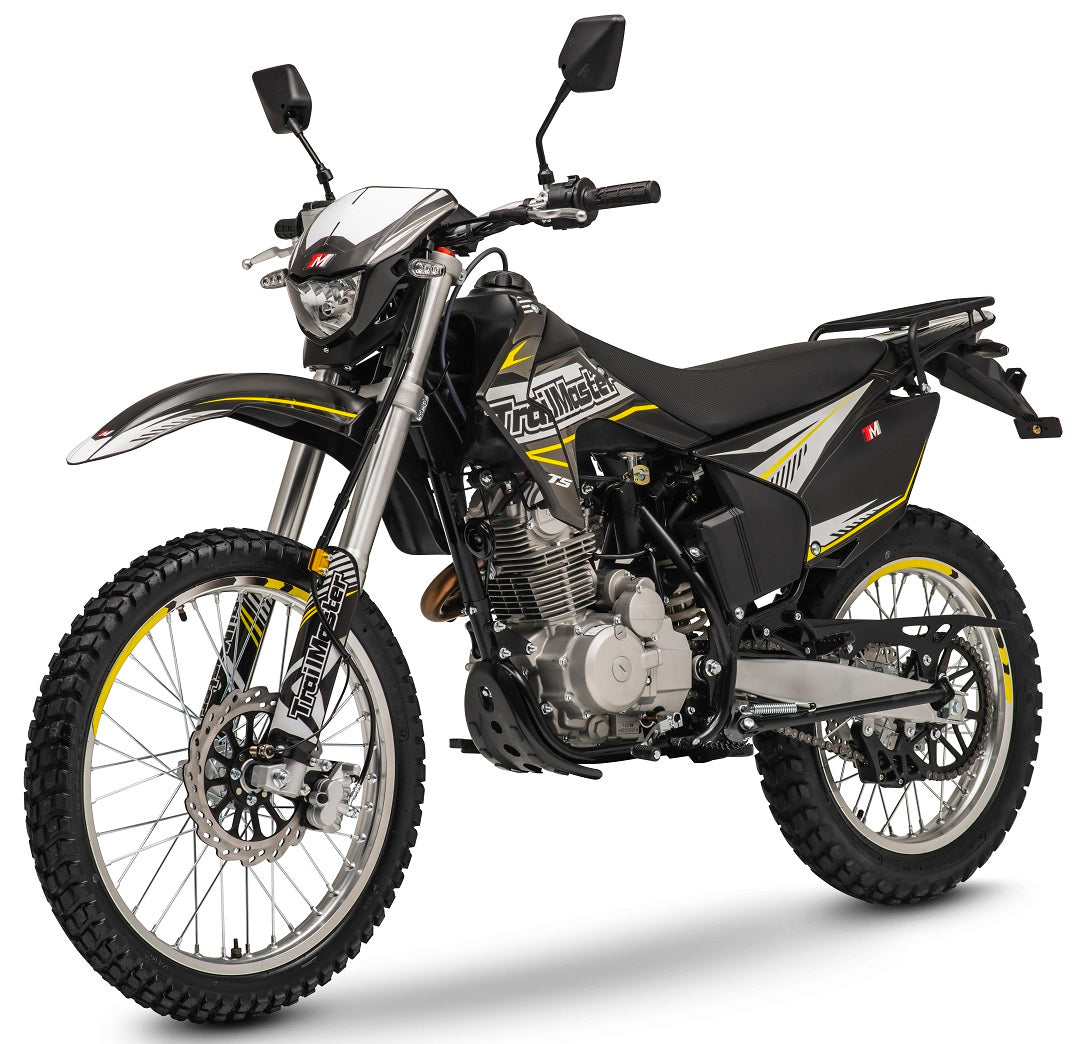

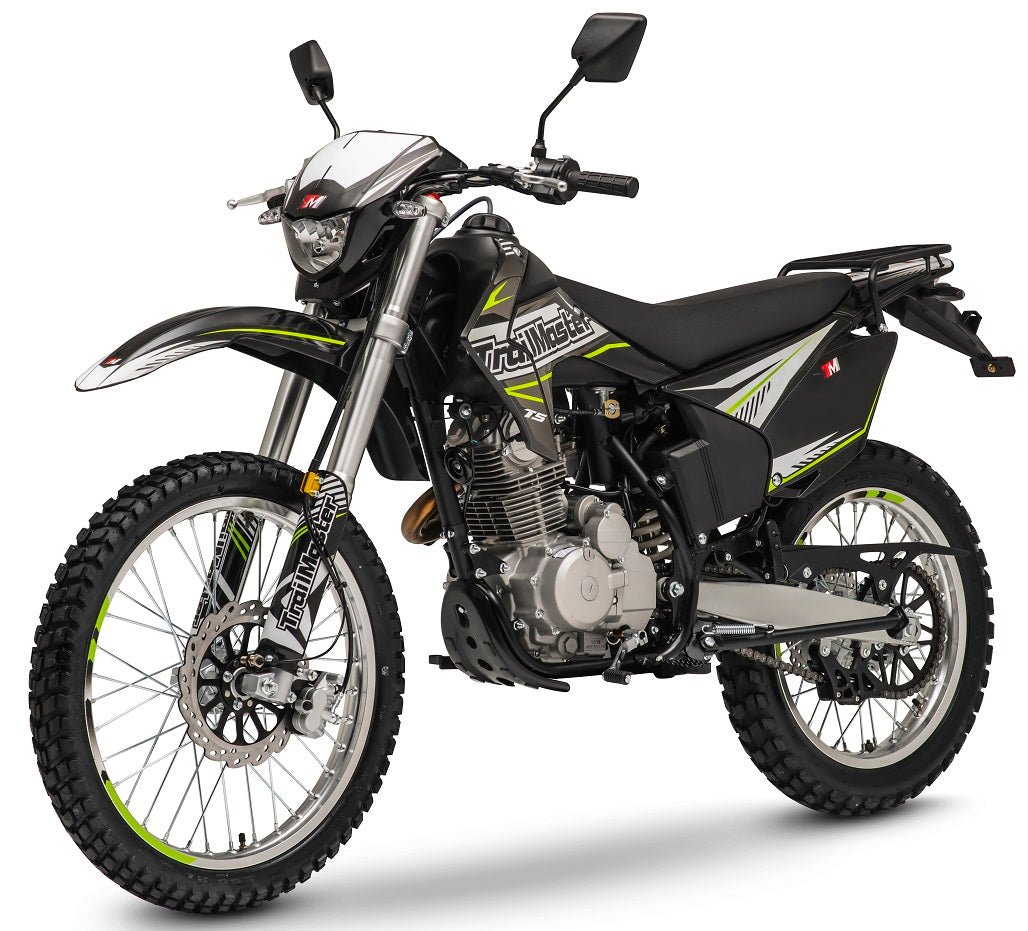

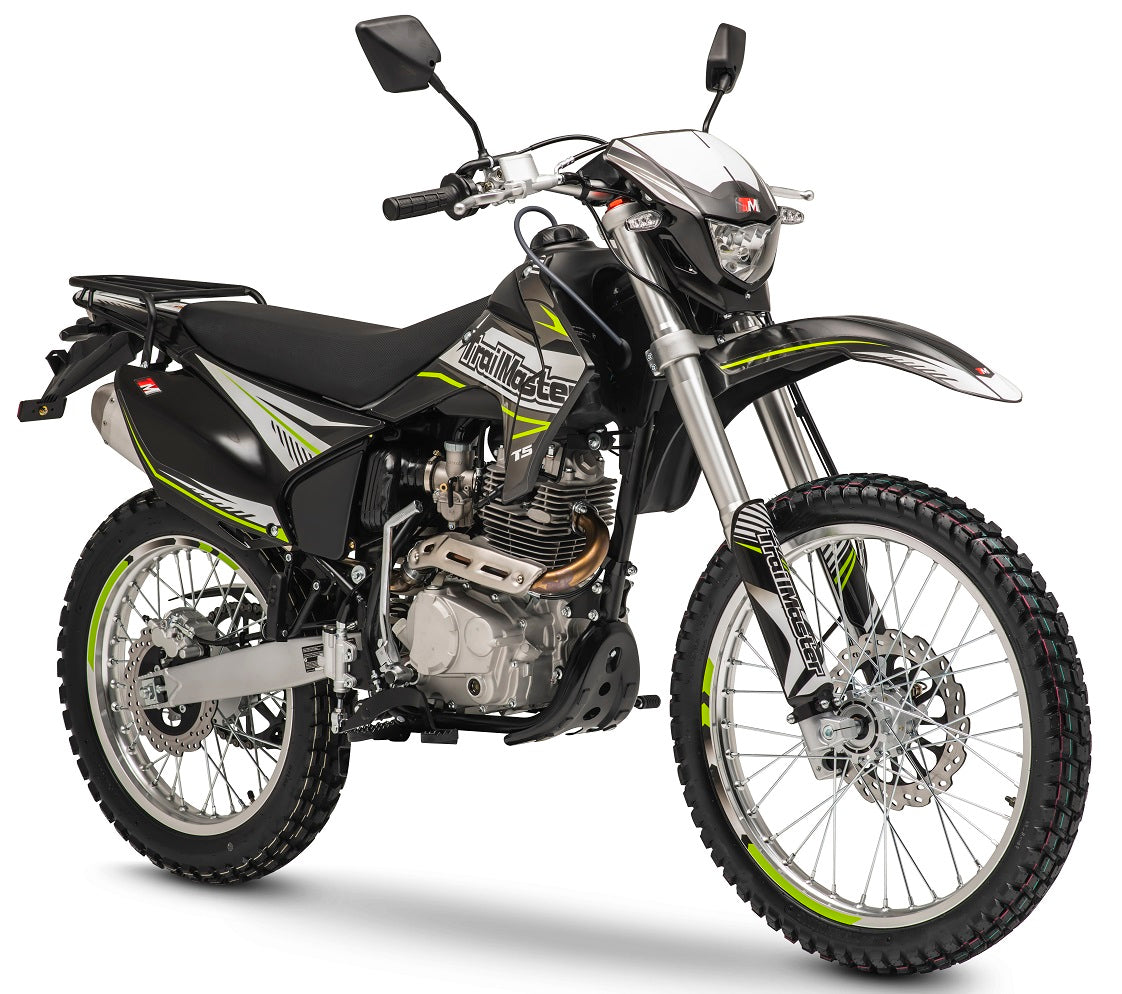

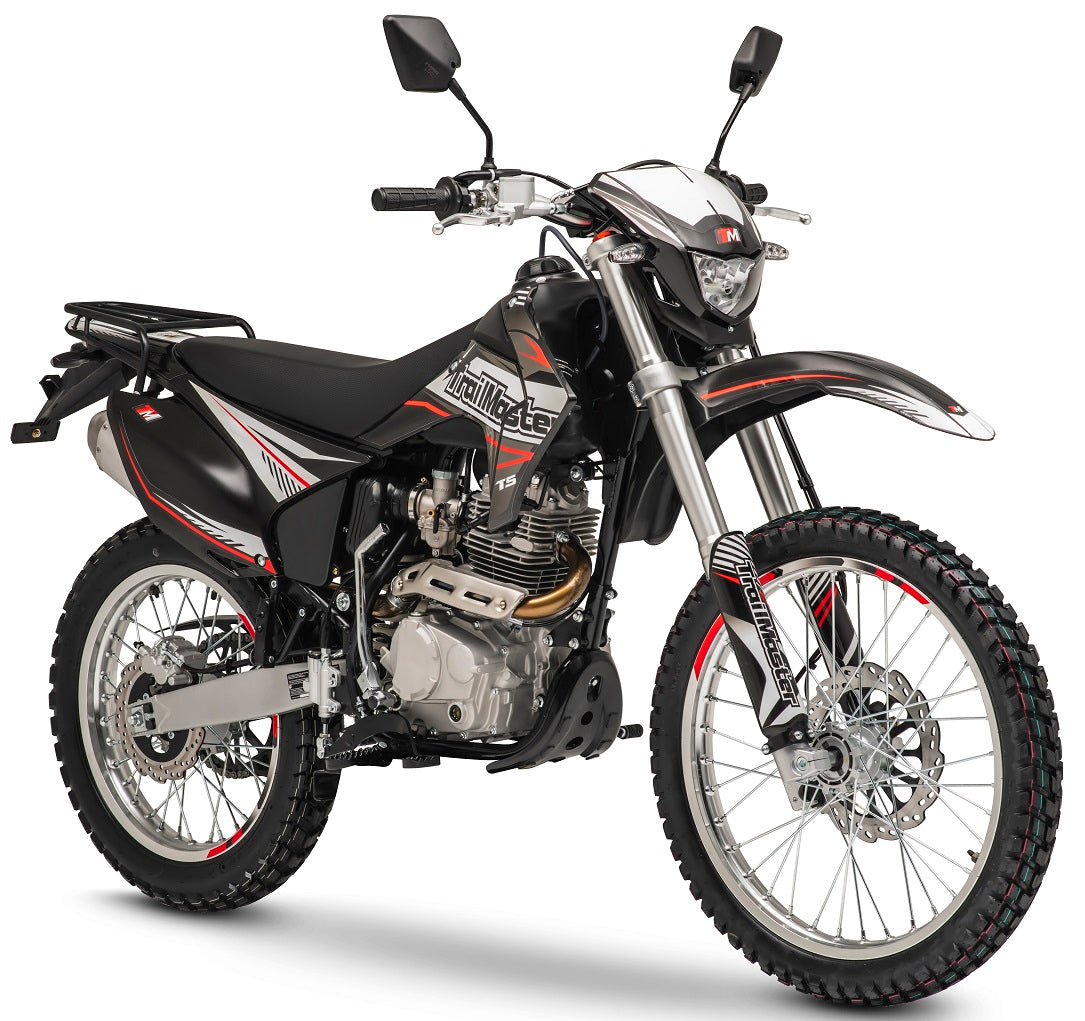

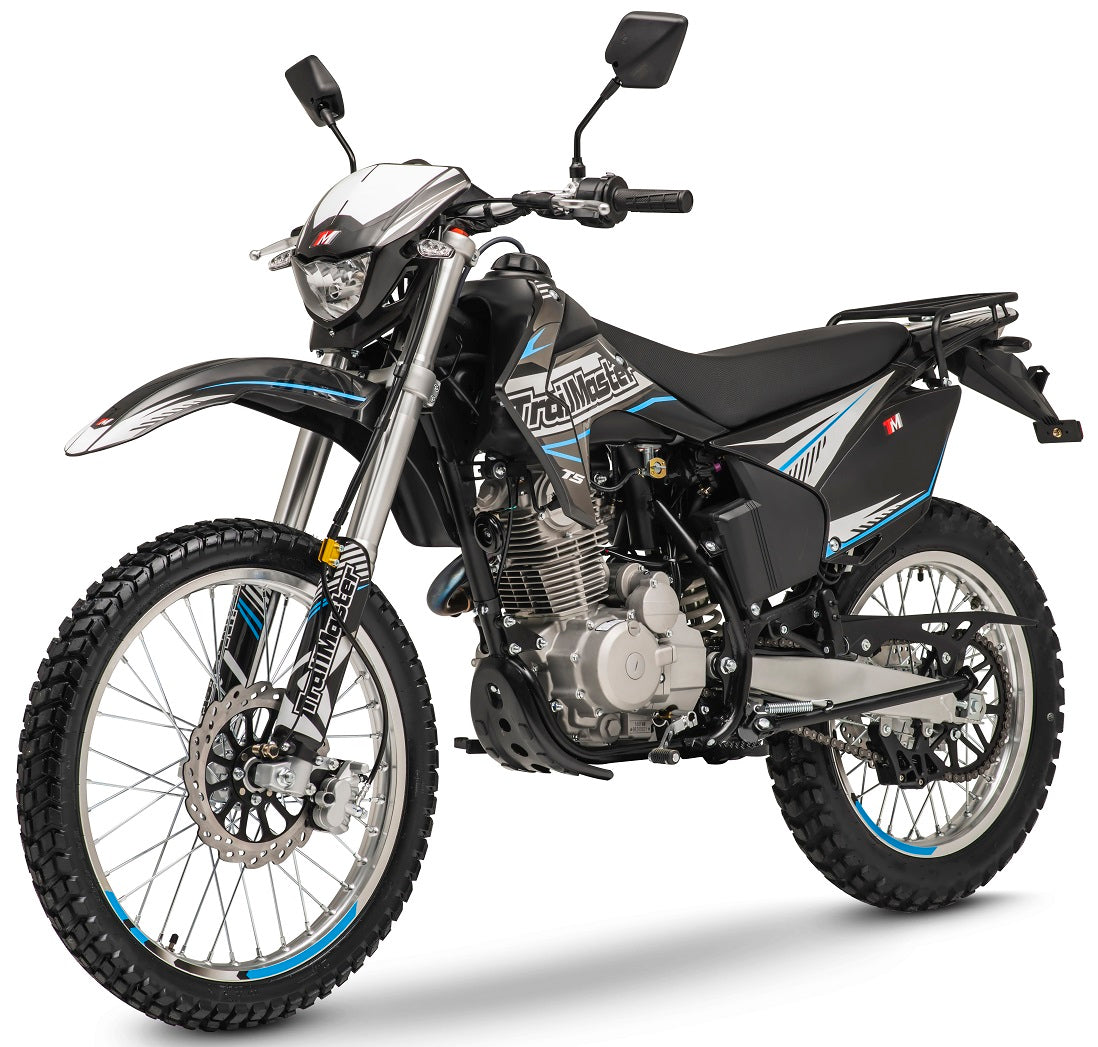

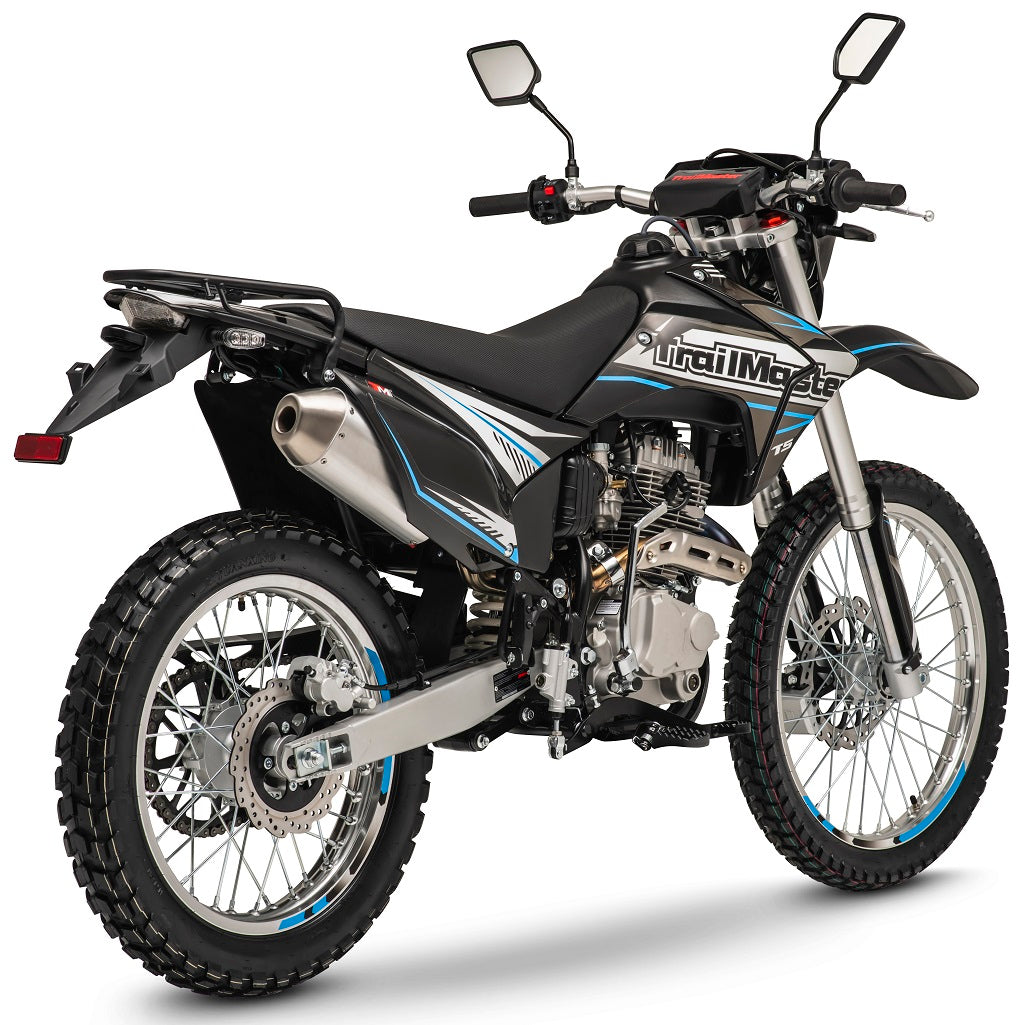

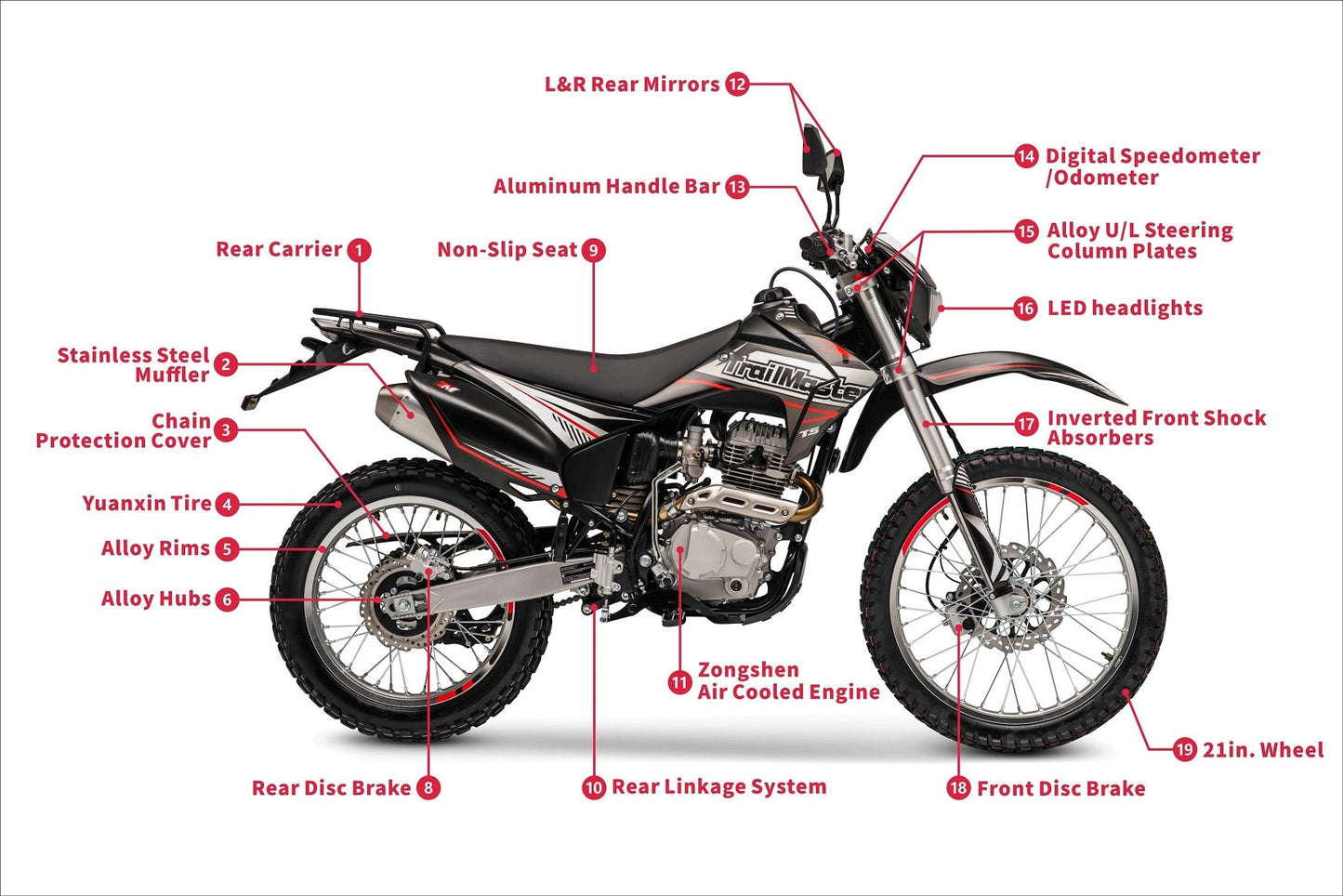

From the perspective of a product expert, Trailmaster proudly presents the all-new T5. This remarkable addition to Trailmaster's dirt bike lineup boasts upgraded performance and a sleek new frame design. Featuring adjustable inverted front forks, electric and kick start options, and a lightweight all steel twin-spar style frame, this bike is ready for any adventure. The outstanding top speed of up to 60 mph is thanks to the Zongshen engine and 5-speed manual transmission. The 21-inch front tire and 19-inch rear tire provide exceptional ground clearance, while the airbag-style shock in the rear suspension ensures a smooth ride. With lightweight aluminum rims for a superior power-to-weight ratio, the T5 outperforms its competitors.

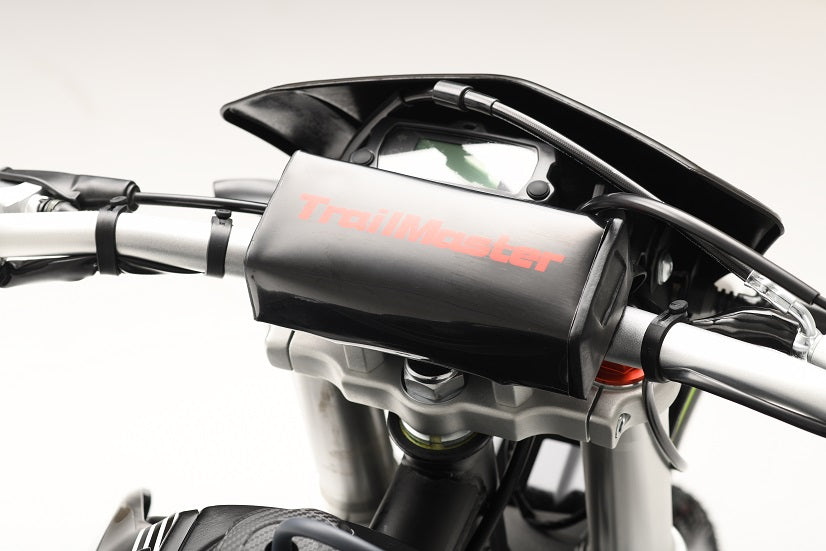

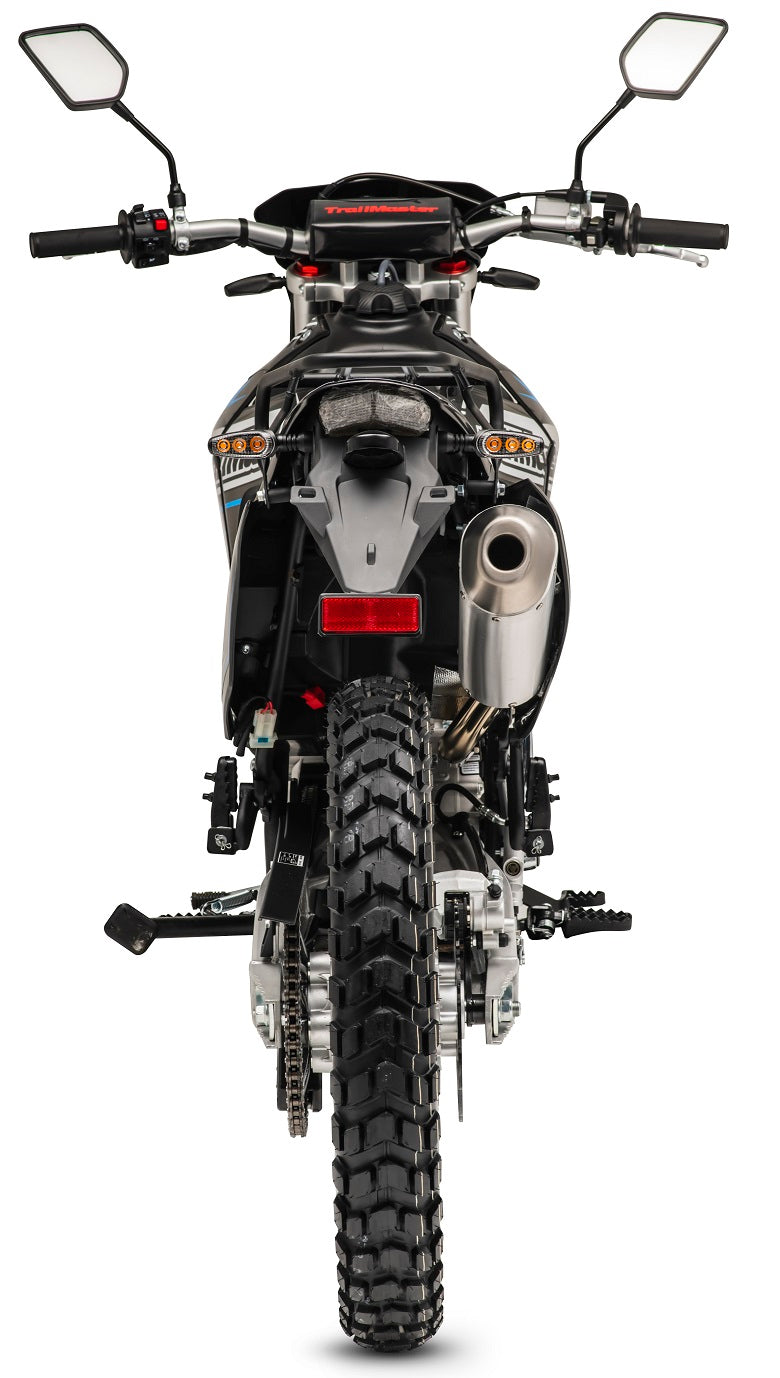

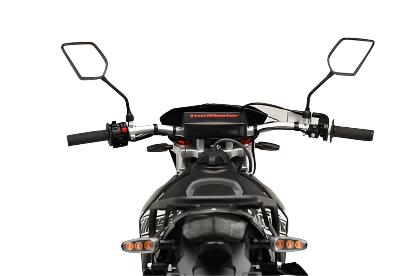

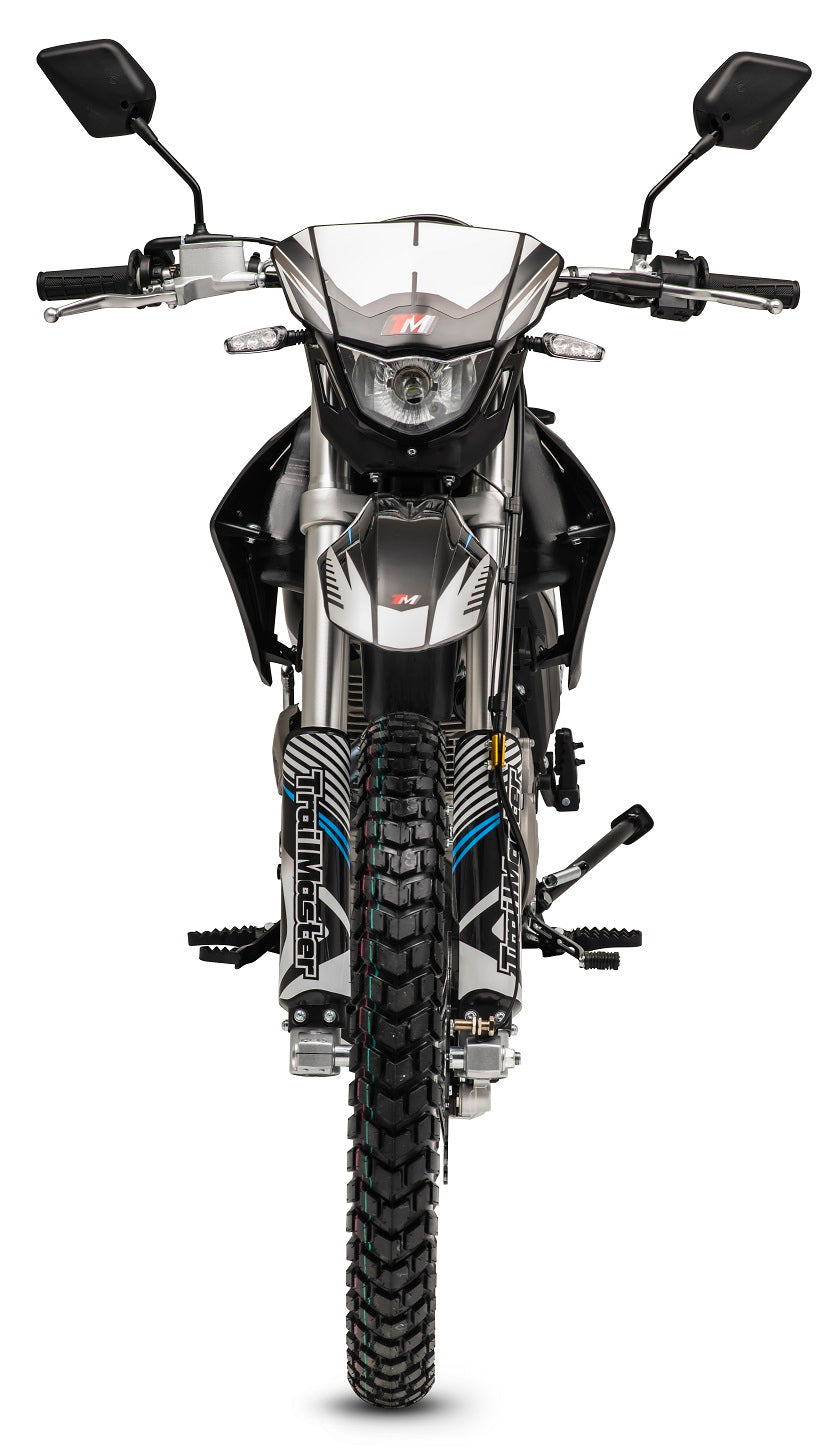

This TrailMaster T5 Dual Sport Dirt Bike features a digital display for easy access to information, as well as an LED headlight for nighttime rides. It also includes blinkers, brake lights, side view mirrors, and a license plate holder, making it compliant with street legal standards in a variety of states.
Specifications
Engine System
|
| Engine Type
|
Zongshen CB250D-G,Single cylinder, four-stroke |
| Displacement (ML) |
223cc |
| Max Power(Kw/r/min）
|
12.00/7000（1±1.5%） |
| Max Torque(N.m/r/min）
|
17.50/5500（1±1.5%） |
| Max. Load Capacity (kg)
|
150 |
| Max. Speed |
57 M/H |
| Compression Ratio
|
9.6：1 |
| Shift Type
|
International five gears |
| Start Type
|
Electric / Kick Start |
| Ignition
|
CDI |
| Min. Fuel Consumption:
|
≤354(g/（kW·h) |
| Minimum turning radius:
|
2600mm |
| Lubricant Type：
|
SF 15W/40 |
| Chain:
|
520 CHOCHO |
| Transmission:
|
Chain Drive |
Size Data
|
| Overall Size (L x W x H)
|
2100mm*810mm*1180mm / 82.74 * 31.91* 46.49 Inch |
| Wheel Base
|
1400 mm / 55.16 Inch |
| Seat Height
|
890 mm / 35.07 Inch |
| Ground Clearance
|
290 mm / 11.43 Inch |
| Fuel Capacity
|
2 Gal/9L |
| Rims
|
Aluminium
|
| Hubs |
Aluminium
|
| Tires
|
YUANXING FT: 80/100-21 - RR: 110/100-18 |
Frame/Suspension/Brakes
|
| Frame
|
High quality Steel Frame |
| Front Fork
|
Inverted front shock absorber, 48/51-800mm |
| Rear Shock
|
Built-in airbag rear shock absorber |
| Upper and Lower Connecting Board
|
Aluminium alloy |
| Handle bar
|
Aluminium alloy Reducing Handle Bar |
| Front Brake
|
Disc 252mm |
| Rear Brake
|
Disc 220mm |
| Exhaust
|
Stainless Steel |
Packing and Loading
|
| Packing Size
|
70.92*18.12*34.78 Inch/ 1800*460*870 mm
|
| N.W/LBS
|
118.00 KGS / 259.6 LBS |
| G.W/LBS
|
140.00 KGS / 308.00 LBS |
