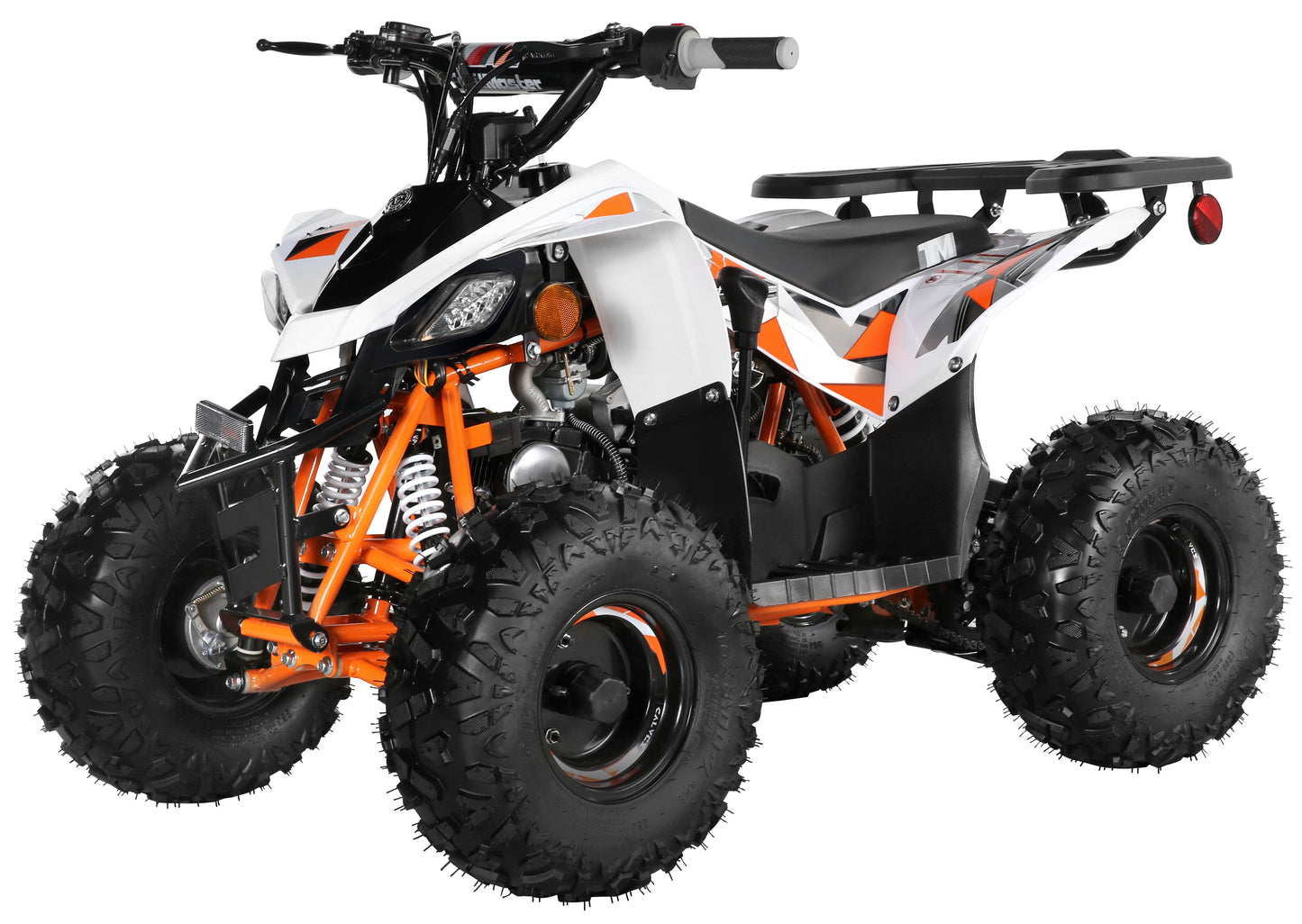

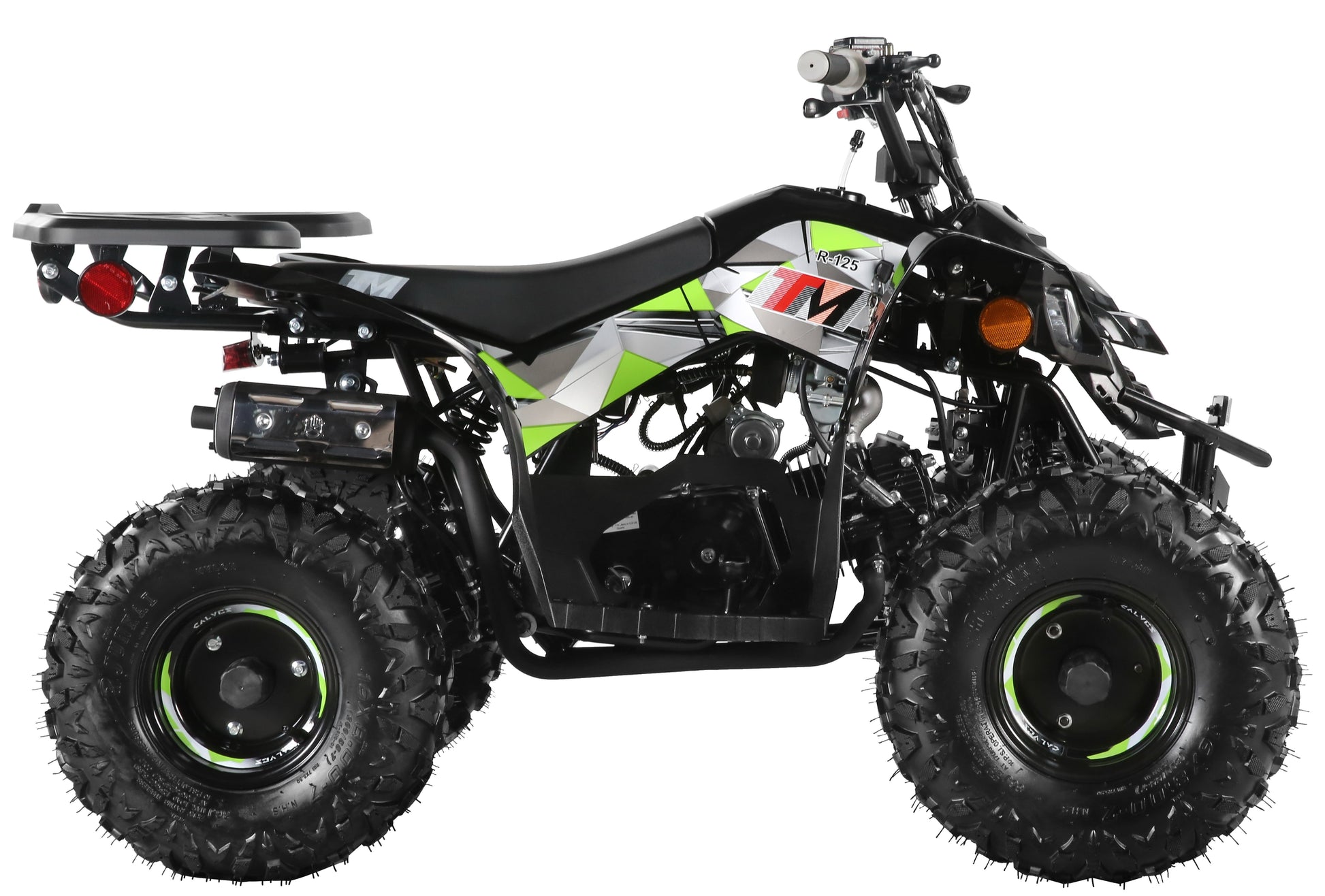

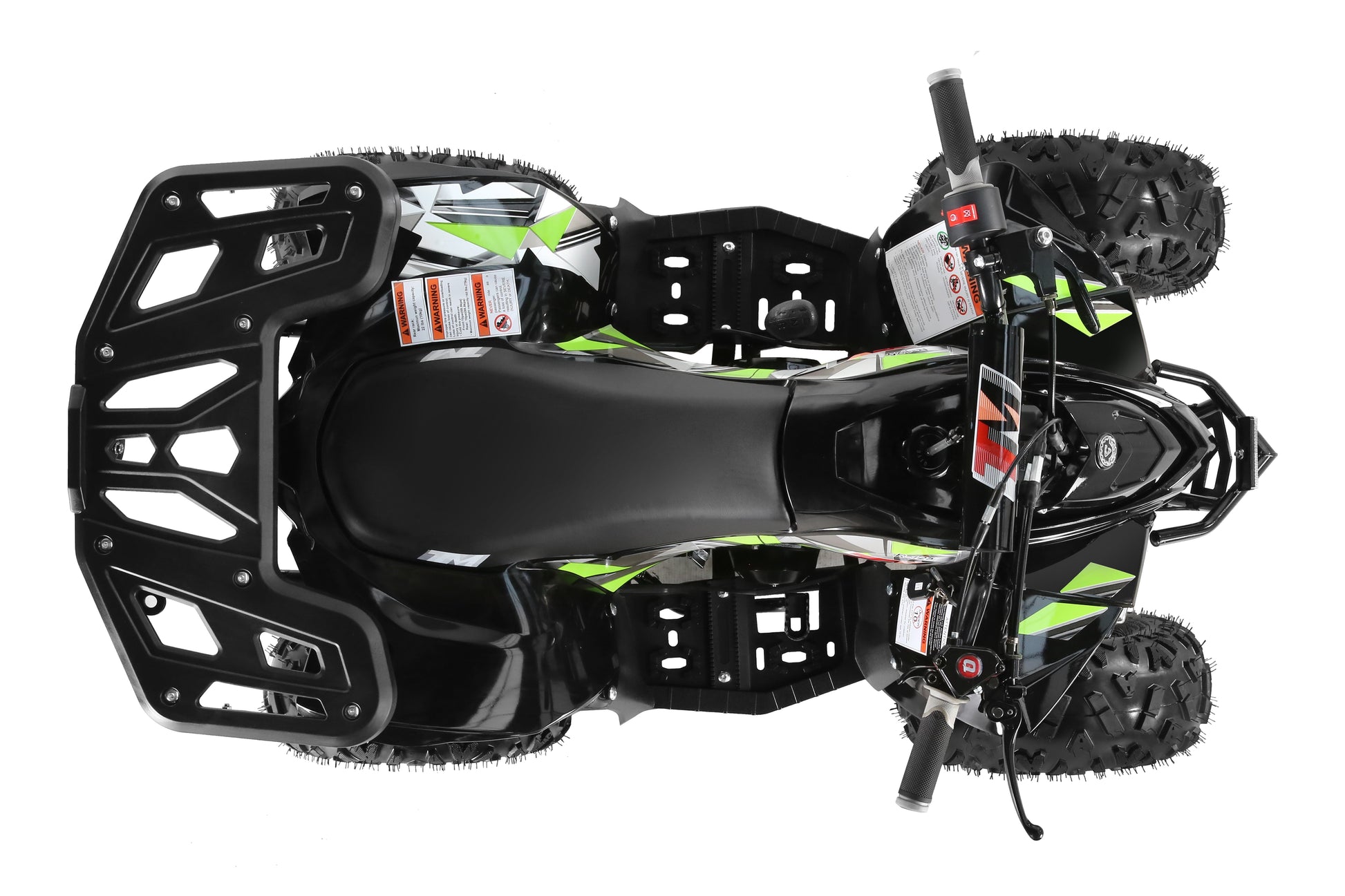

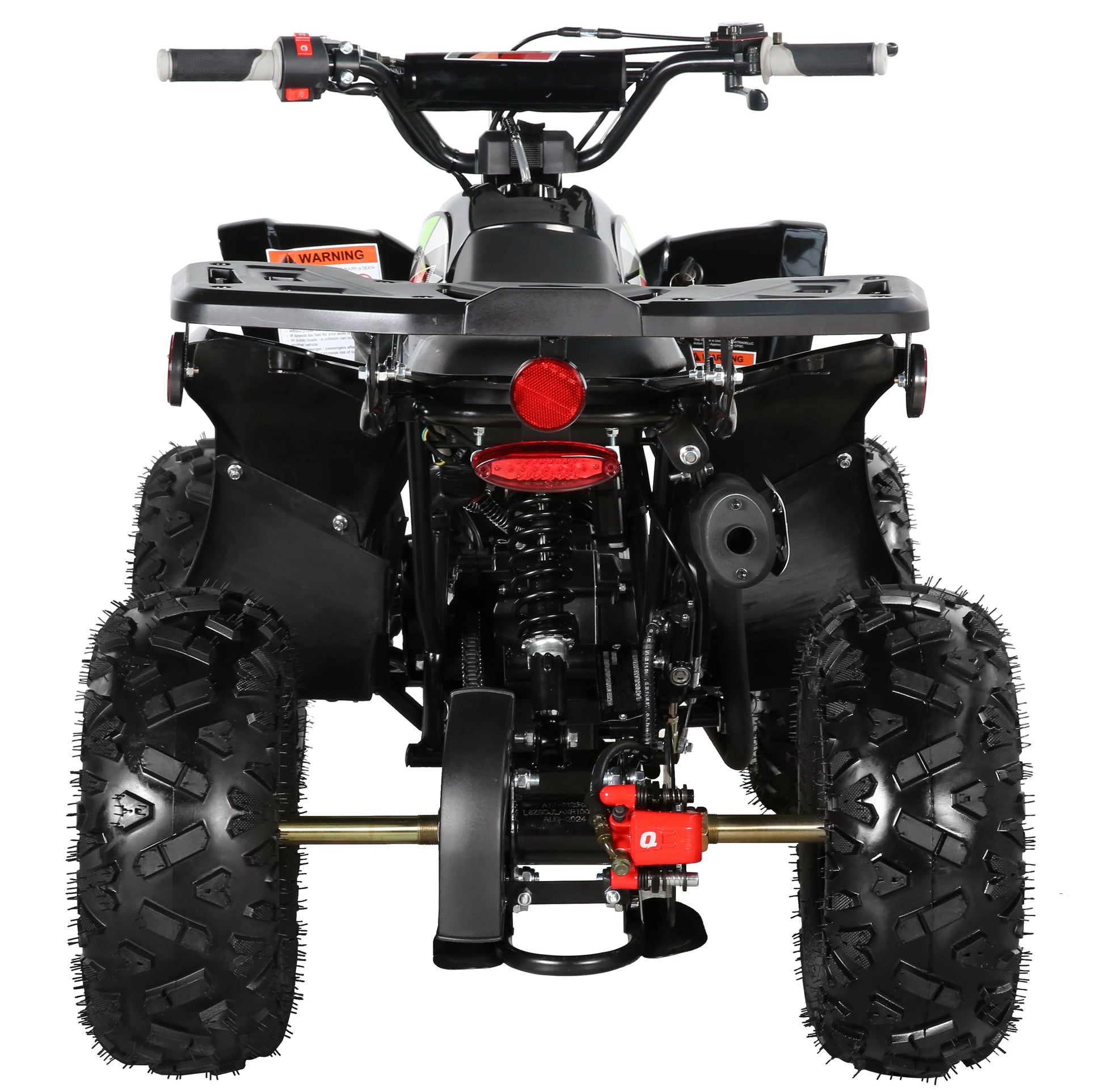

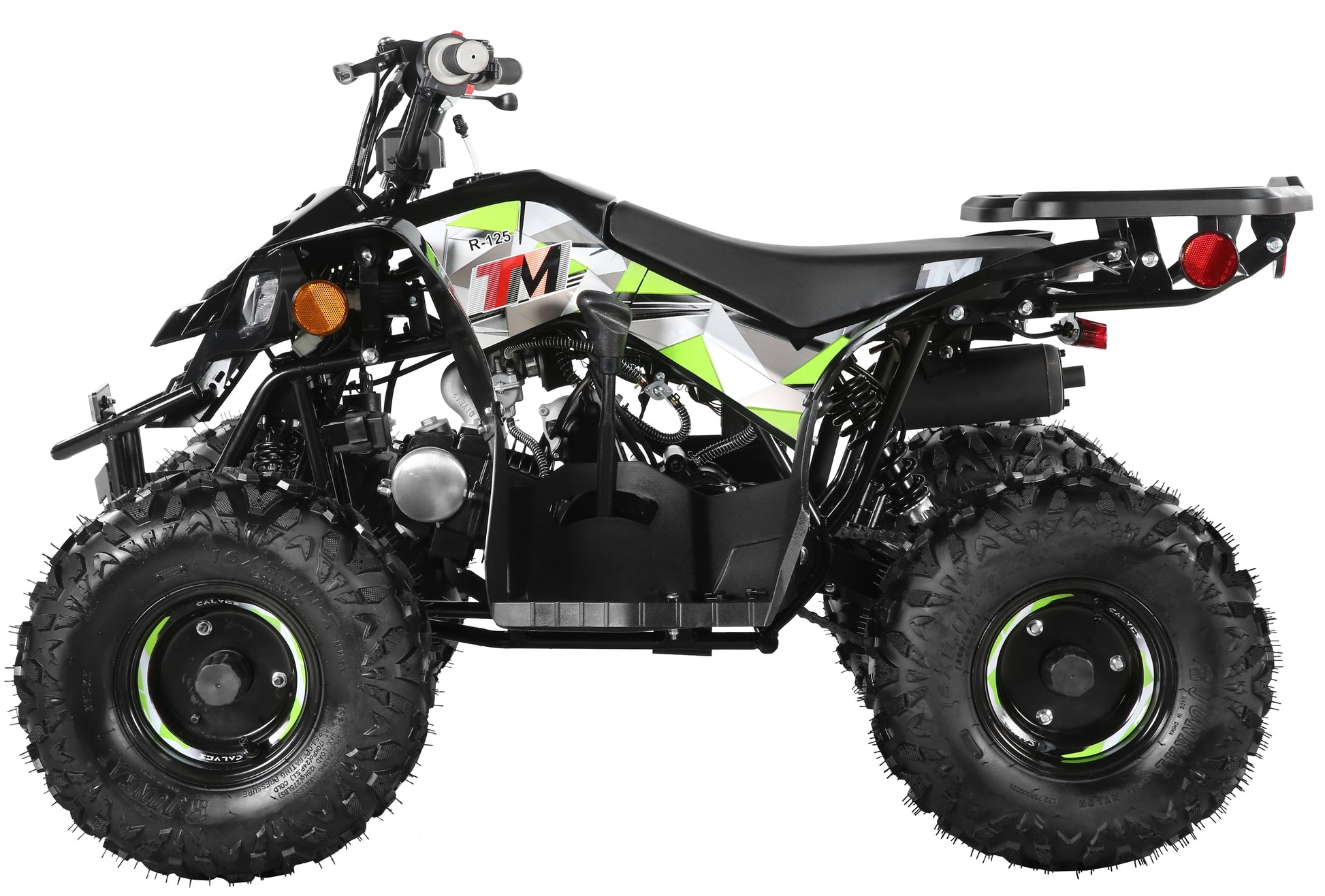

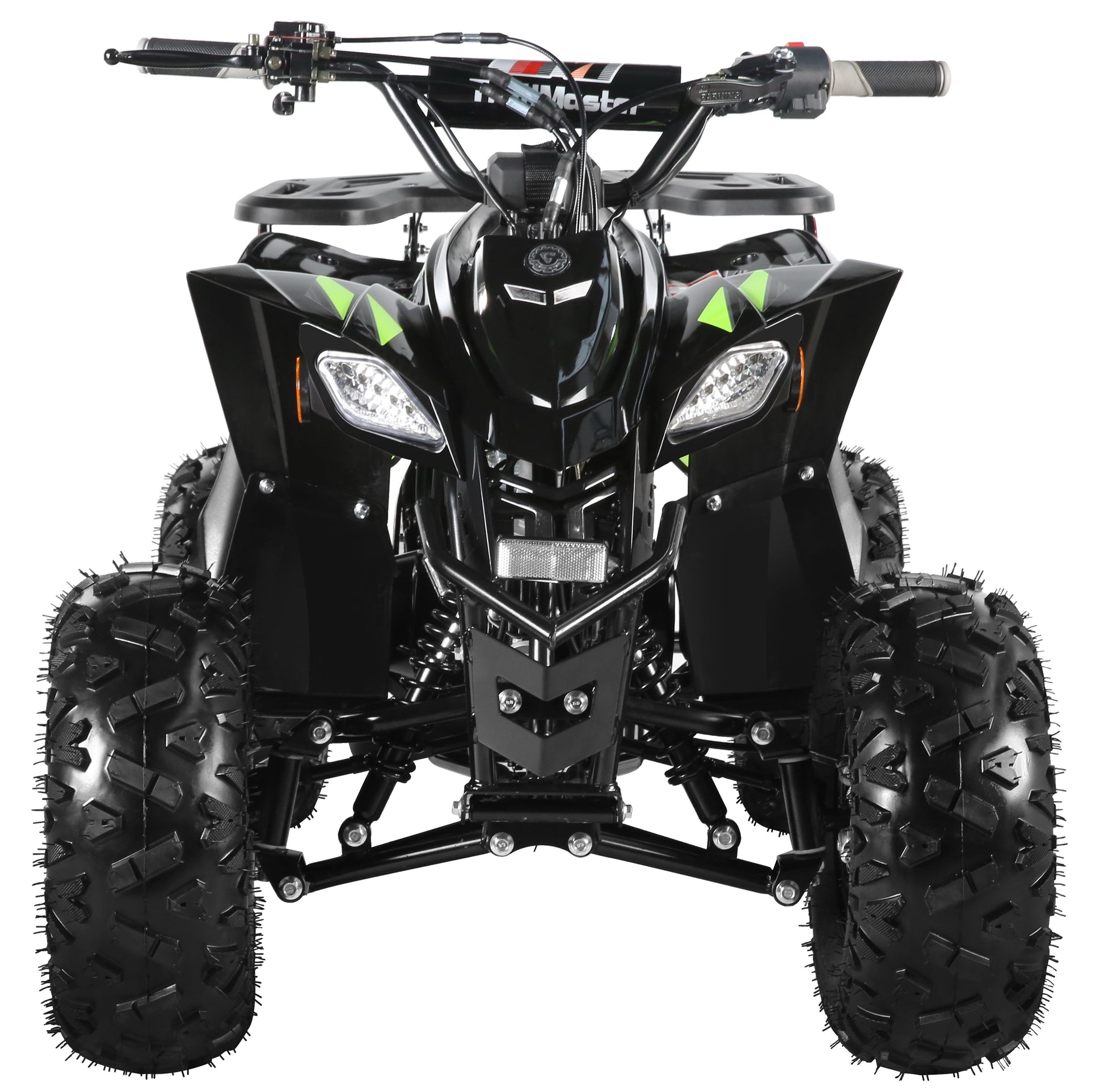

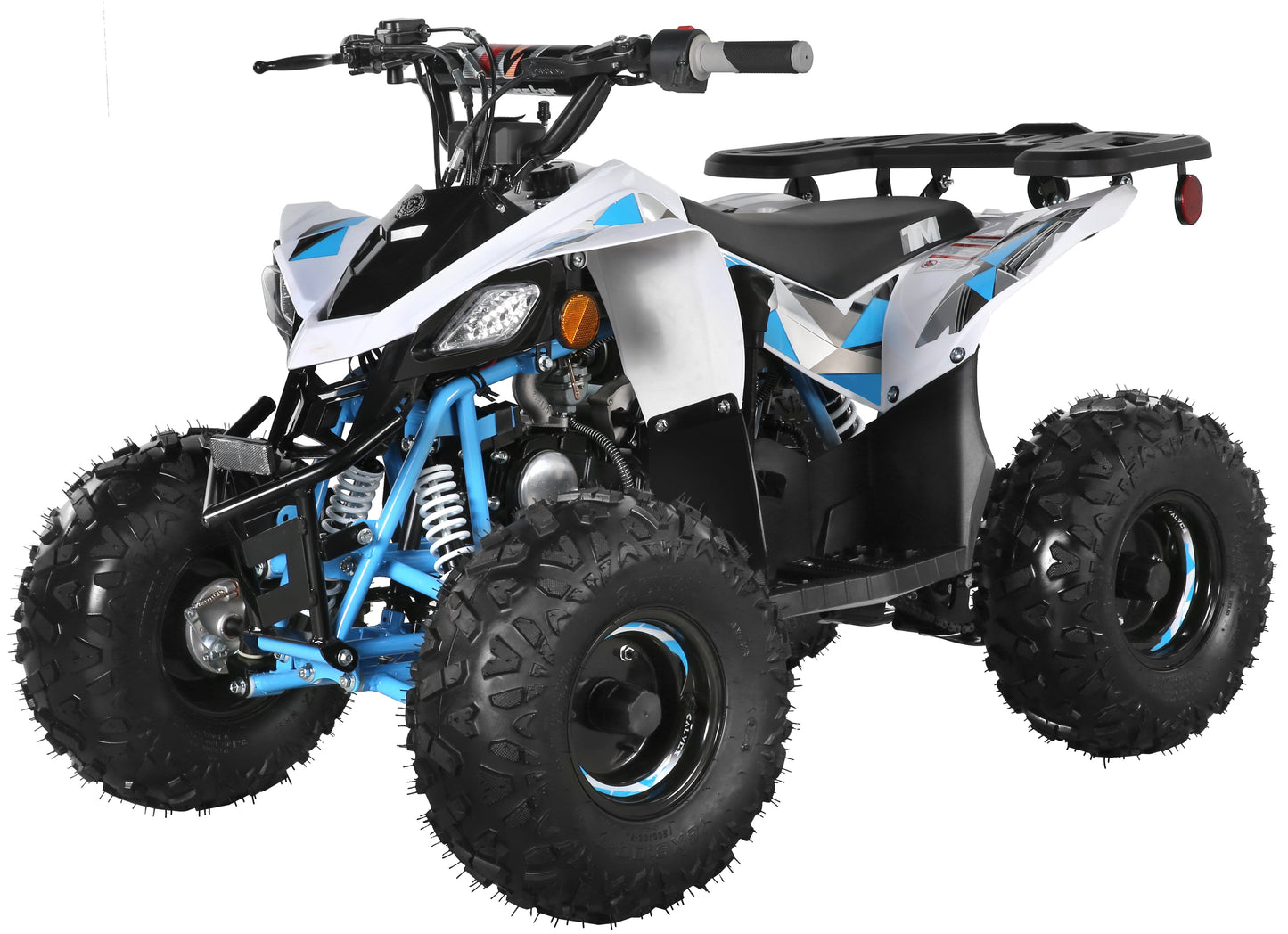

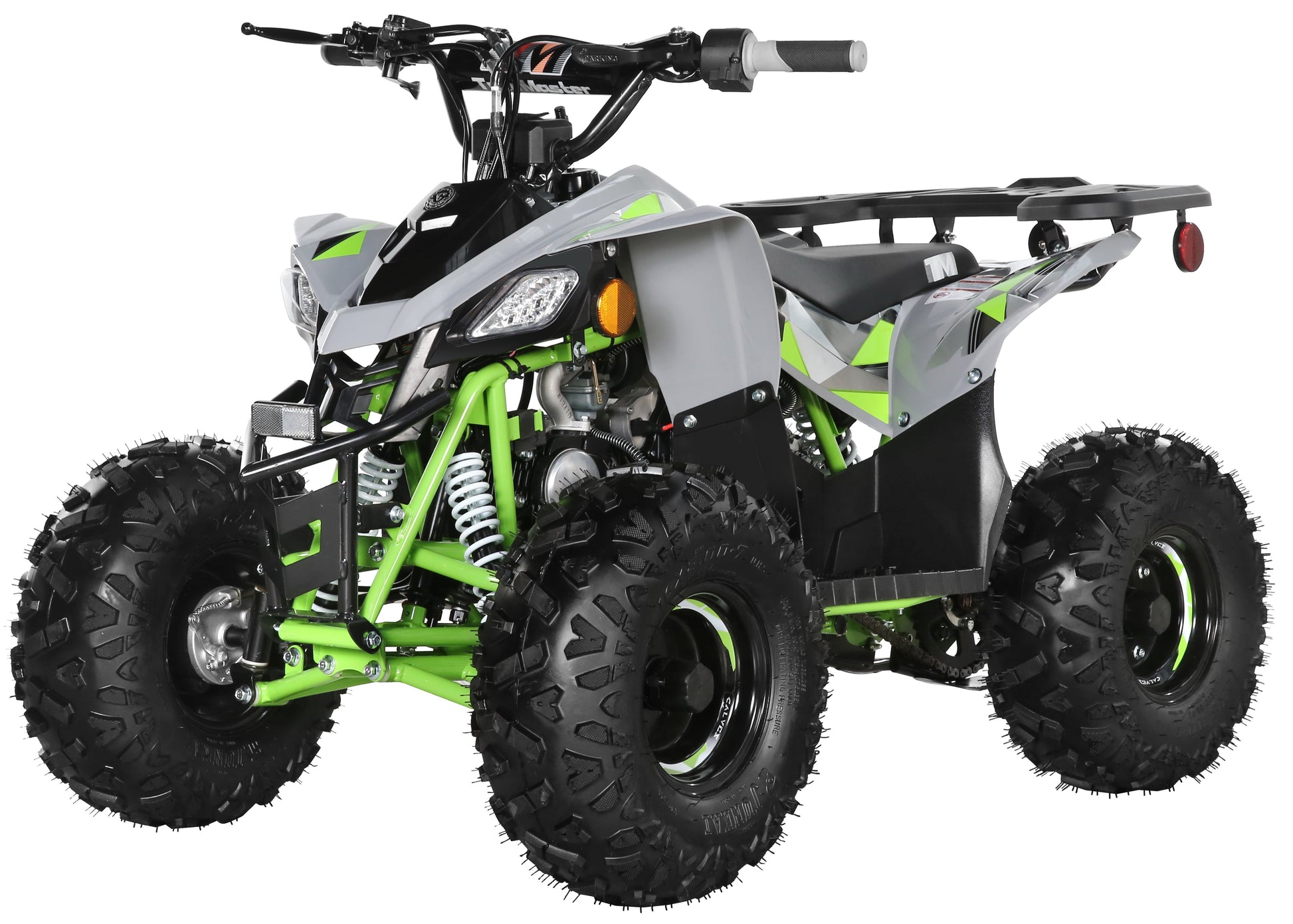

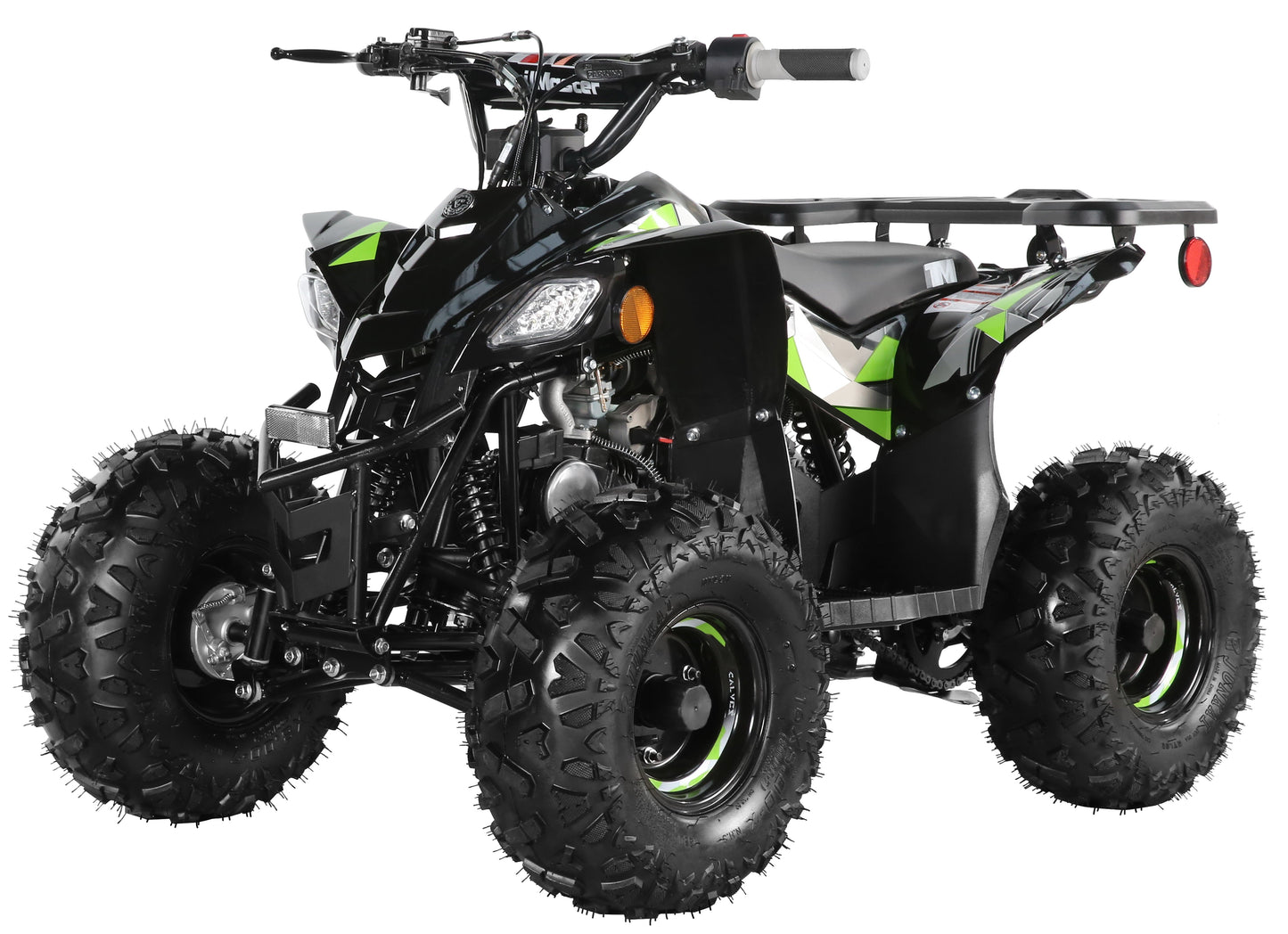

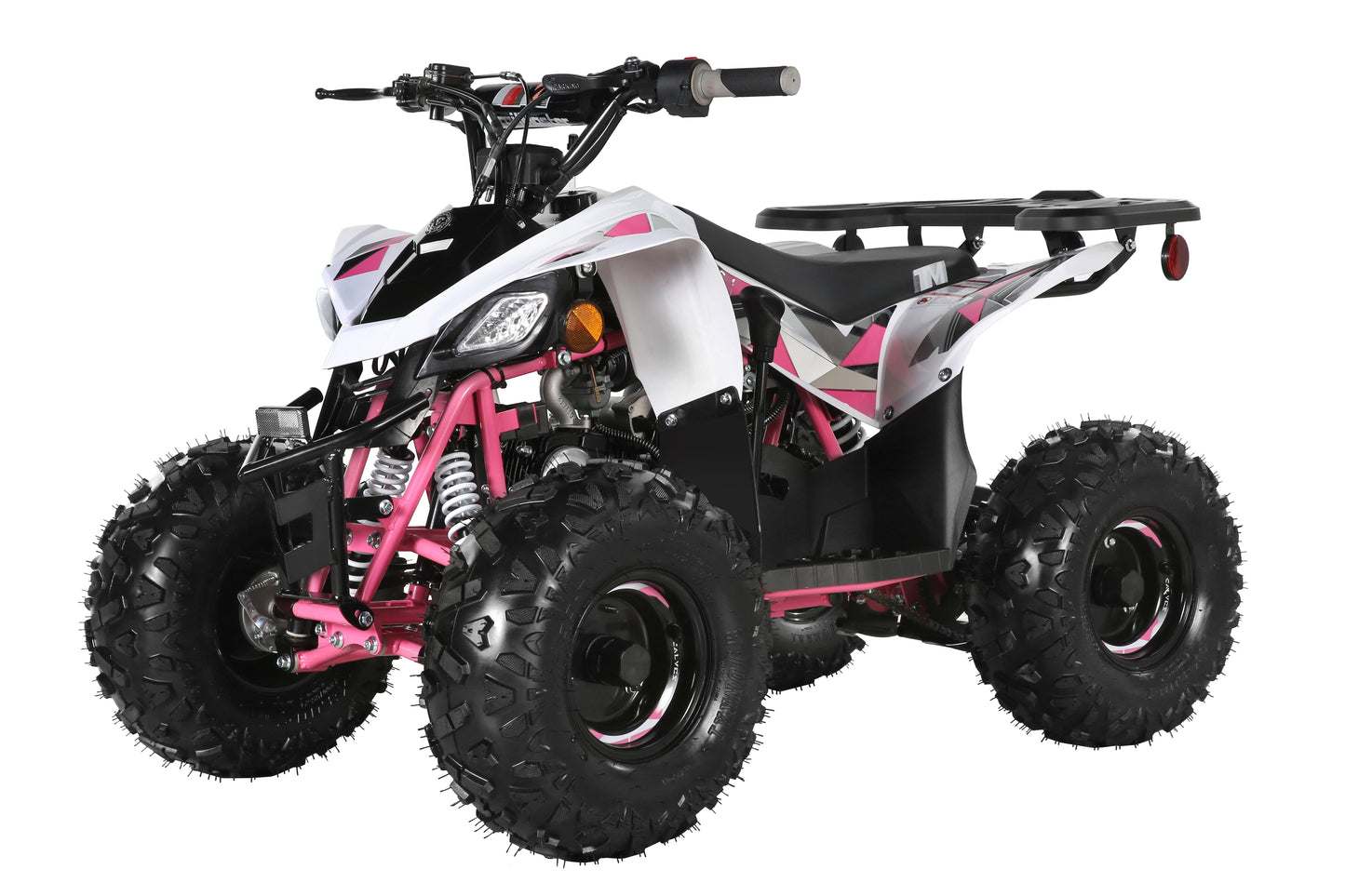

Discover the exceptional quality and meticulous design of the R125Mid-Size 125cc Utility ATV, perfect for children. Boasting all the impressive features of expensive name brand ATVs, this R125U model includes front and rear hydraulic disc brakes, a full suspension, a powerful 125cc, 4-stroke engine with CDI ignition and electric start, as well as a rear rack and front and rear lighting. With an easy access foot shifter, the automatic transmission allows for smooth maneuvering between forward, neutral, and reverse. Complete with a tough chain drive and aggressive all-terrain tires, this sporty kids ATV is a must-have.
Specifications
| Feature |
Specification |
| Engine Info |
| Engine Type |
125cc, 4-stroke, air-cooled, single cylinder |
| Displacement |
120 cc |
| Max Horsepower |
5.3 kW @ 8000 rpm |
| Bore x Stroke |
52.4 x 55.5 mm |
| Max Speed |
29 mph |
| Ignition |
CDI |
| Starting System |
Electric start |
| Engine Oil |
SAE 15W/40 |
| Battery |
12V, 5Ah |
| Chassis |
| Transmission |
Automatic with Reverse |
| Final Drive |
Chain |
| Driving Wheel |
Rear wheel drive |
| Front Suspension |
Double A-arm |
| Rear Suspension |
Solid axle |
| Brakes |
Front: Drum brake / Rear: Disc brake |
| Tires (Front/Rear) |
16 x 8 - 7 / 16 x 8 - 7 |
| Fuel Capacity |
2.06 L |
| Net Weight |
160.5 lbs |
| Gross Weight |
226.2 lbs |
| Max Load |
143 lbs |
| Dimensions |
| Wheelbase |
33.46 inches |
| Overall Size (L x W x H) |
53 x 31 x 35 inches |
| Seat Height |
23.62 inches |
| Minimum Ground Clearance |
3.35 inches |
| Packing Size |
54 x 32 x 30 inches |
|
Free Online Safety Course
The ATV Safety Institute recommends that all ATV riders take a training course
Recommended Age 9-12
WARNING: Persons under the age of 16 must be competently supervised by an adult
