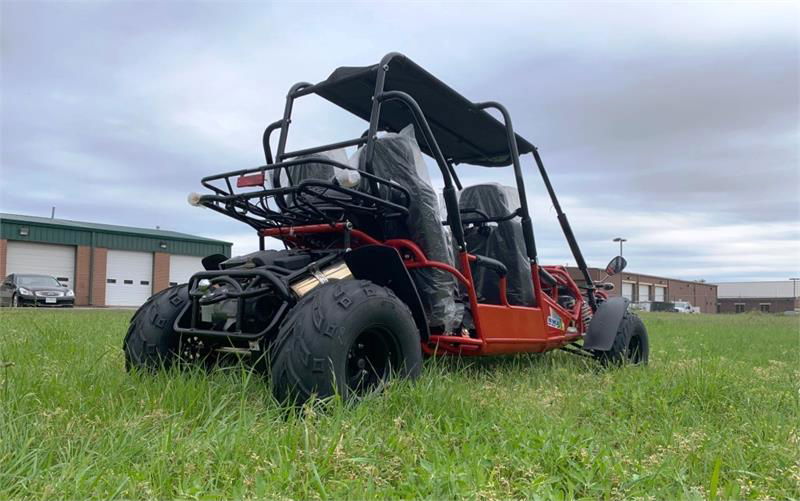

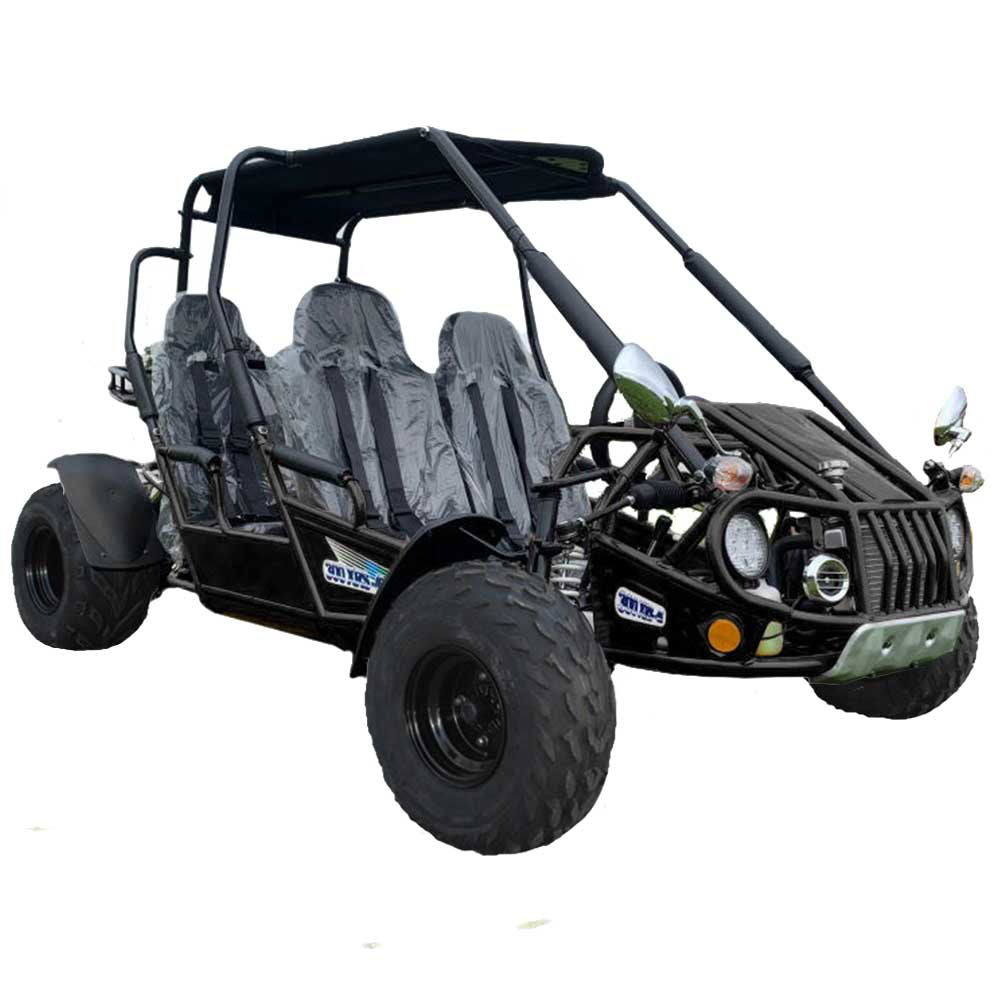

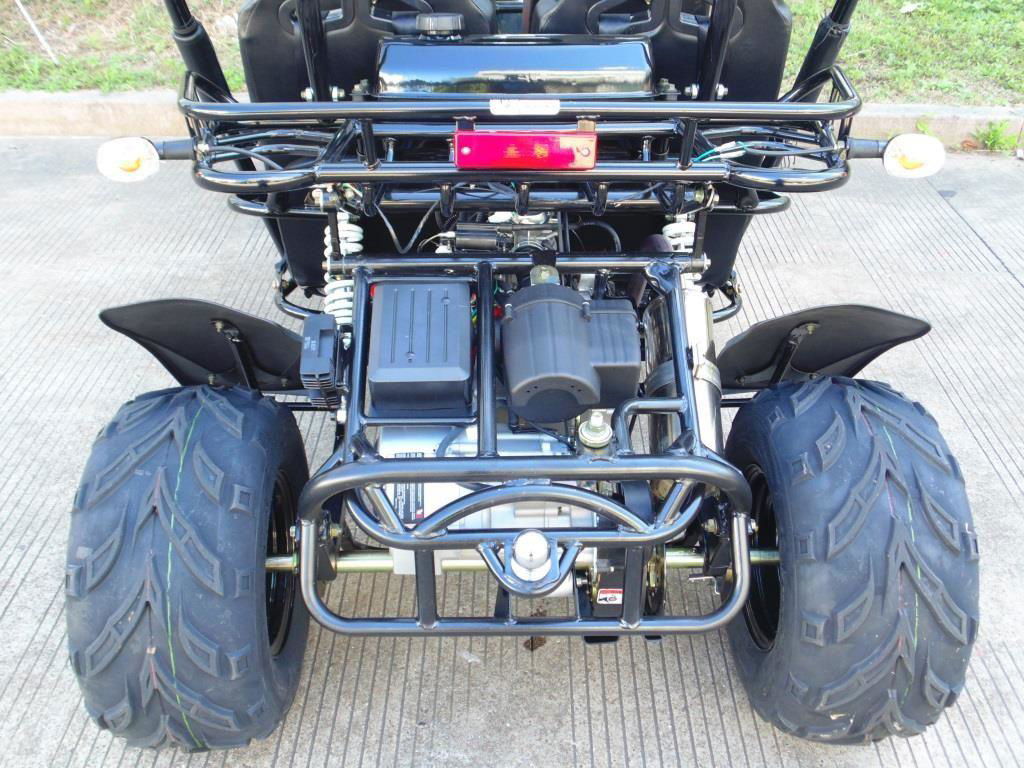

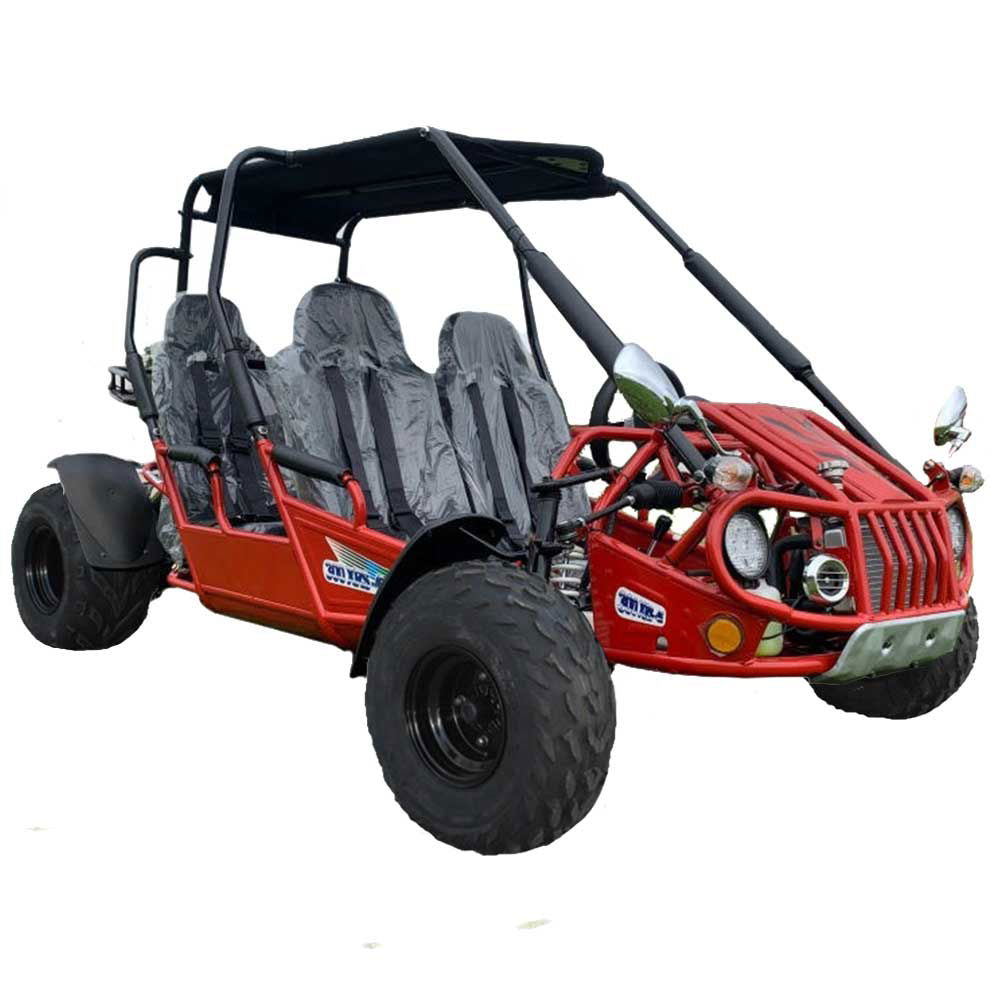

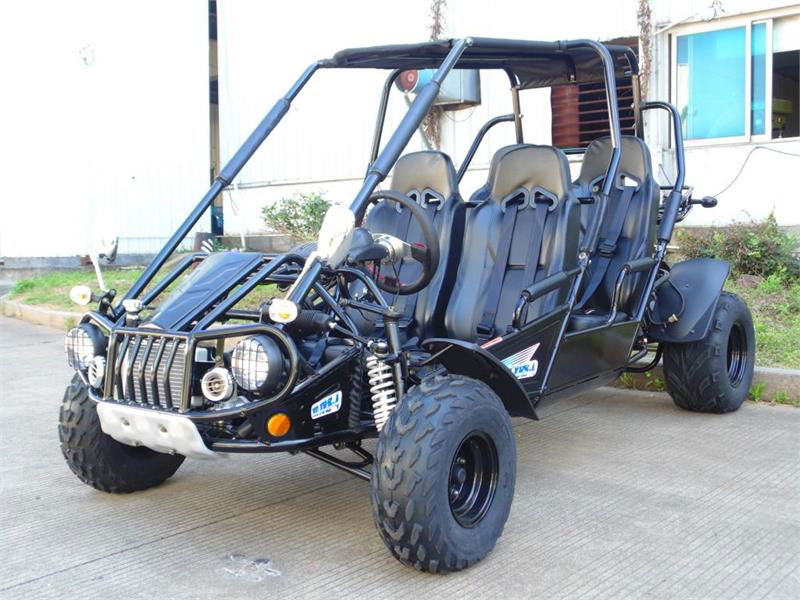

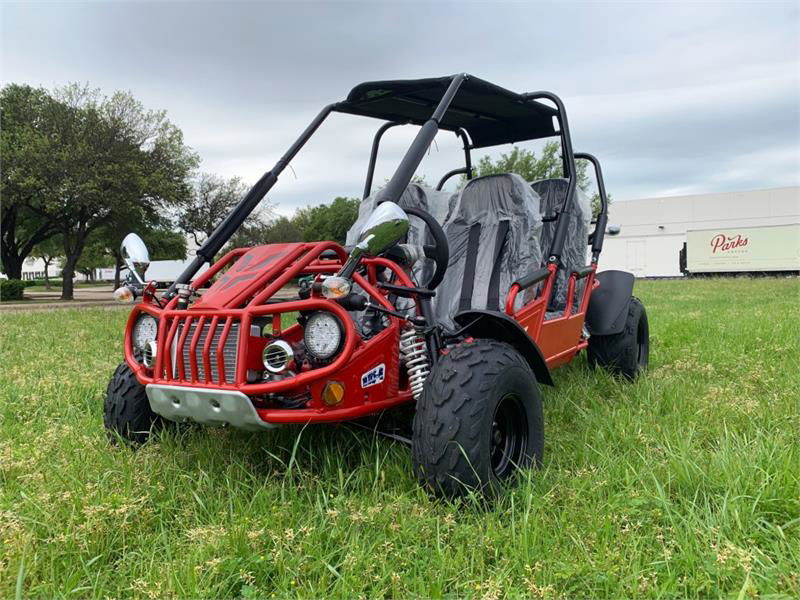

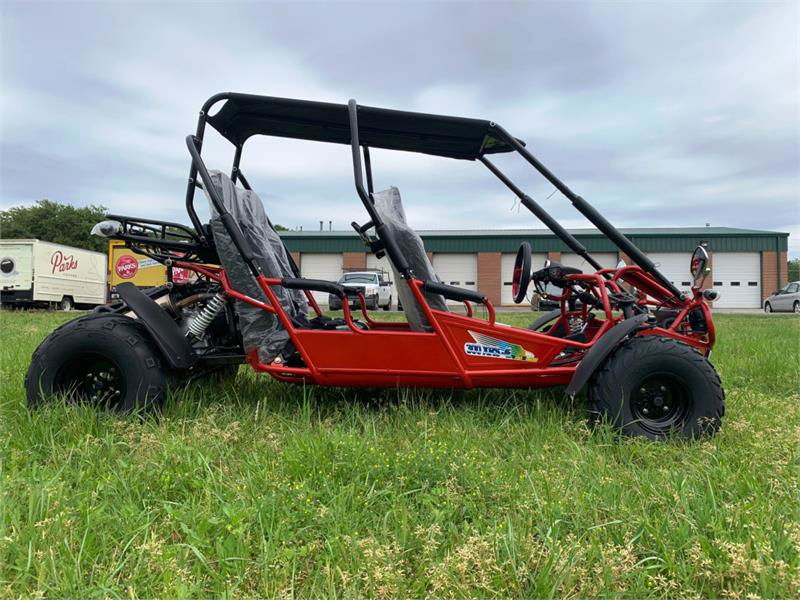

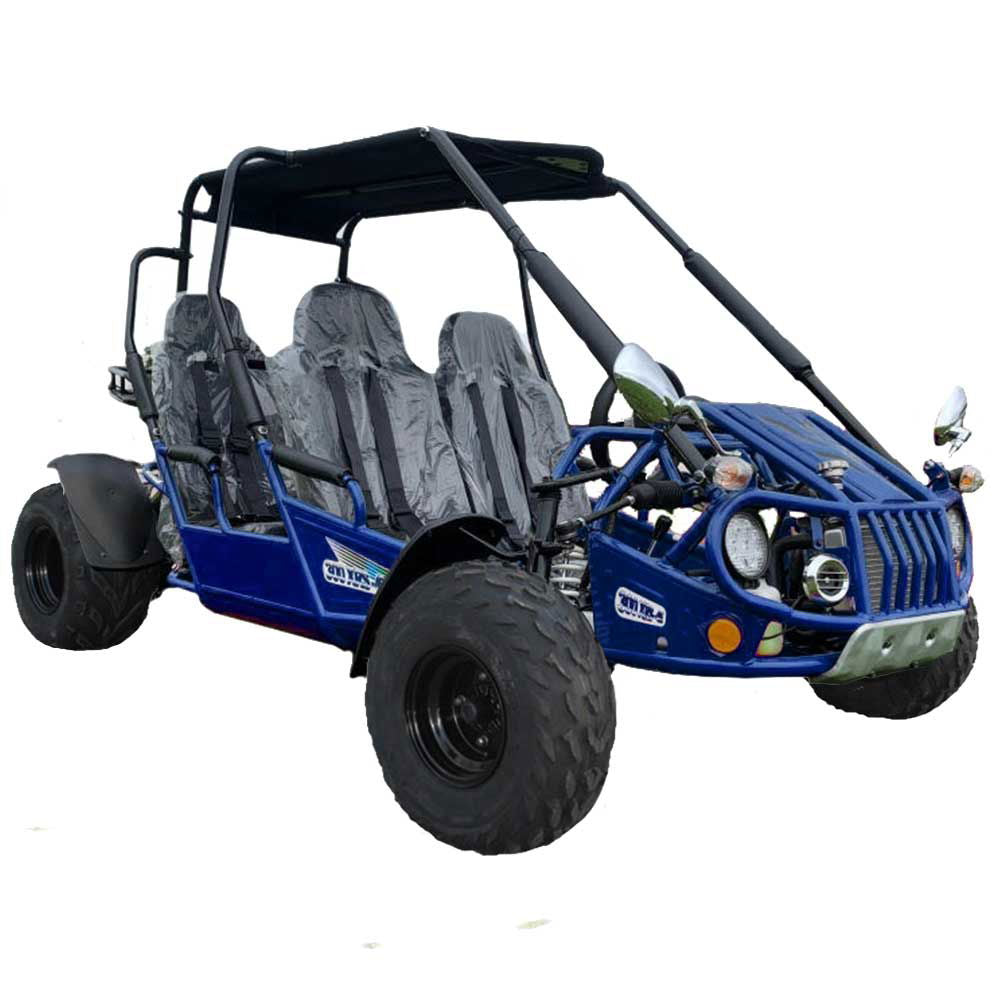

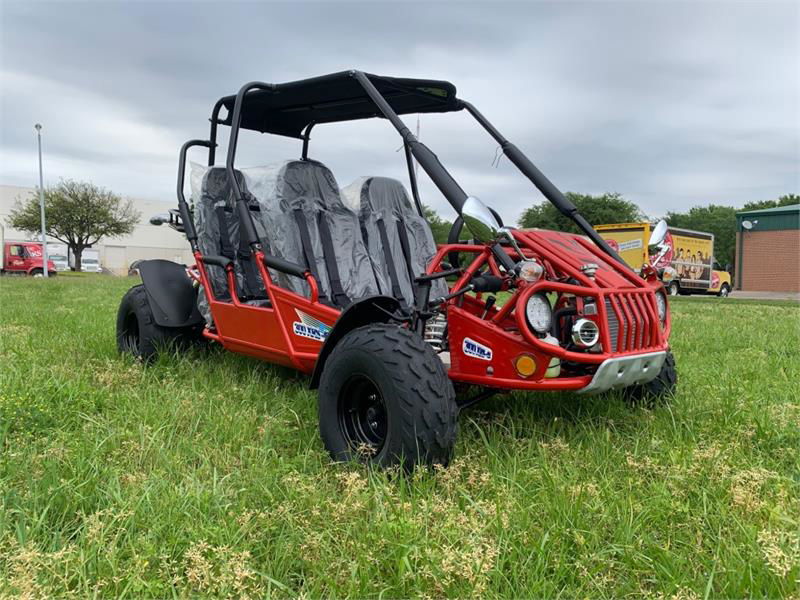

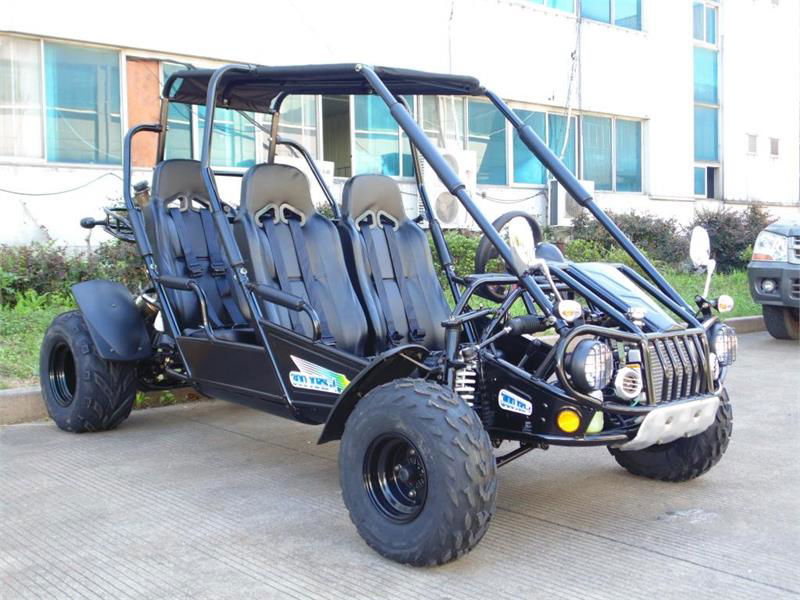

The TrailMaster 300-XRS4E is an impressive 4-seater go kart, powered by an 18 HP 300cc CVT fully automatic liquid-cooled engine with the convenience of EFI. This powertrain provides an extra boost in torque and fuel efficiency compared to conventional 150cc engines. Plus, the EFI system makes it easier to start the vehicle in cold weather and at high altitudes. Enjoy a powerful and reliable go-karting experience with the 300-XRS4E.
The 300-XRS4E Buggy Go Kart is built for heavy duty applications and can accommodate up to 800 lbs of load. Its adjustable driver and passenger seats can fit up to 6'2"-tall people and are separated by a 26" distance. Its 20" x 7-8" and 21" x 10-10" tires ensure powerful acceleration to carry four passengers.
Features
- 18 HP Powerful 300cc CVT fully automatic with reverse engine, Liquid cool
- EFI operates under any weather and at any altitude
- Heavy duty frame, net weight 608lbs, max load 800 lbs, adult size 4-seat go kart
- New gear ratio set up offers maximum low-end torque
- Digital speedometer/odometer
- Stainless steel performance muffler
- Five-point safety seatbelt

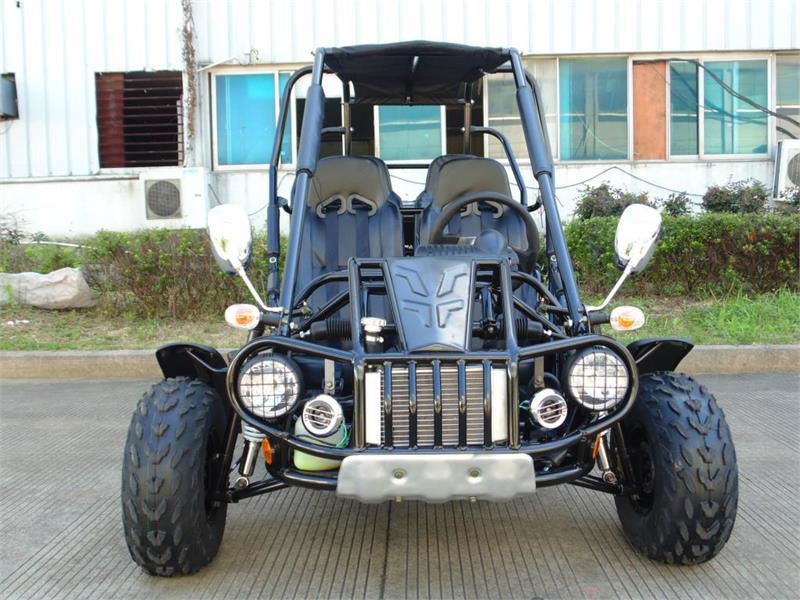

- LED headlight

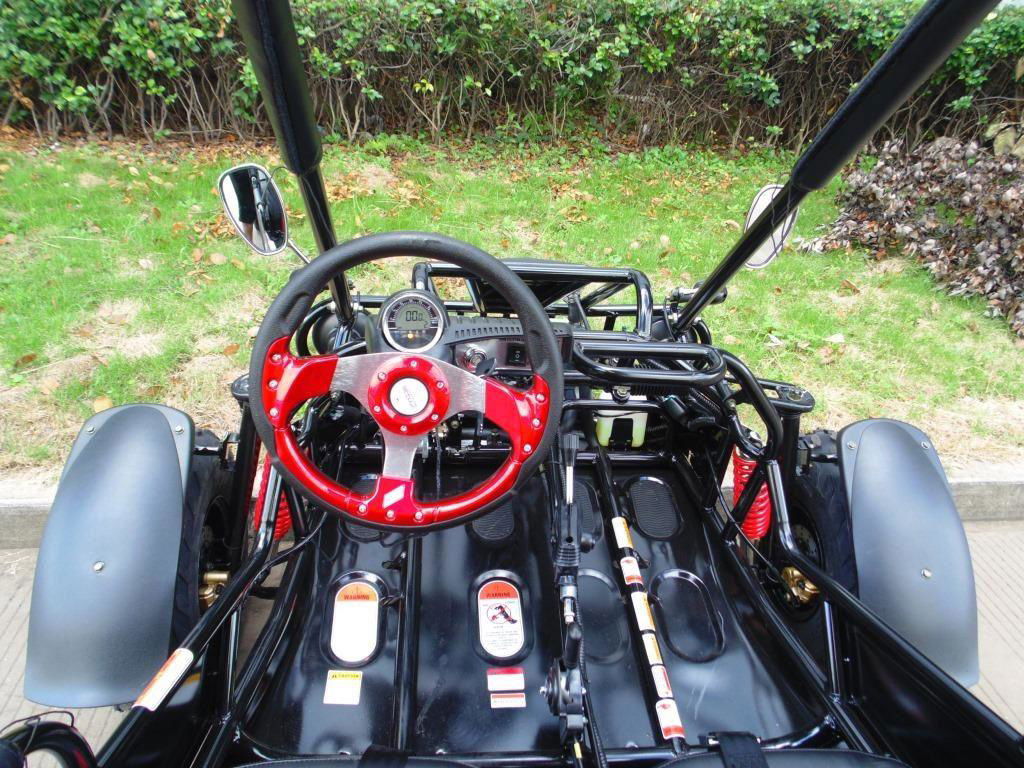

- Adjustable steering wheel

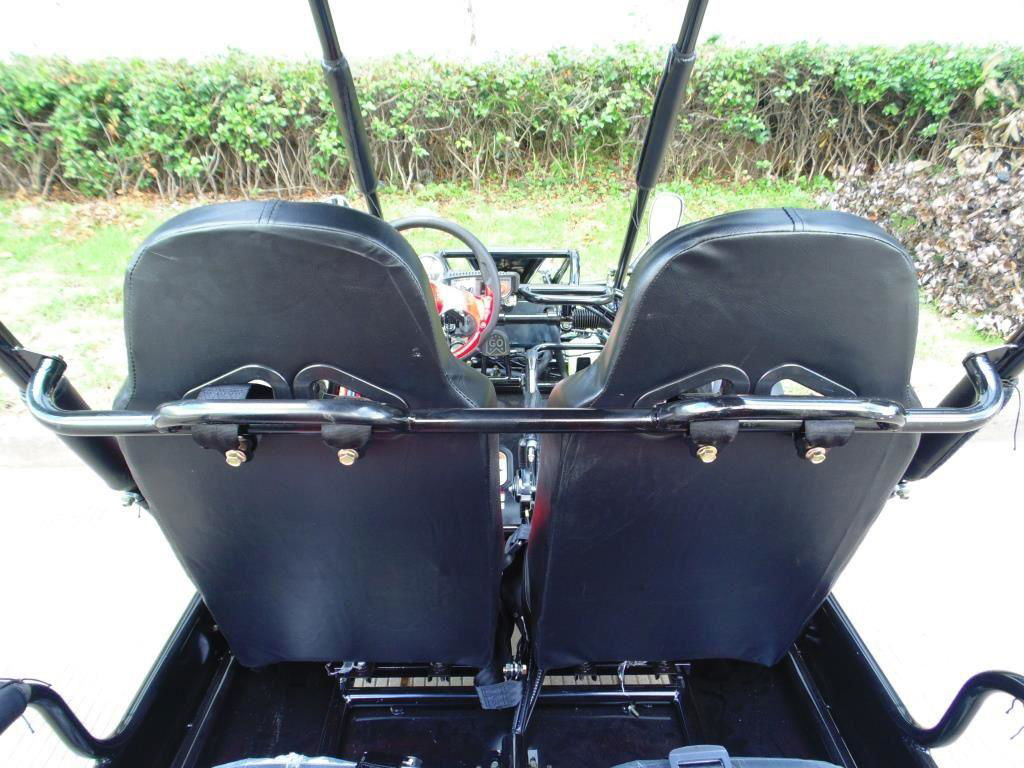

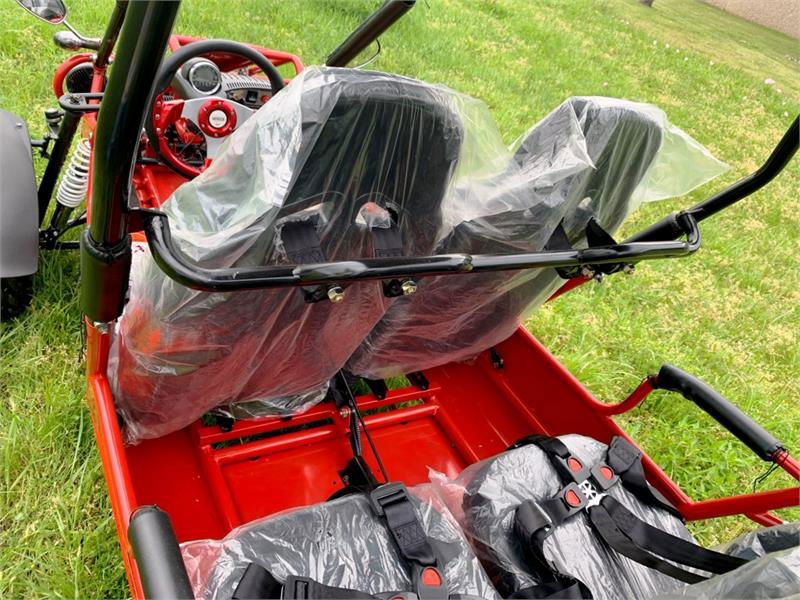

- Adjustable front driver and passenger seat: pedal to center seatback adjustable from 36” to 43”, fits driver/passenger up to 6’2 in height

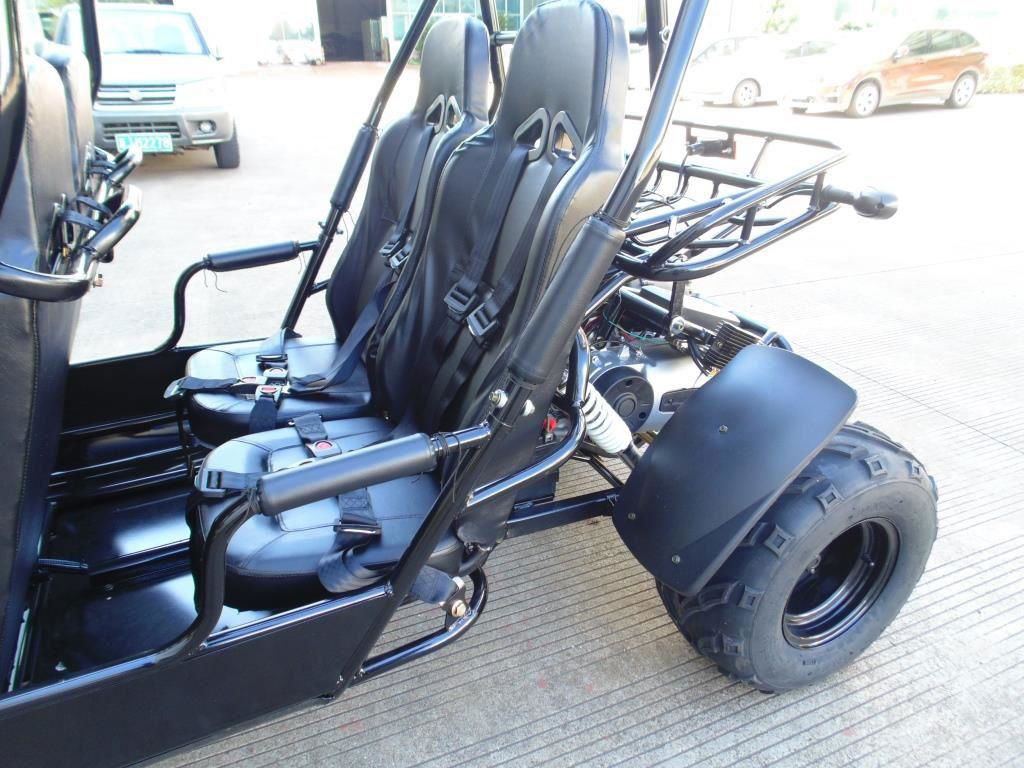

- Front seat to rear seat distance 26inches, fits passengers up to 6’2 inheight
- Handled extremely well on trails, only Min. 229" turning radius.
- Electric start with kill switch

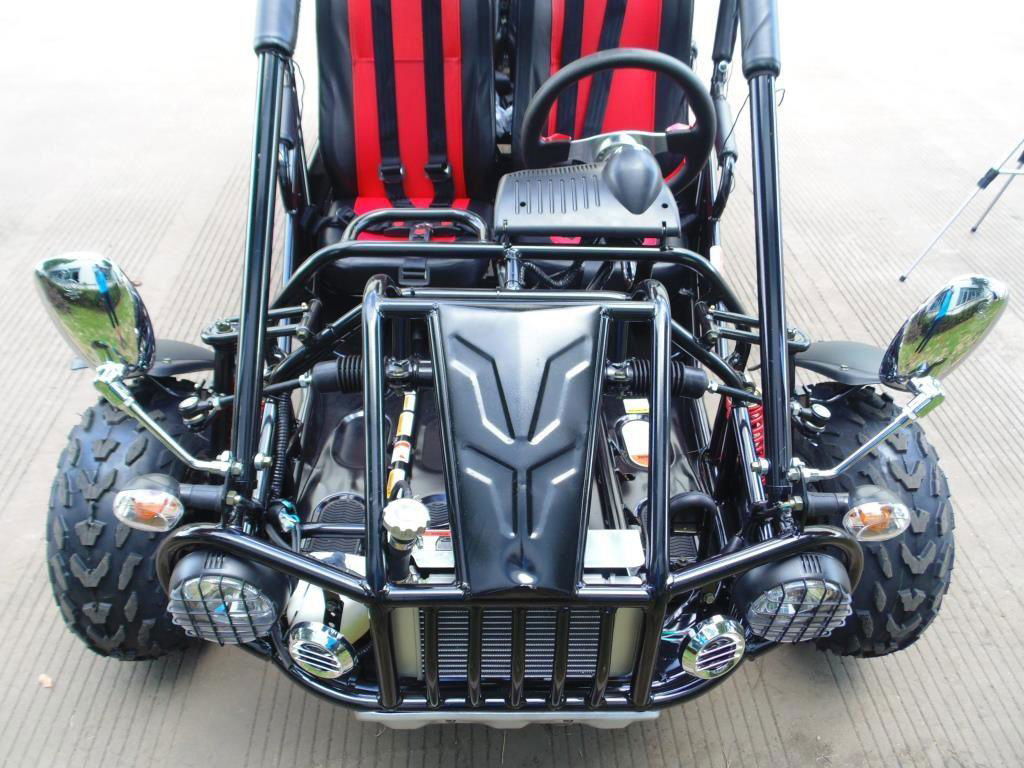

- Aluminum side mirrors
- Sporting steering wheel
- Turn signals

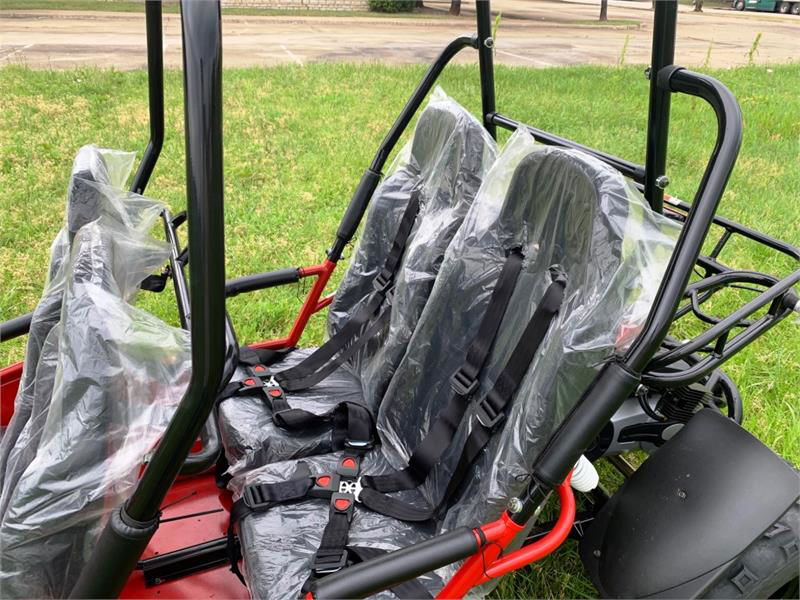

- Individual sporting seats
- Polished stainless steel muffler
- Big tires: F / R: 20 x 7-8 / 21 x 10-10
- Bikini sunshade top
- Adjustable heavy-duty front and rear shock absorber
- Rack and pinion steering wheel
- Front and rear hydraulic disc brake
- 4-wheel fenders
- Trailer hitch
- Large gas tank
- Horn
- Padding over roll cage
Specifications
Engine Information

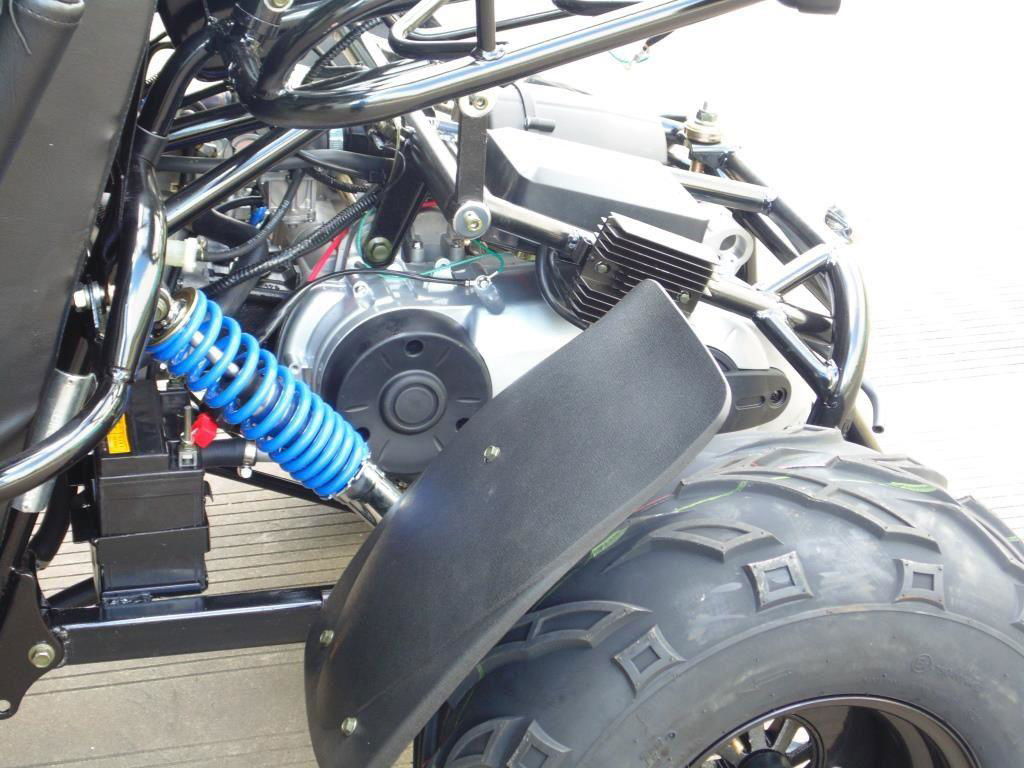

- Engine type: 4-stroke, single cylinder, air-cooled
- Displacement: 275.6cc
- Output Max.: 17.4HP/6500rpm
- Max torque: 16 lb ft/5000rpm
- Bore x stroke: 2.85 x 2.63 inches
- Max speed: 45mph
- Climbing ability: 15 degrees
- Min turning radius: 229 inches
- Ignition: ICM
- EFI Ignition Module: RM1A1
- Starting system: Electric Start
- Battery: 12V 10Ah
- Gear oil: MoS2&W-2WD-4D
General Information
- Clutch: Automatic CTV with reverse
- Driveline: Driving wheel Chain /Dual wheel drive
- Suspension: F / R - Dual A-arm /swing-arm
- Brakes: F /R Hydraulic brakes, Disc
- Tires: F / R 20 x 7-8 / 22 x 10-10
- Fuel capacity: 2.25 gal
- N.W. /G.W./ Shipping W: 608lbs /758 lbs / 950 lbs
- Max load: 800 lbs
Dimensions
- Wheelbase: 84.5 inches (2.23m)
- OA L x W x H: 116.1x54.5x59.2inches
- Crate size: L x W x H 120x 45 x 28inches
- Height to seat: F 17 inches
- Height to seat: R 18.2 inches
- Distance between F&R seat: 25.6”
- Min. ground clearance: 15.8”
- Pedal to center seat back: 36 to 43”
