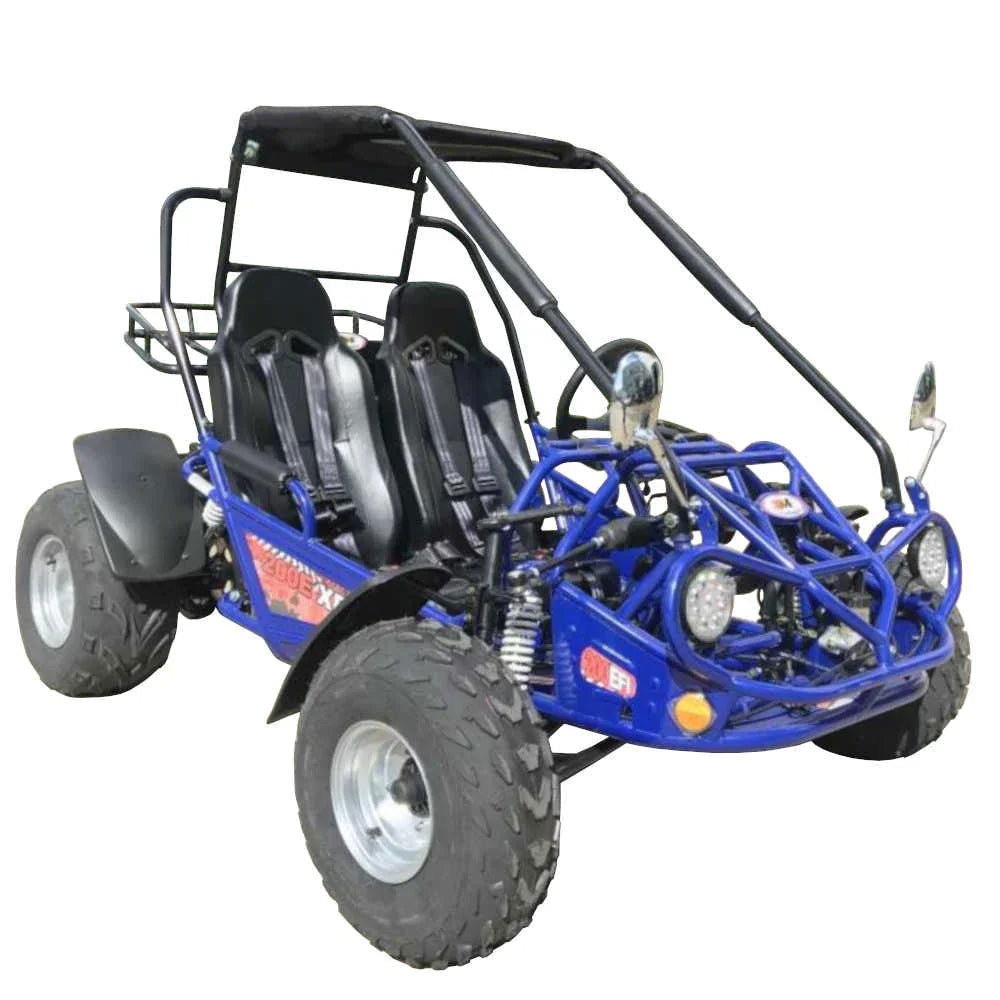

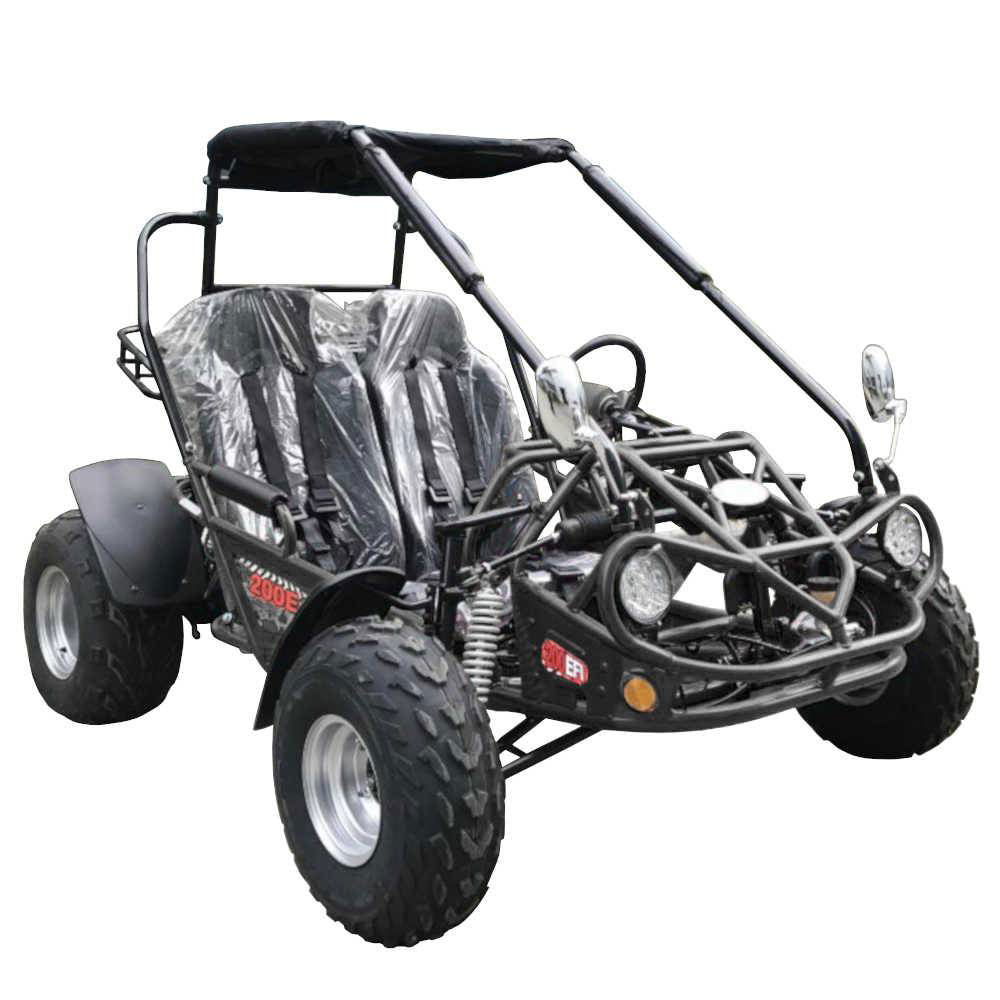

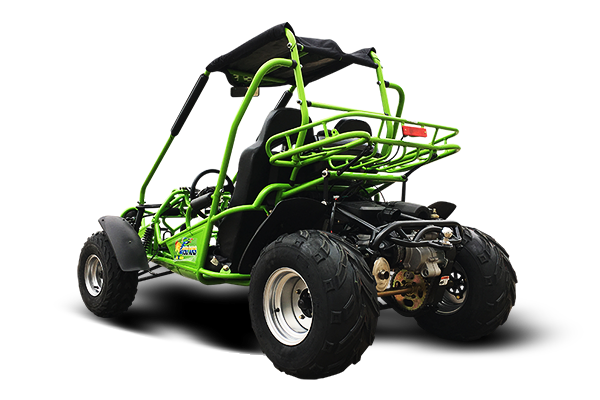

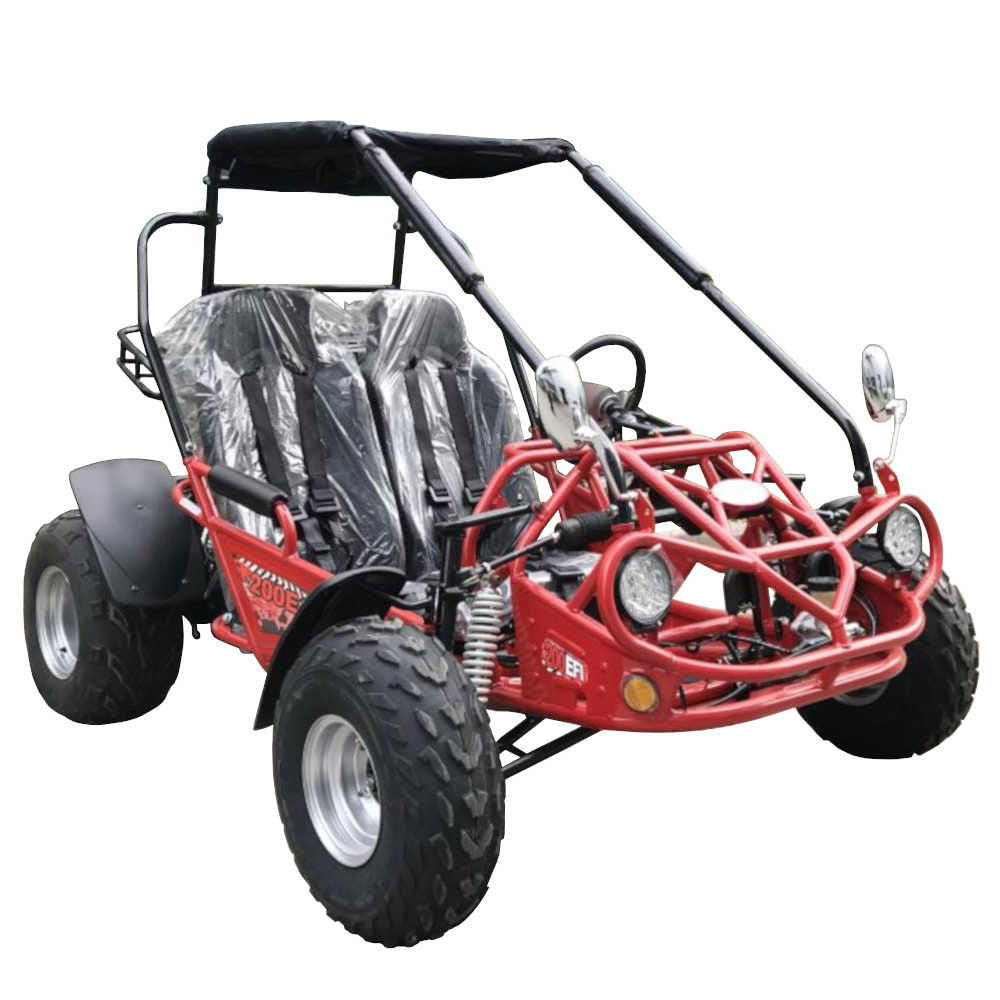

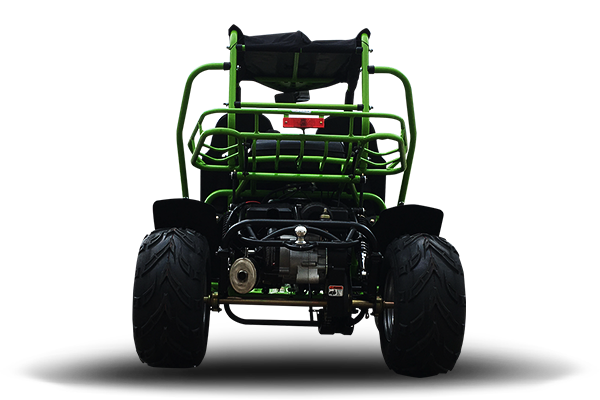

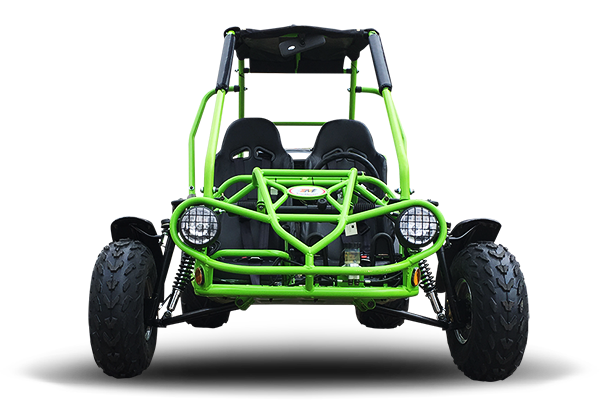

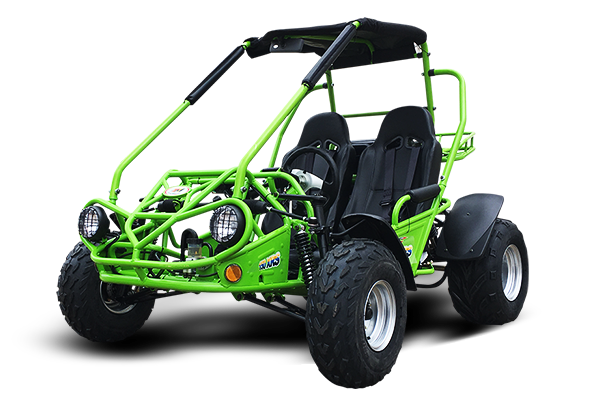

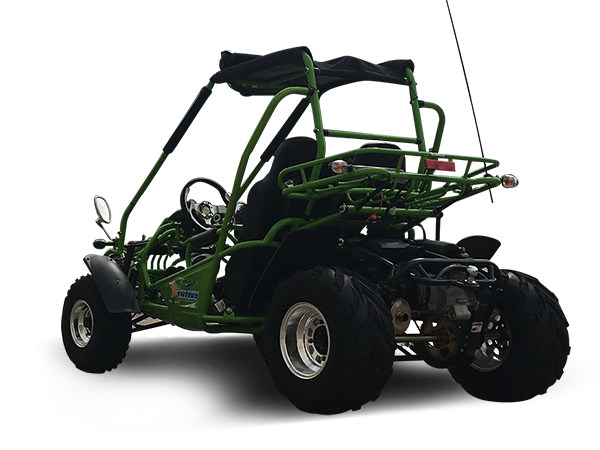

The TrailMaster 200E XRS is one of the best Go Karts we sell. for those seeking reliable performance and convenience. Powered by a 169cc GY6 engine with EFI, it starts reliably in all conditions. Featuring a stainless steel performance muffler, rack and pinion steering, adjustable steering wheel, side mirrors, and a bikini sunshade top, this go kart is perfect for your outdoor adventures.
Experience maximum performance and comfort with the 200E XRS EFI Go Kart CVT Auto with Reverse. Its adjustable 36-43 inch driver's seat, heavy-duty shock absorbers, 4-point rear swing arm, F&R Hydraulic disc brakes, and bucket seats with five-point safety harnesses ensure a safe and reliable drive. Enjoy extra features like a parking brake, H&L beam headlights, all-around fenders, utility rack, and trailer hitch.
Features
- Fuel injection system operates under anyweather and at any altitude
- Fully automatic with reverse, highperformance 168.9cc GY6 engine withinternal F-N-R
- Top Speed over 40 M/H
- Five-point safety seatbelt
- Electric start with kill switch
- Fully automatic with reverse,
- high-performance GY6 engine with internal reverse set up
- Adjustable steering wheel
- Large tires with 20X7-8 in the front and21X10-10 in the back, steel wheel
- LED head light
- Sunshade top
- Adjustable driver seat: pedal to seat back adjustable from 36” to 43”
- Adjustable heavy-duty front and rear shock absorbers
- Rack and pinion steering wheel
- Front and rear hydraulic disc brake
- 4-point rear swing arm
- Parking brake
- 4-wheel fenders
- Trailer hitch
- Large rear utility rack
- Large gas tank
Specifications
Engine System
- EPA certificated
- Engine type: 4-stroke, single cylinder,air cooled
- Displacement: 168.9cc
- Max HP: 11.1hp/8000rpm
- Max torque: 8.1 lb ft/6000rpm
- Bore x stroke: 2.4x2.28 inches
- Max speed: 43 mph
- Climbing ability: 18 degrees
- Ignition: ECU
- Starting system: Electric
- Battery: 12V 10Ah
- Engine oil: SAE 15W-40
General Information
- Clutch: Automatic CTV with reverse
- Driveline / Driving wheel: Chain /Dual wheel drive
- Suspension F / R: Double A-arm /swing-arm
- Brakes, F / R: Both hydraulic brakes,Disc
- Tires, F / R: 20x7-8 / 21x10-10
- Wheel: Steel
- Fuel capacity: 2.25 gal
- Weight, G.W. / N.W.: 573 / 485 lbs
- Max load: 500 lbs
Dimension Information
- Wheelbase: 59 inches
- OA L x W x H: 85x53.1x57.5 inches
- Crate size: 88X48X25 inches
- Shipping weight: 650lbs
- Height to seat: 13.8 inches
- Min ground clearance: 6.7 inches
- Pedal to seat back distance: 36” to43”
