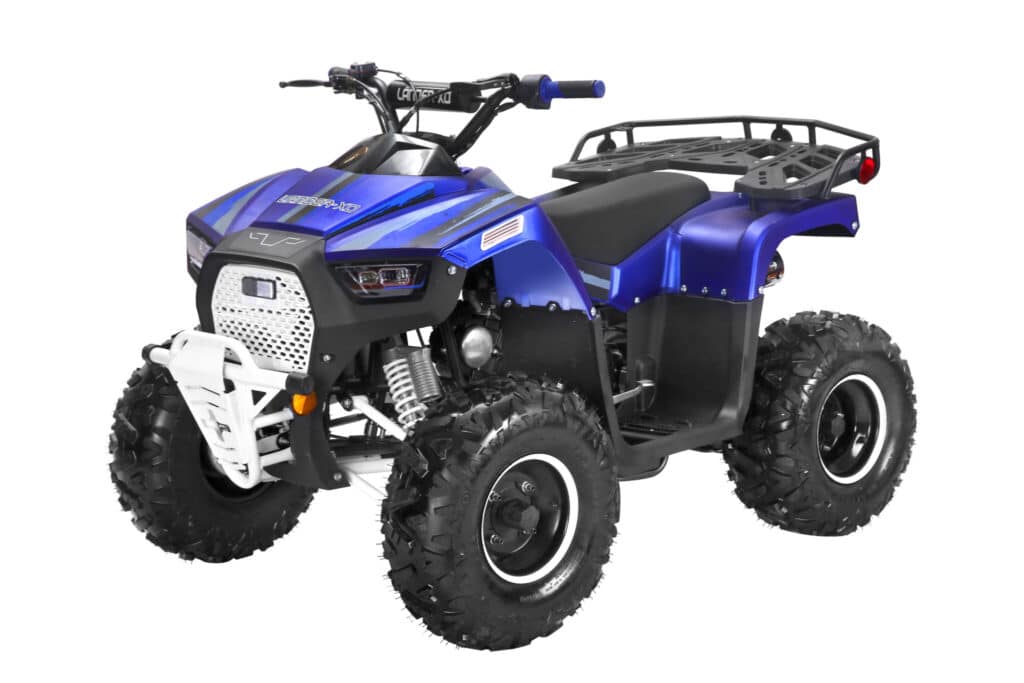

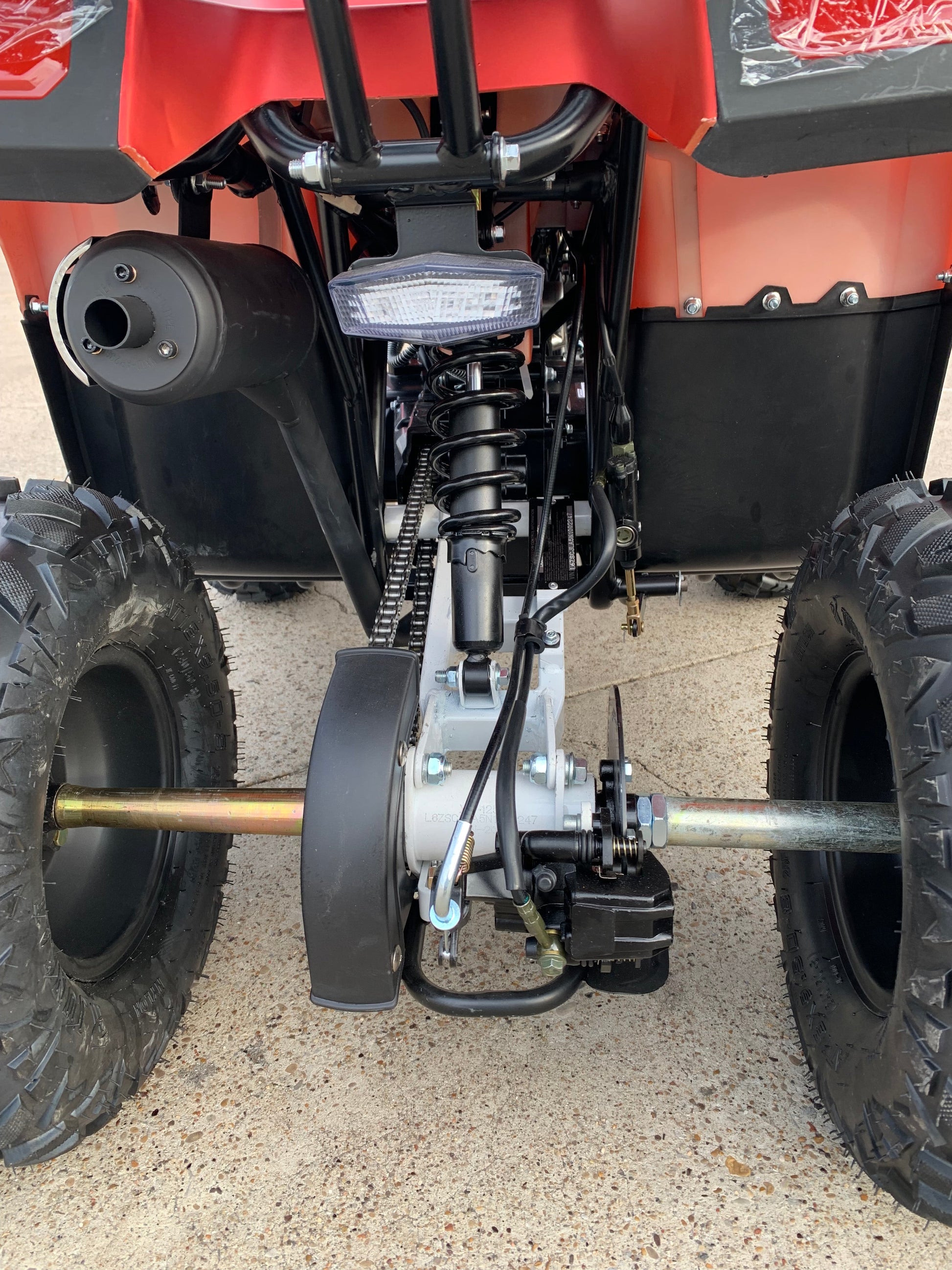

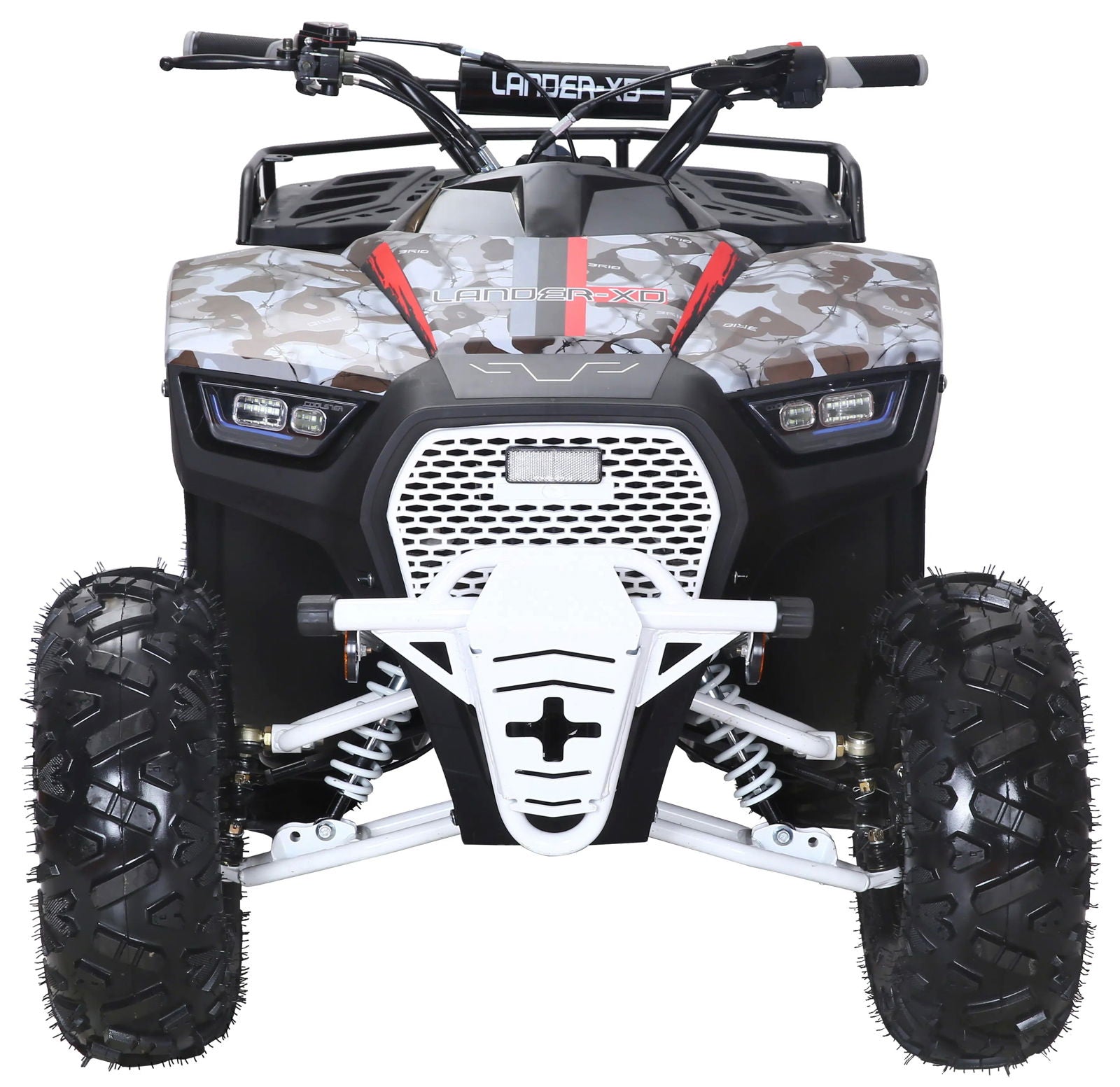

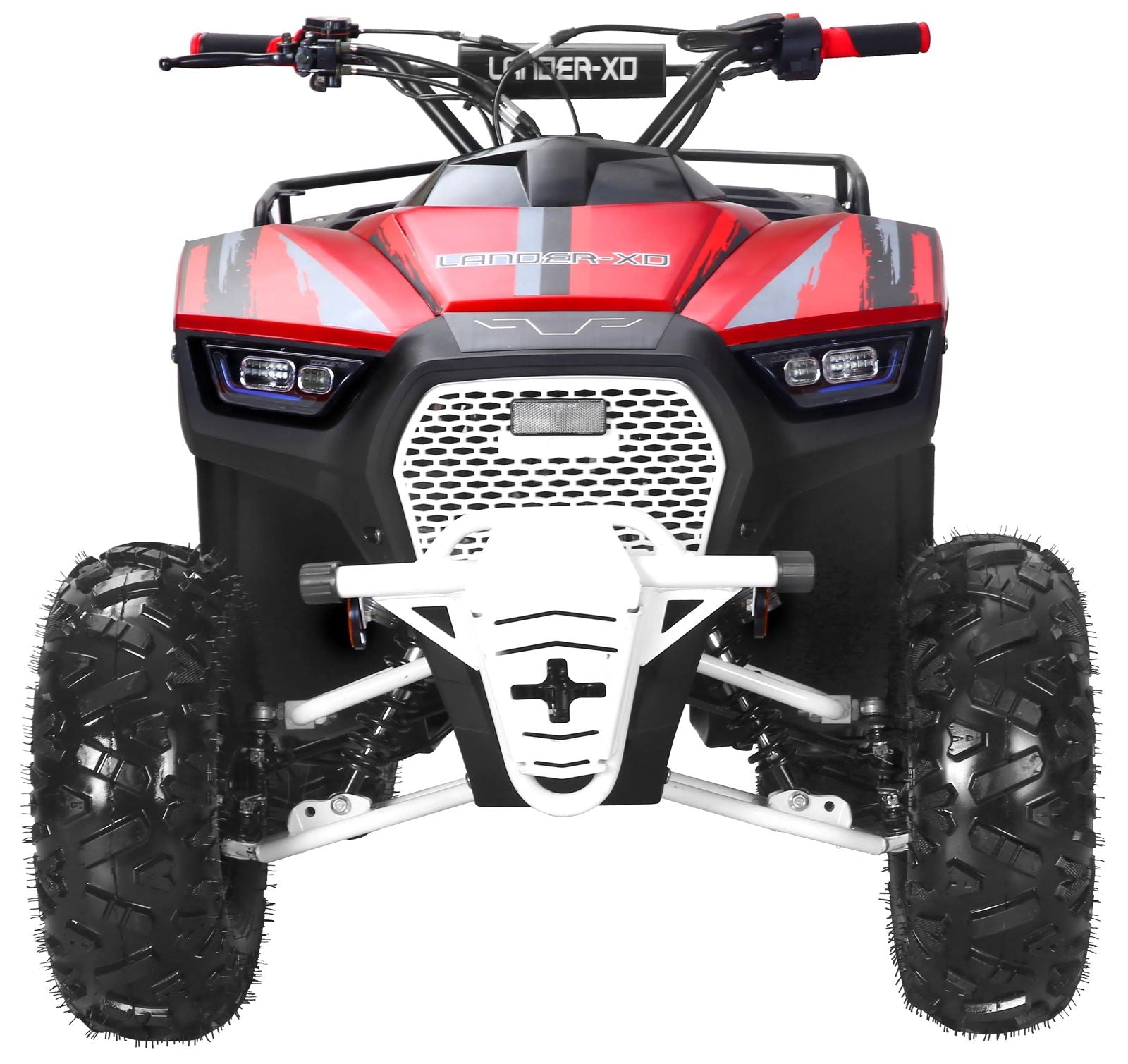

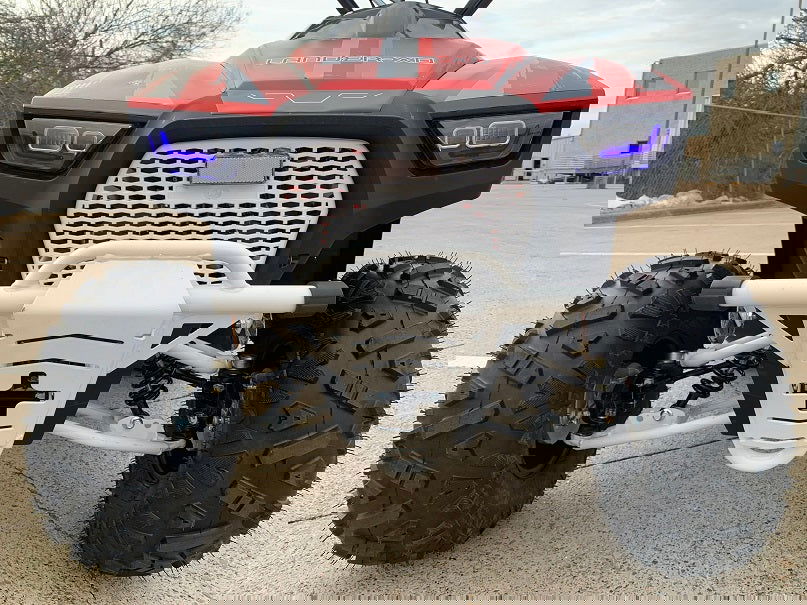

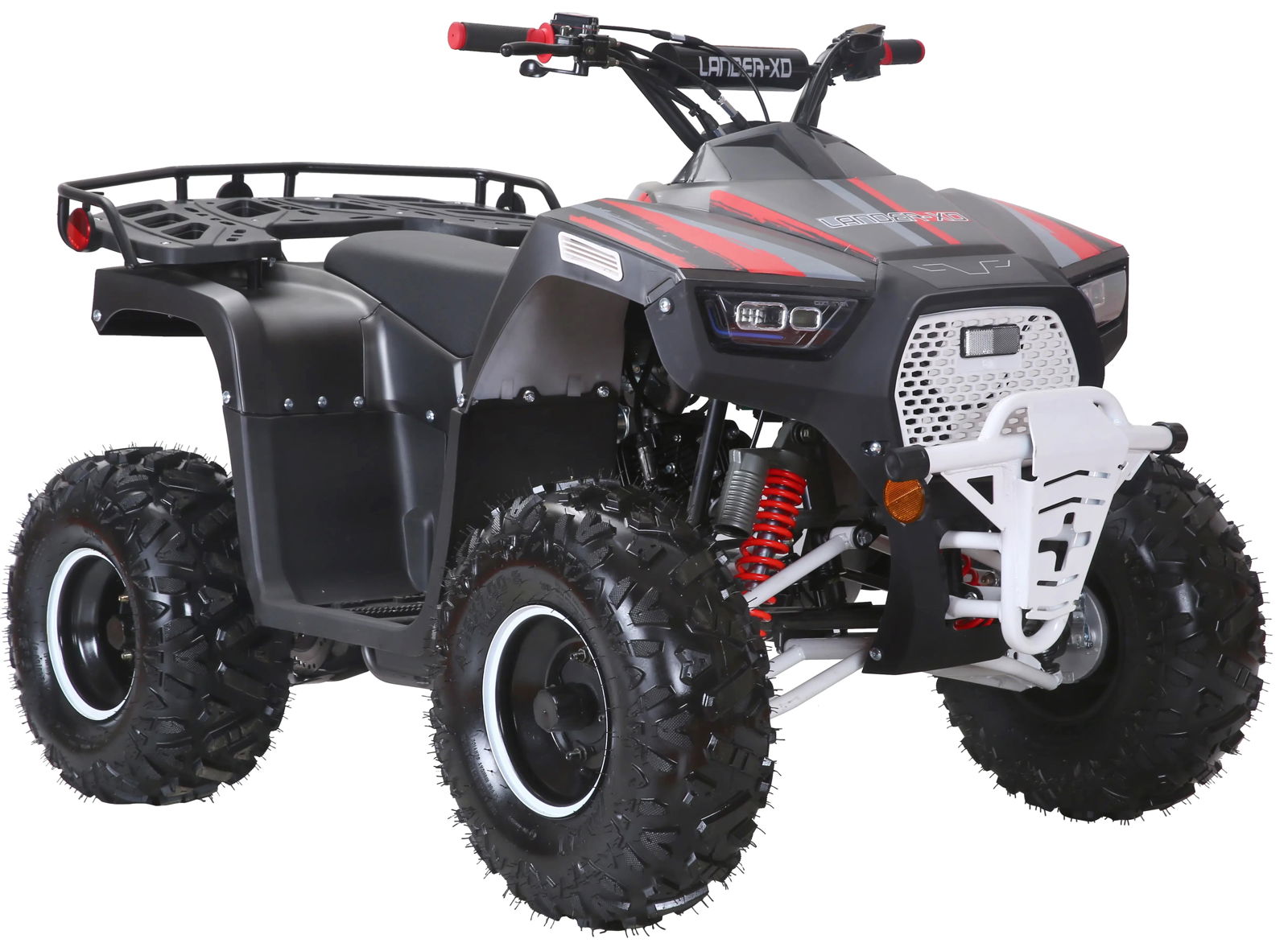

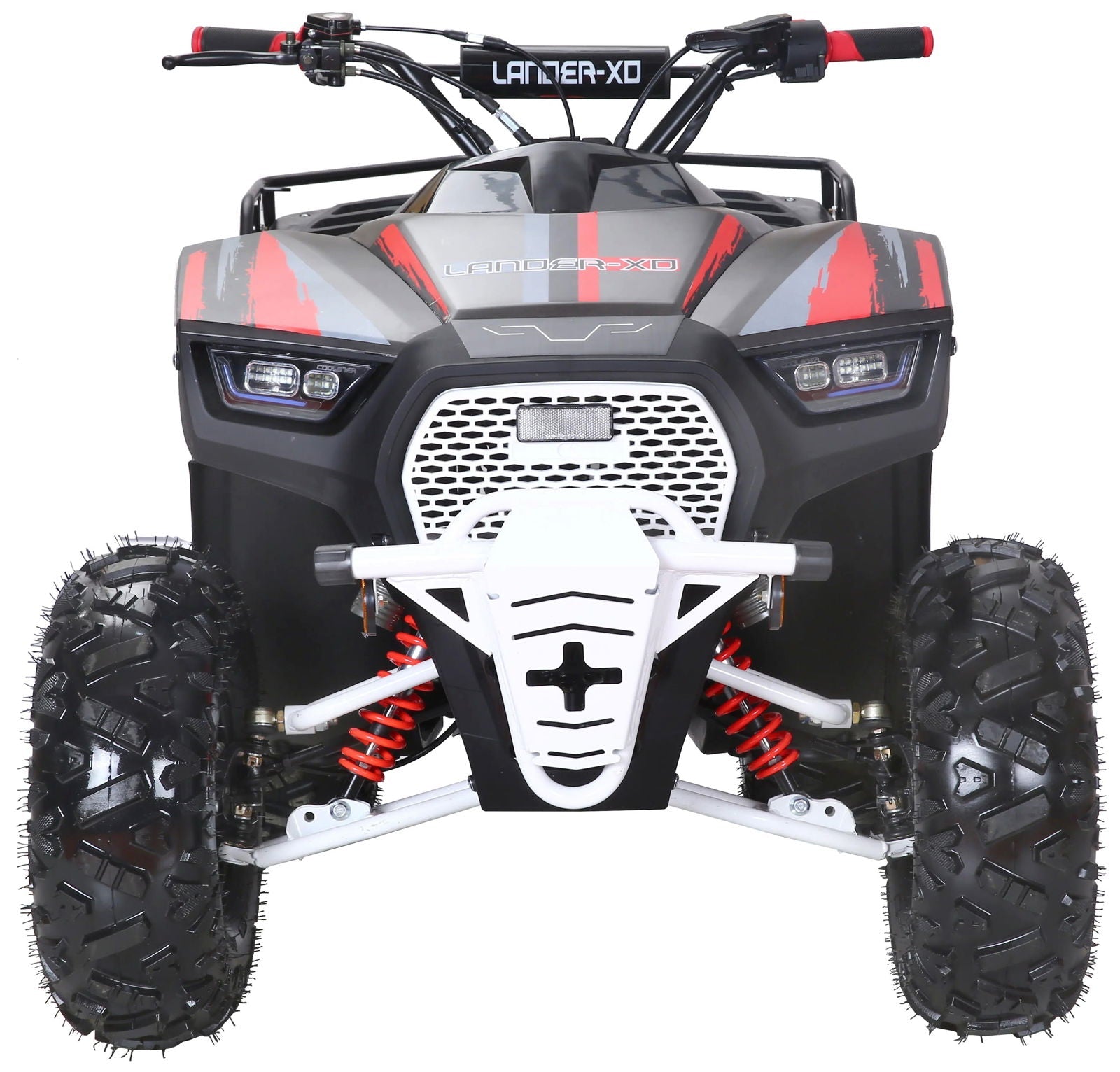

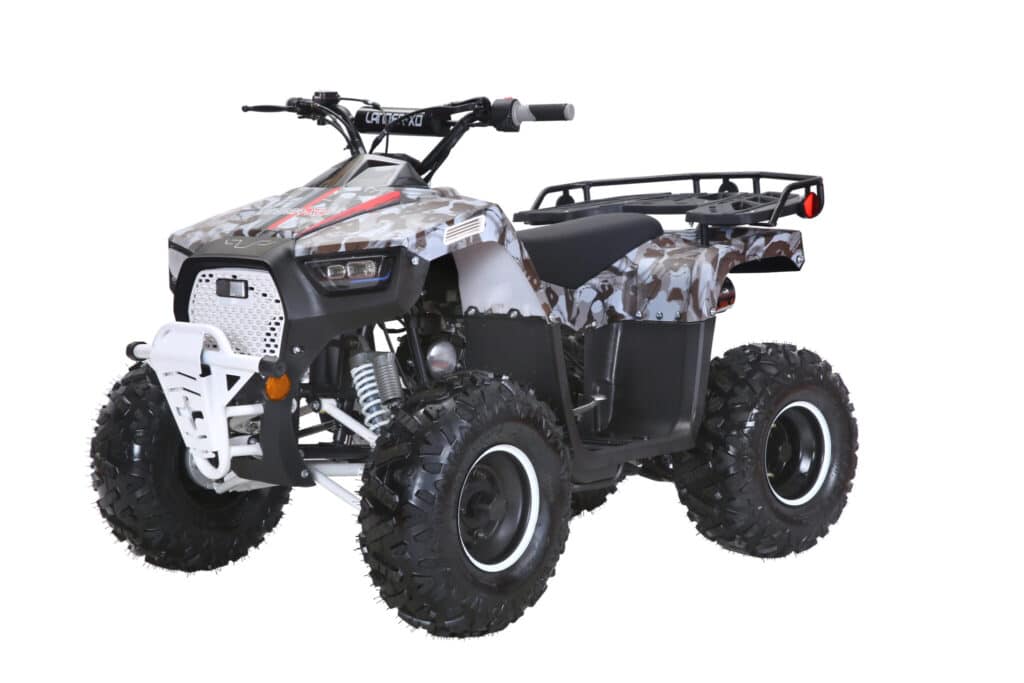

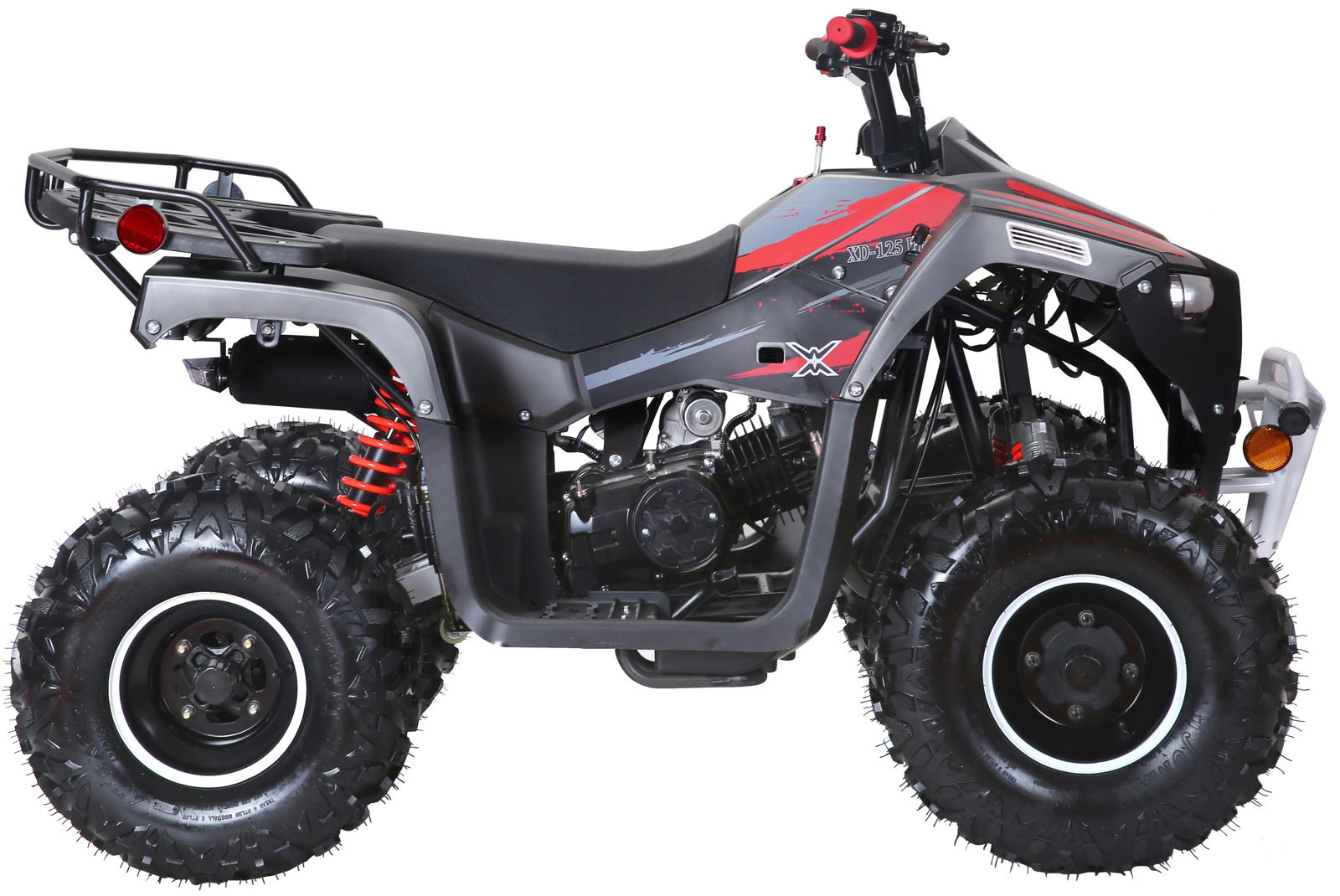

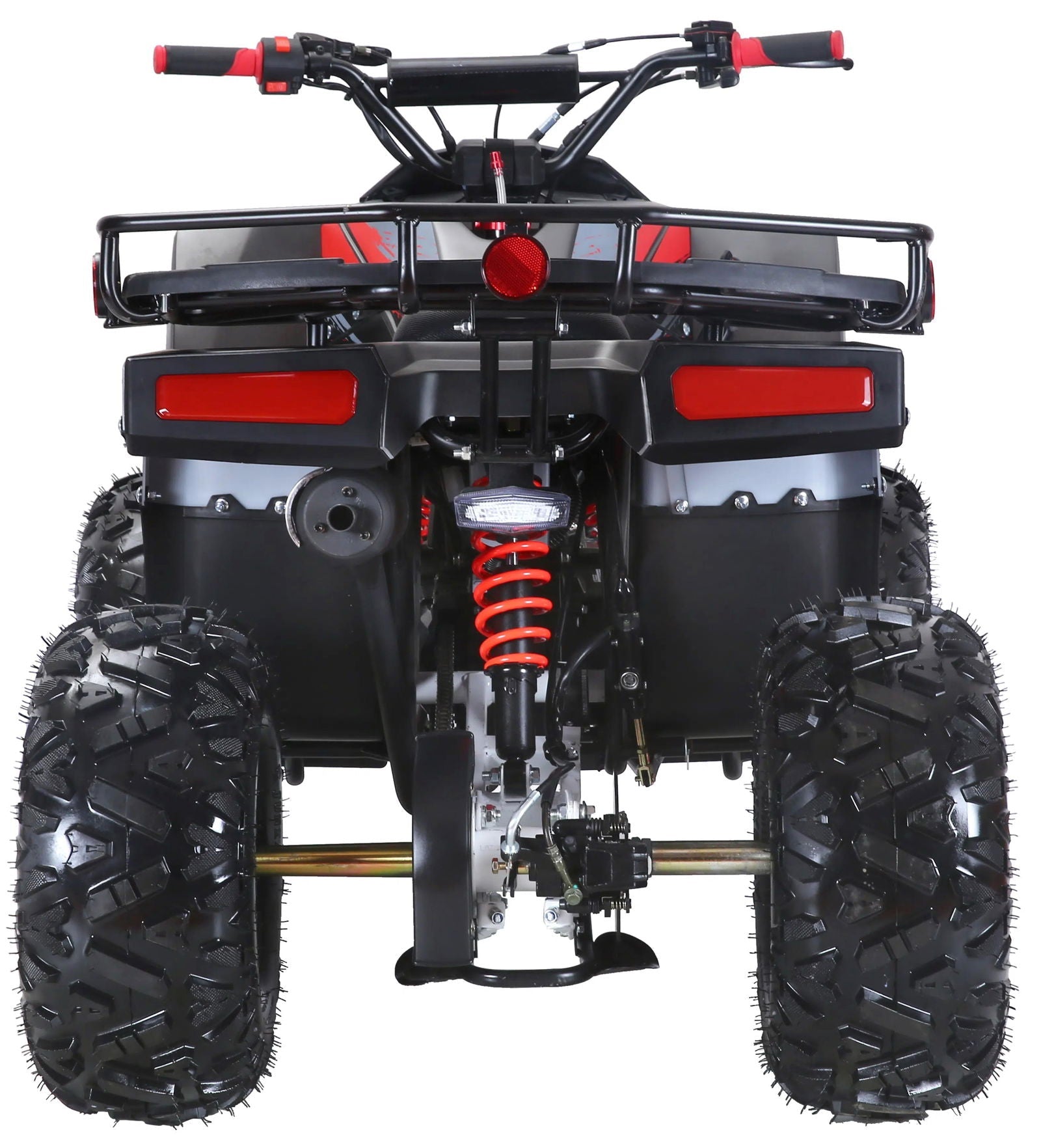

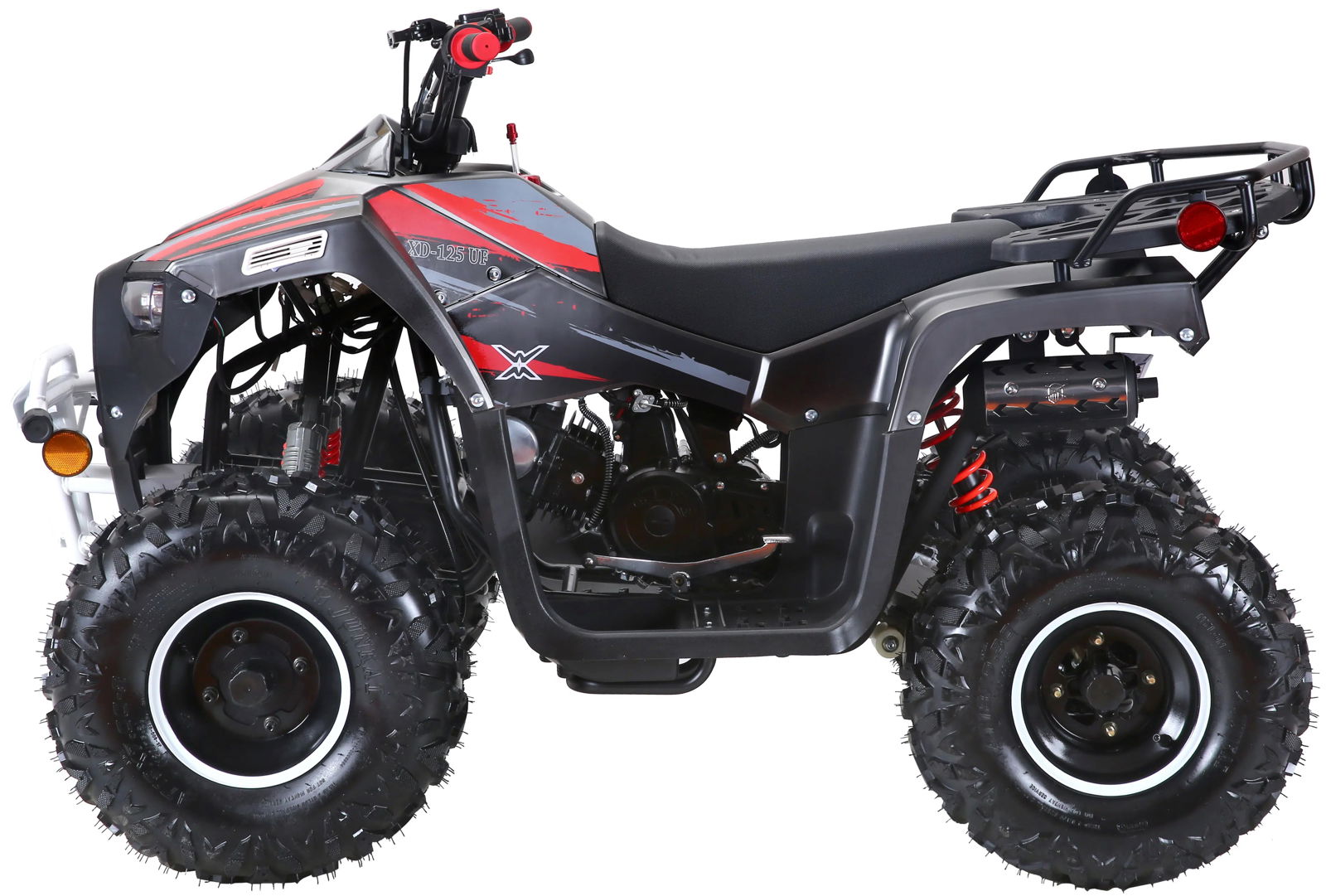

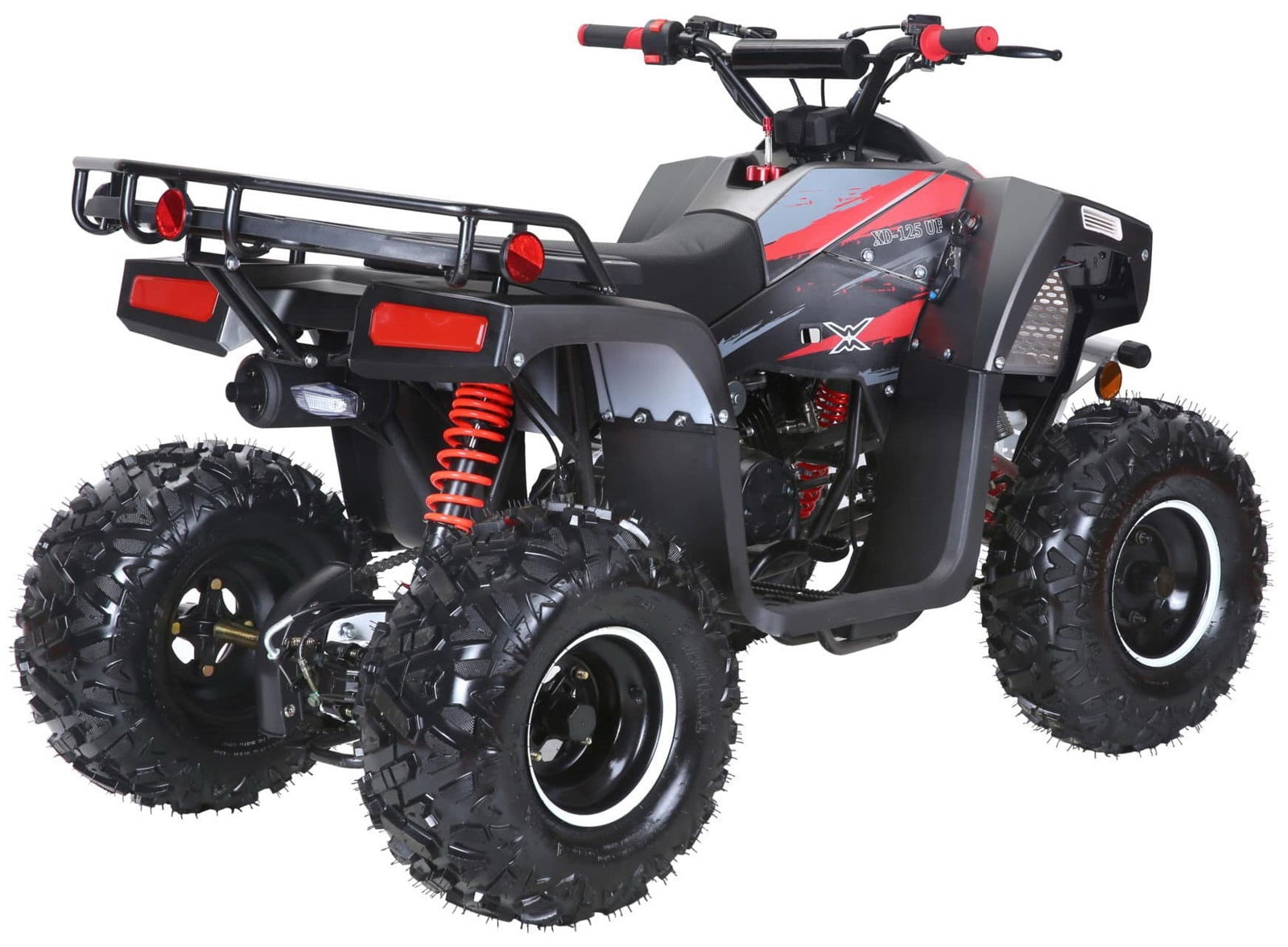

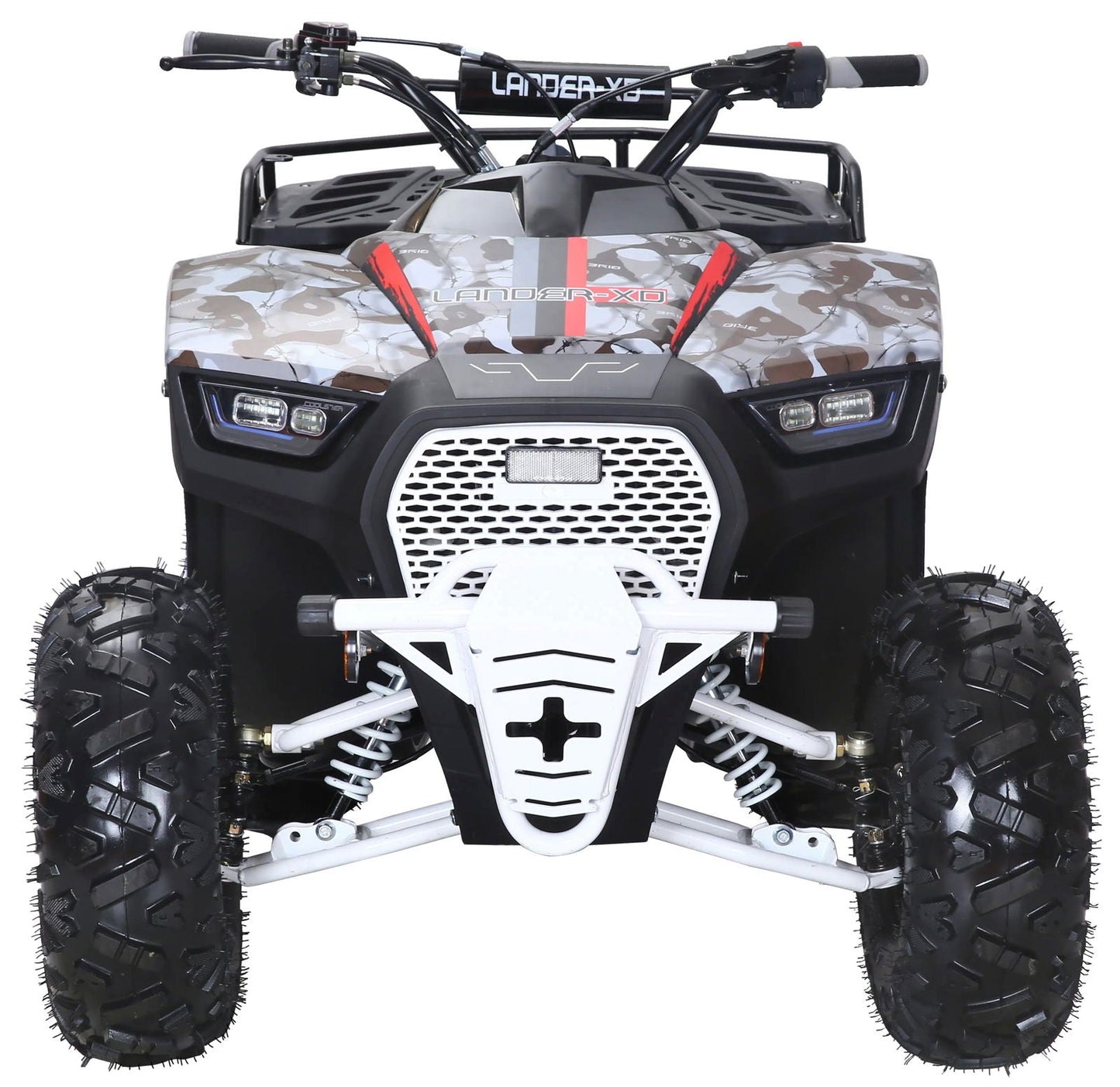

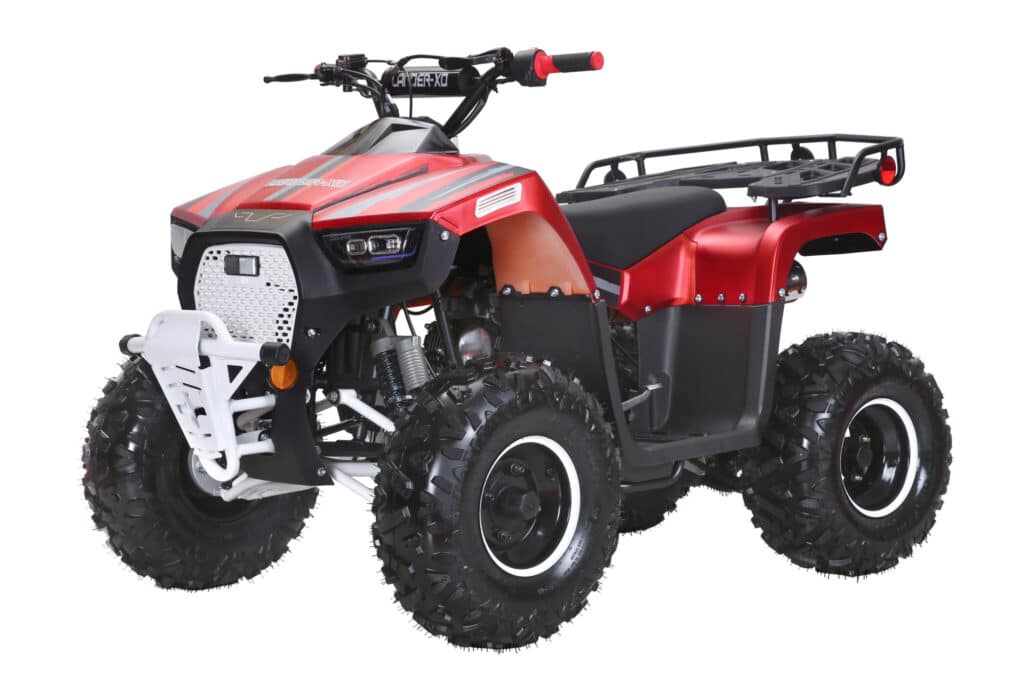

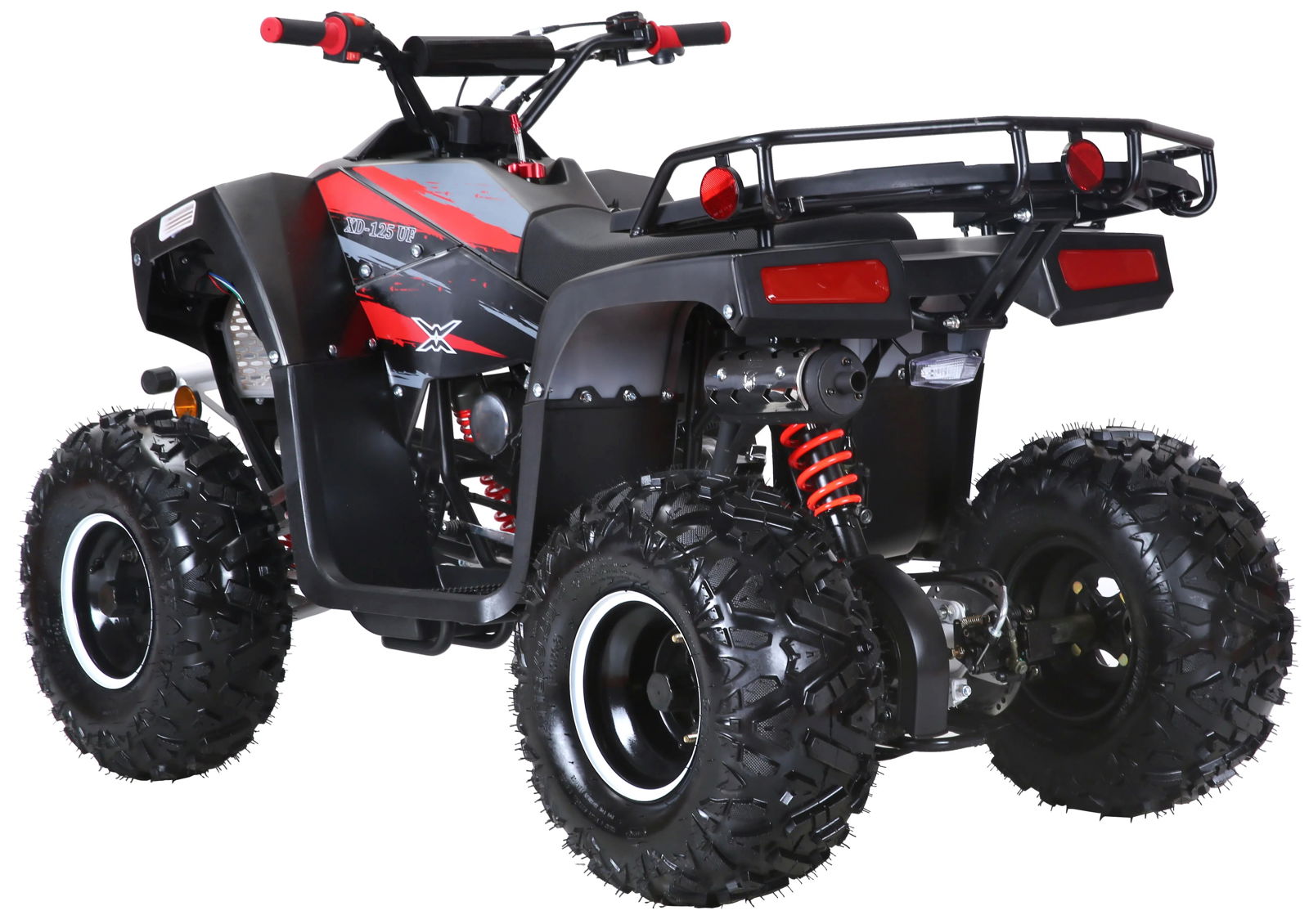

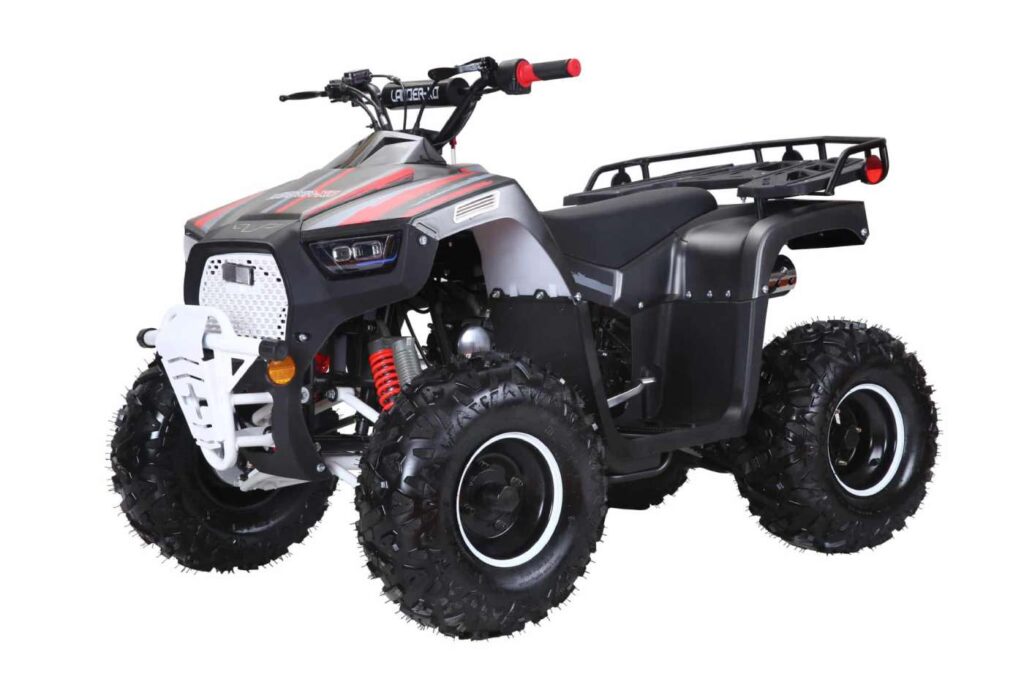

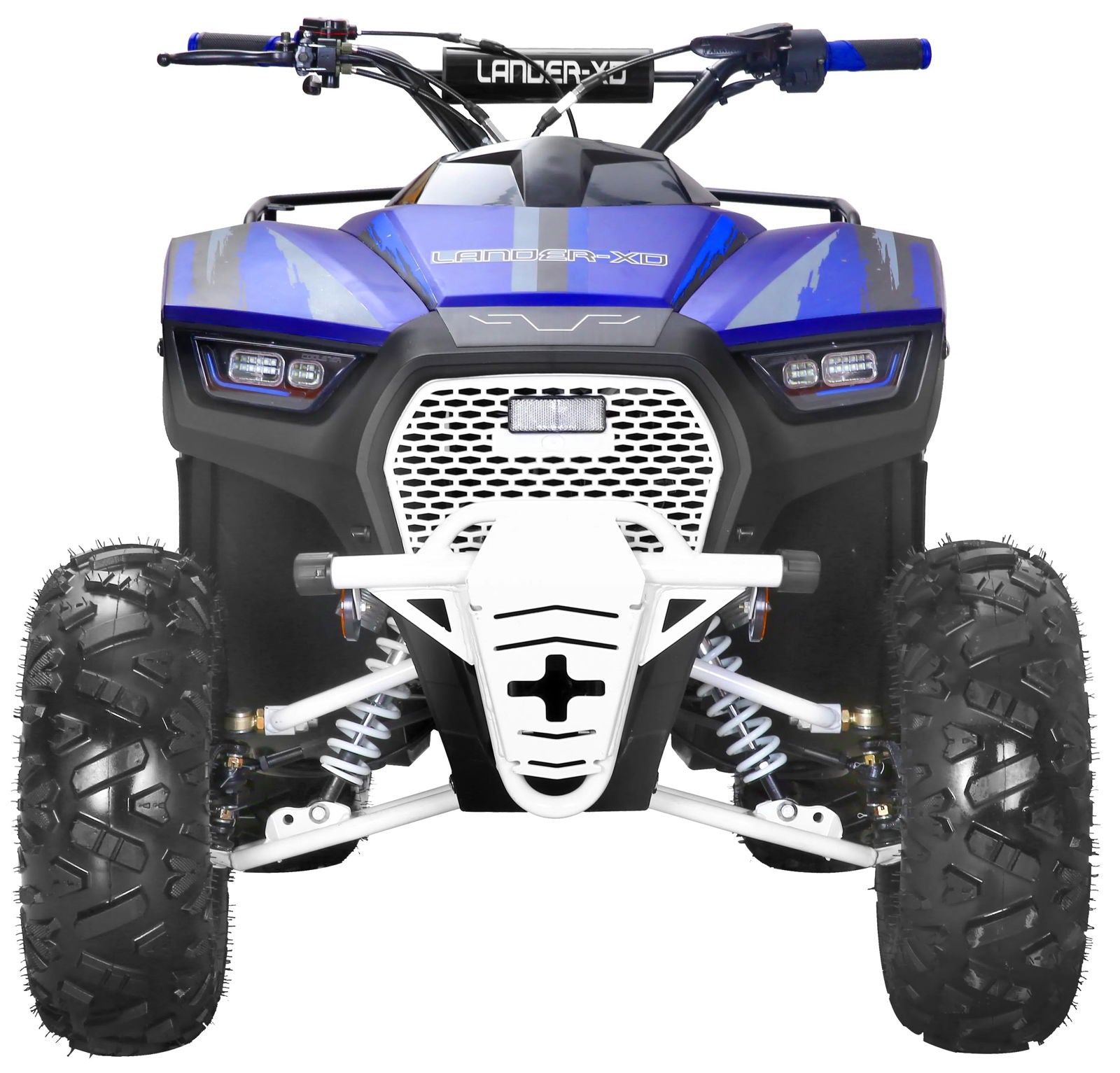

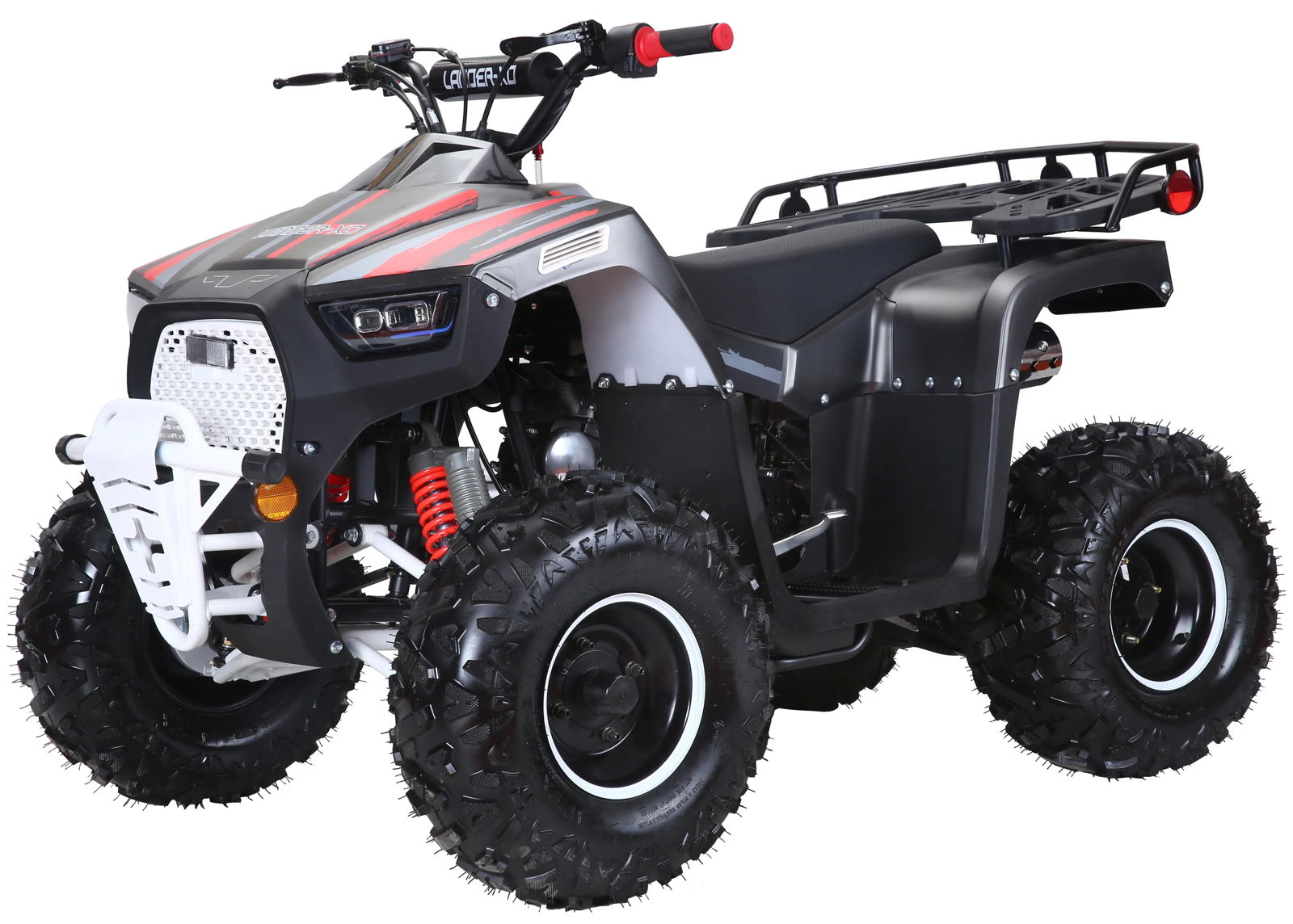

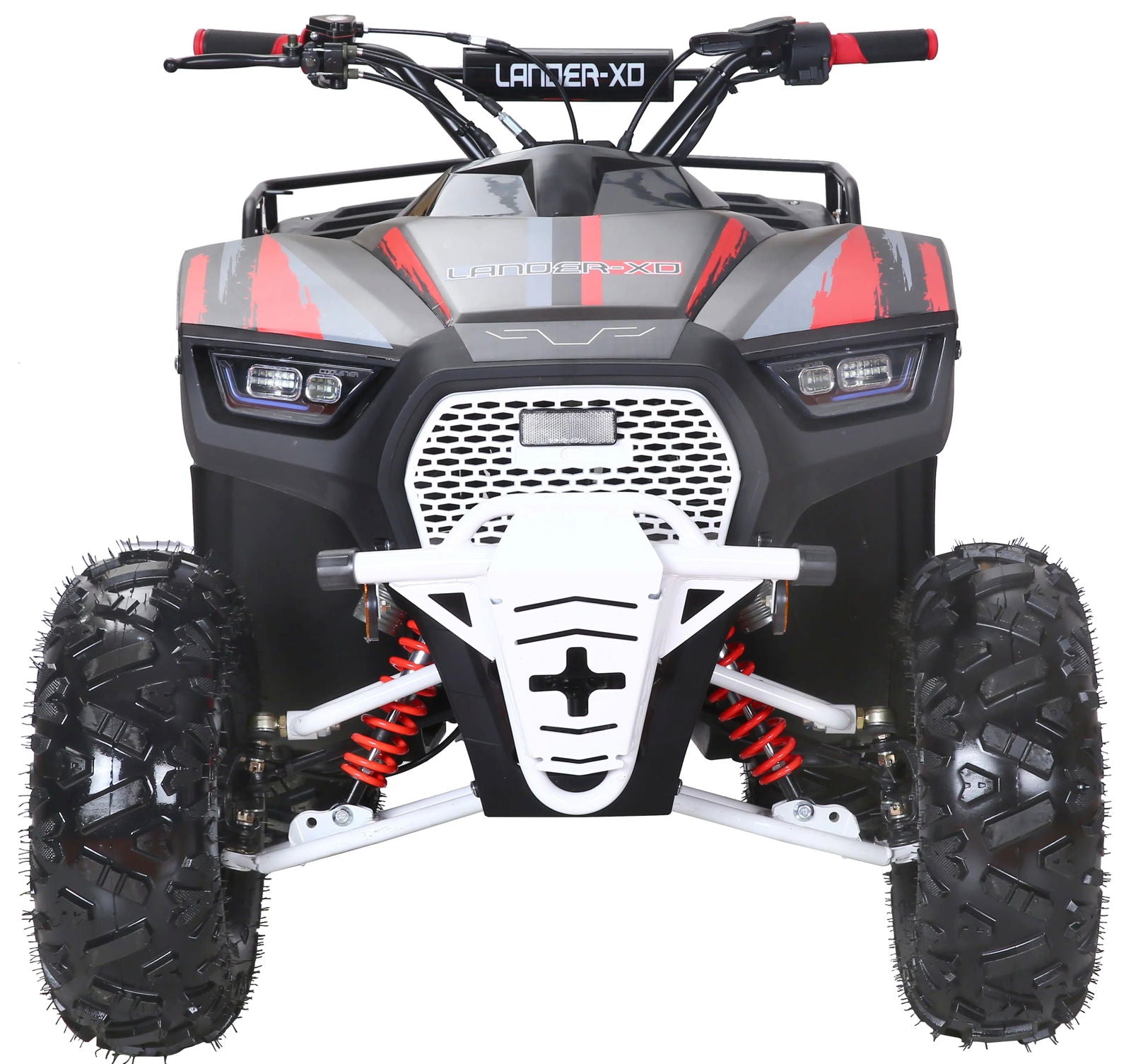

Discover the incredible XD 125UF Mid‐Size 125cc Utility ATV designed for kids. Prepare to be amazed by the exceptional quality and attention to detail in this quad. The XD 125UF boasts impressive features typically found in much more expensive name brand ATVs. It offers rear hydraulic disc brakes, front drum brakes, a full suspension, a powerful 125cc 4‐stroke engine with CDI ignition and electric start for smooth and steady running. In addition, this ATV includes utility racks, front and rear lighting, and more! With a 4-speed transmission and durable chain drive, paired with big, aggressive all-terrain tires, this 4‐wheeler is truly top-notch.
The Lander-XD 125UF comes 85 percent assembled with wheels, steering wheel, rear suspension and racks for you to complete. The whole process will take you less than two hours and you’ll be on the trails before you know it.
Features

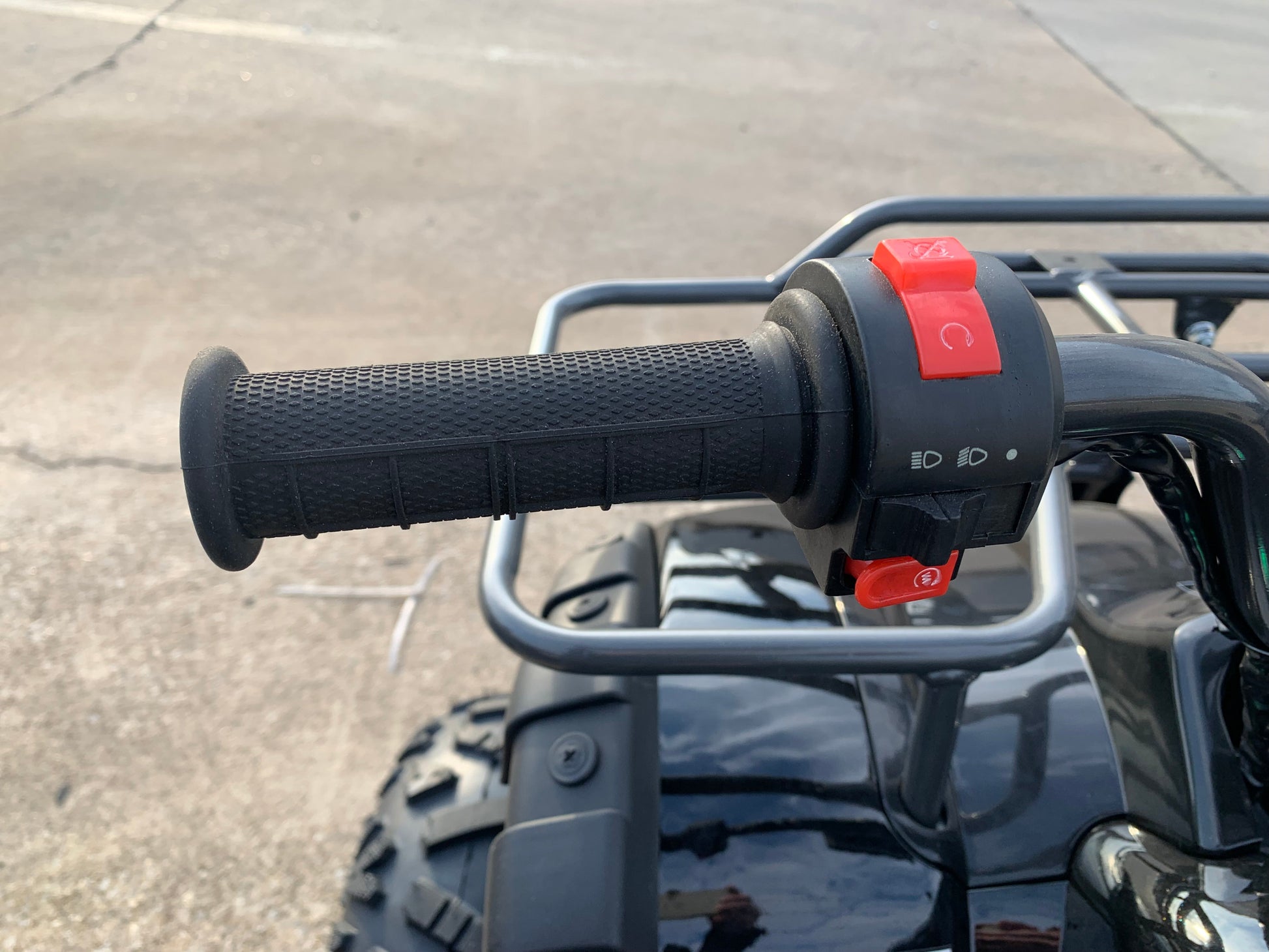

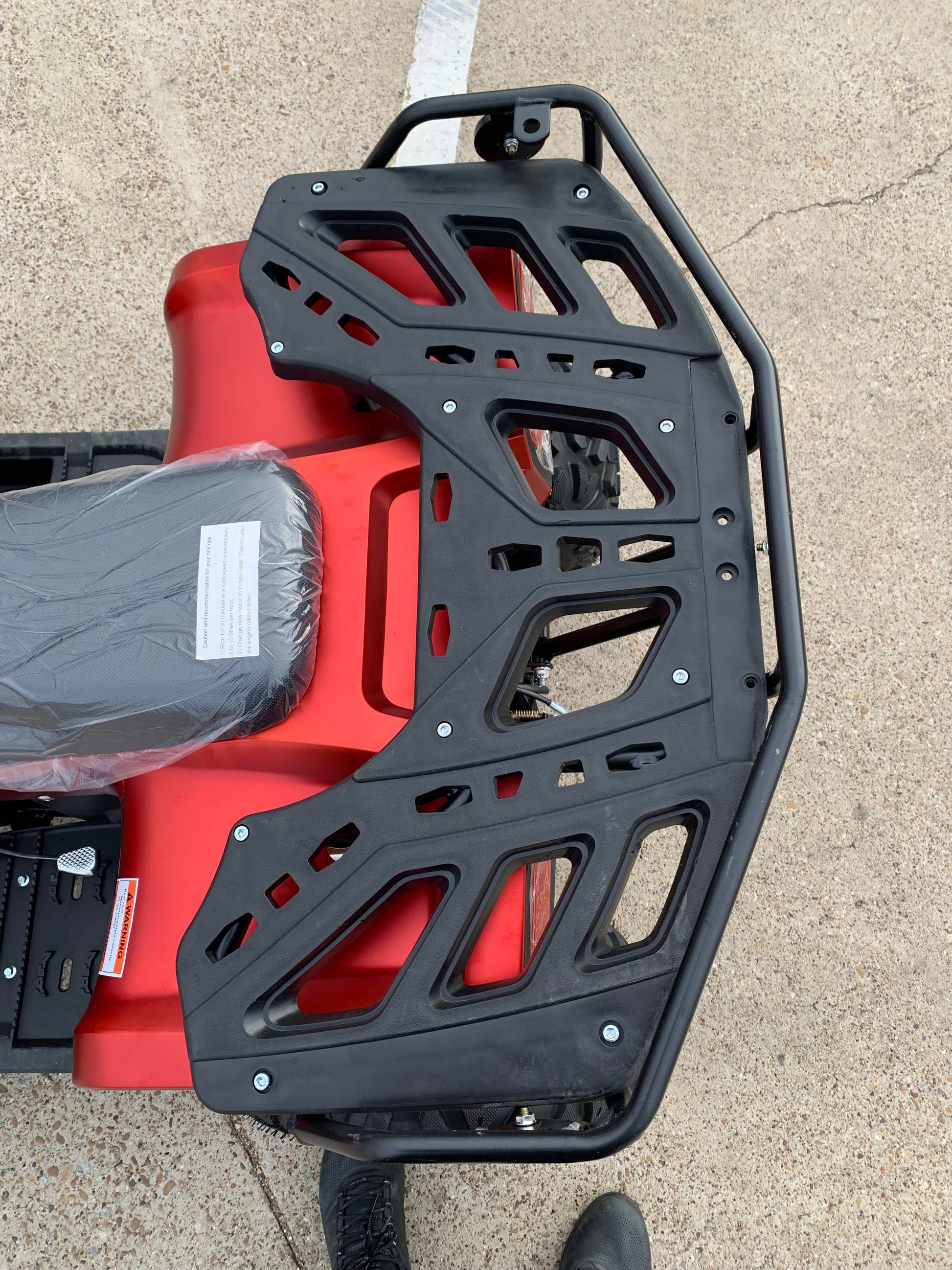

125cc Electric Start Engine 8” Wheels Fully Automatic (D –N ‐R) Hydraulic Disc Brakes Chain Final Drive Remote State / Kill Speed Governor Front Bumper Front & Rear Rack
Specifications
Engine Type
Single Cylinder, 4-Stroke
Cooling
Air Cooled
Drive System
Chain
Piston Displacement
120cc
Bore and Stroke
52.4mm x 49.5mm
Compression Ratio
9.5:1
Maximum Power
5/7500kw/r/min
Maximum Torque
7.0/5500N.m/rpm
Starter
Electric
Transmission
Automatic with Reverse
Length
57.7 inches
Width
36.4 inches
Height
36.6 inches
Seat Height
24.4 inches
Wheelbase
33.8 inches
Ground Clearance
5.5 inches

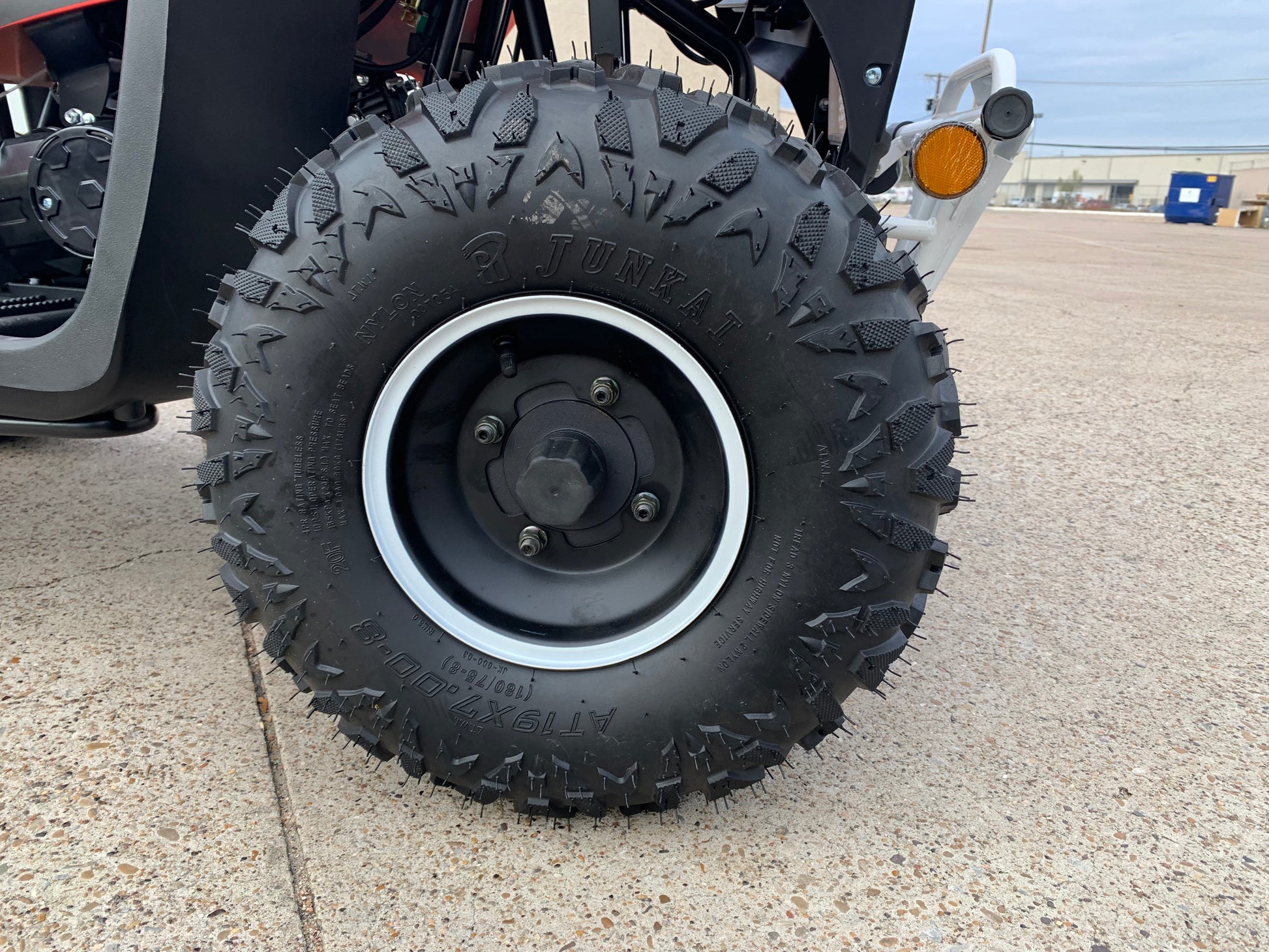

Front Tires
19 x 7-8
Rear Tires
18 x 9.5-8
Ignition
CDI
Maximum Speed
34mi/h
Net Weight
215.6 lbs
Gross Weight
260 lbs
Battery
12V/5Ah
Frame
Steel
Wheel Type
Steel
Engine Oil Capacity
0.20 gal

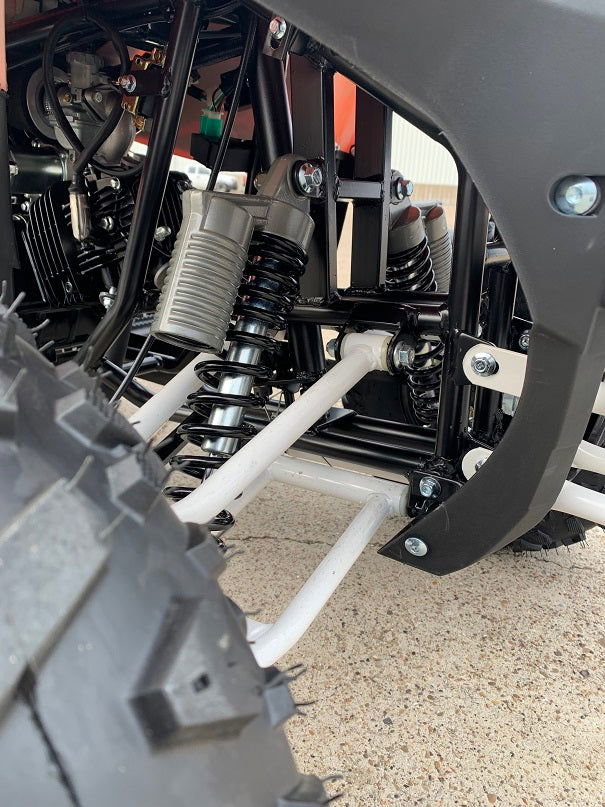

Front Suspension
Double A-Arm
Rear Suspension
Single A-Arm
Free Online Safety Course The ATV Safety Institute recommends that all ATV riders take a training course
Recommended Age 9-12
WARNING:Persons under the age of 16 must be competently supervised by an adult
