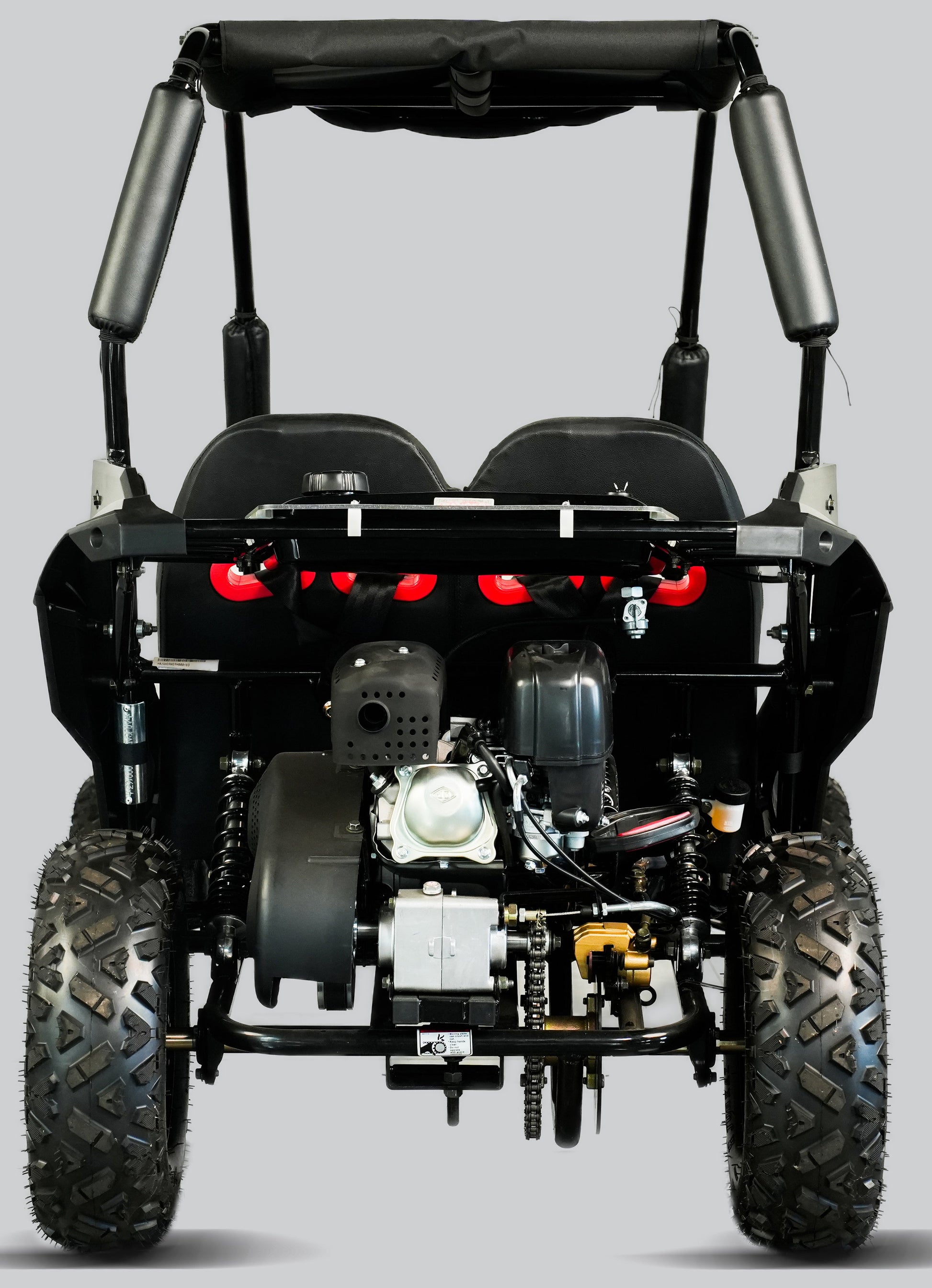

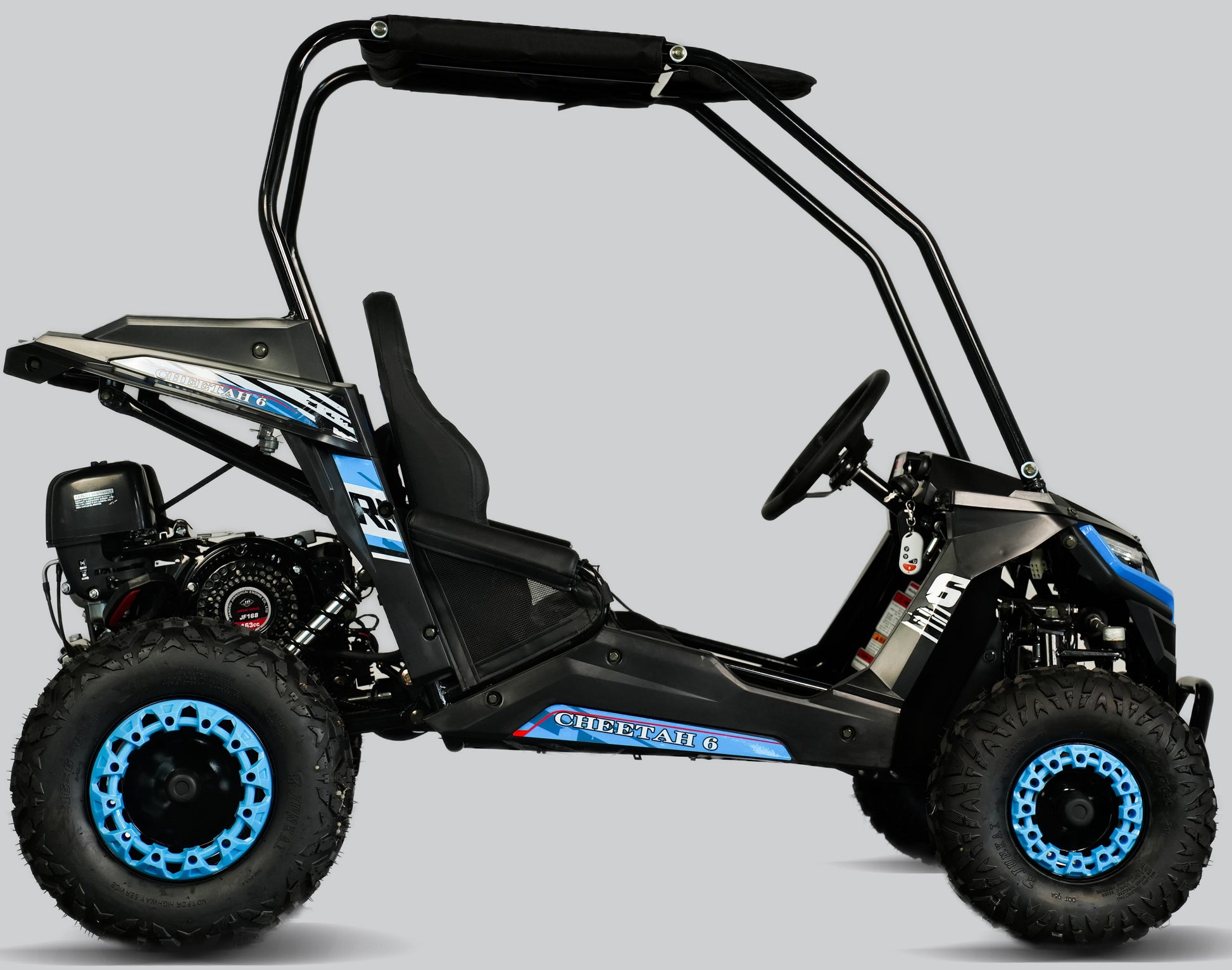

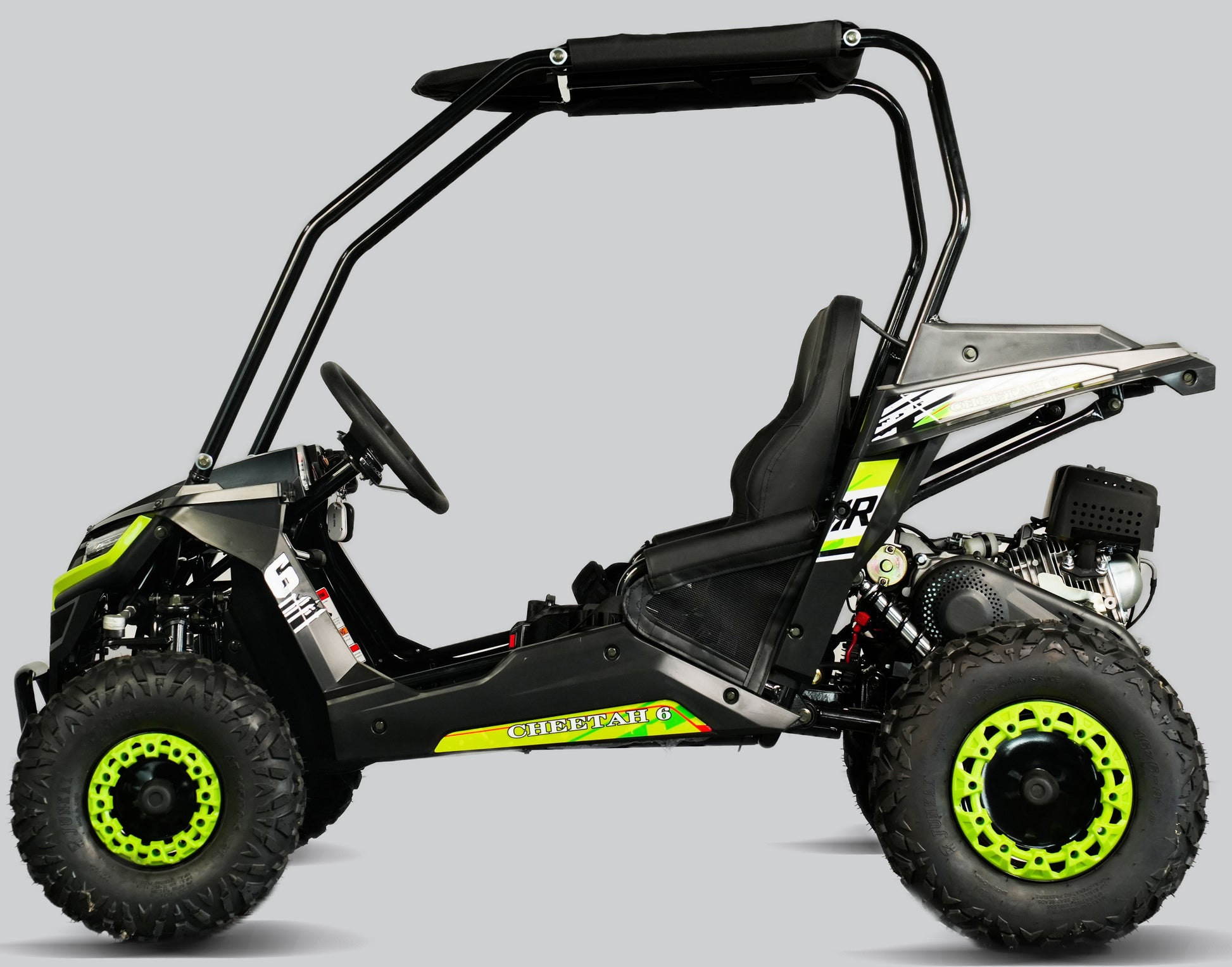

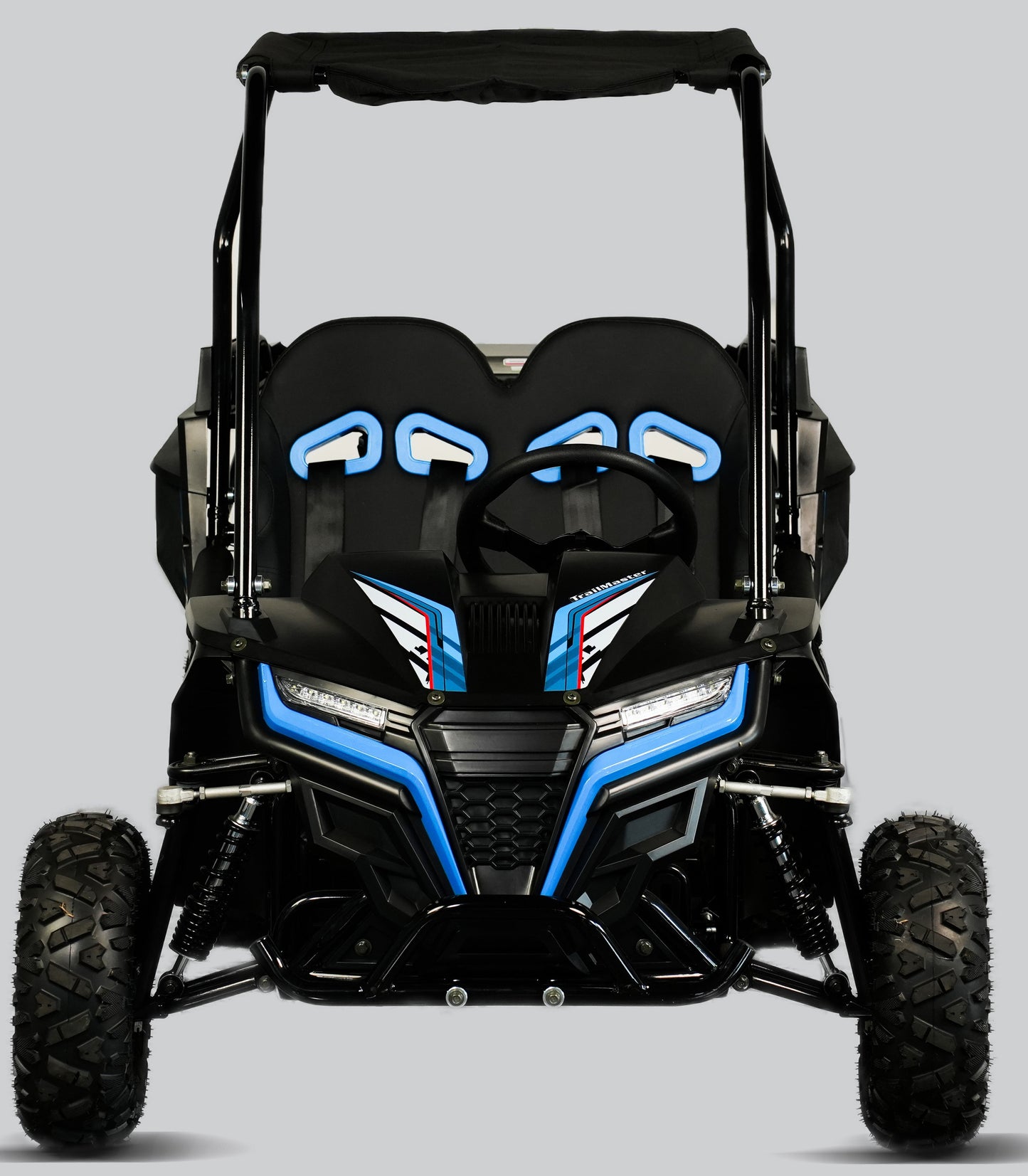

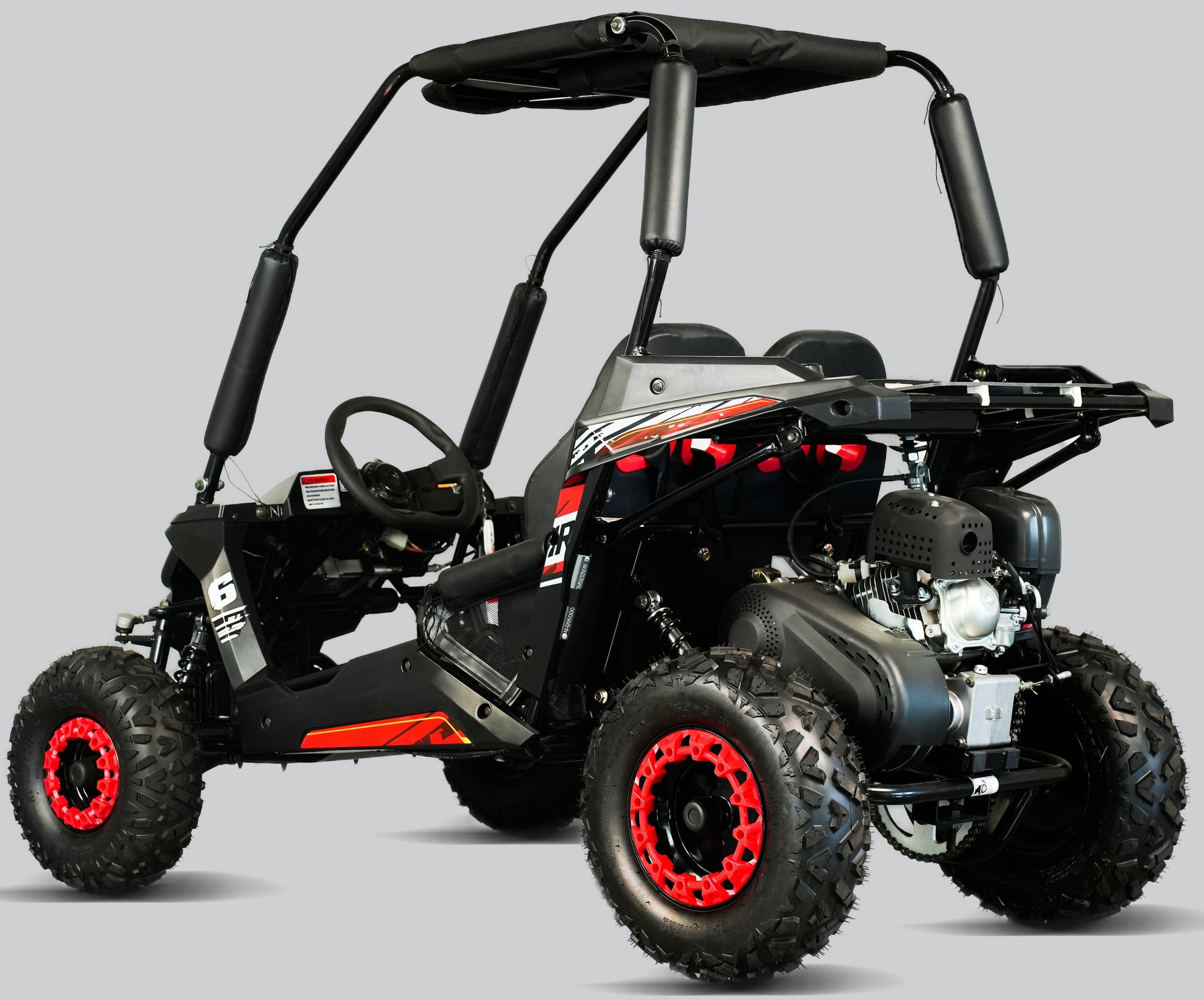

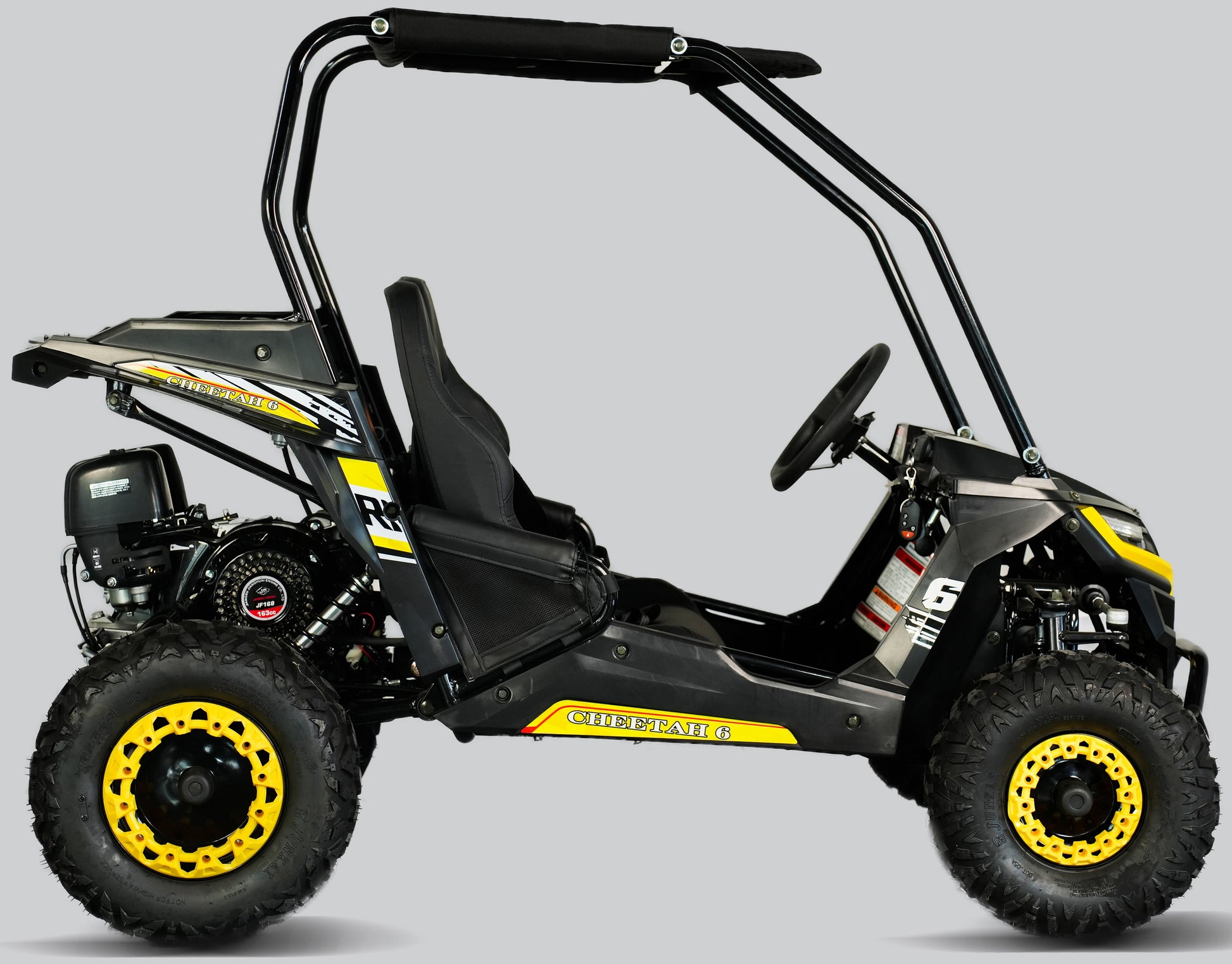

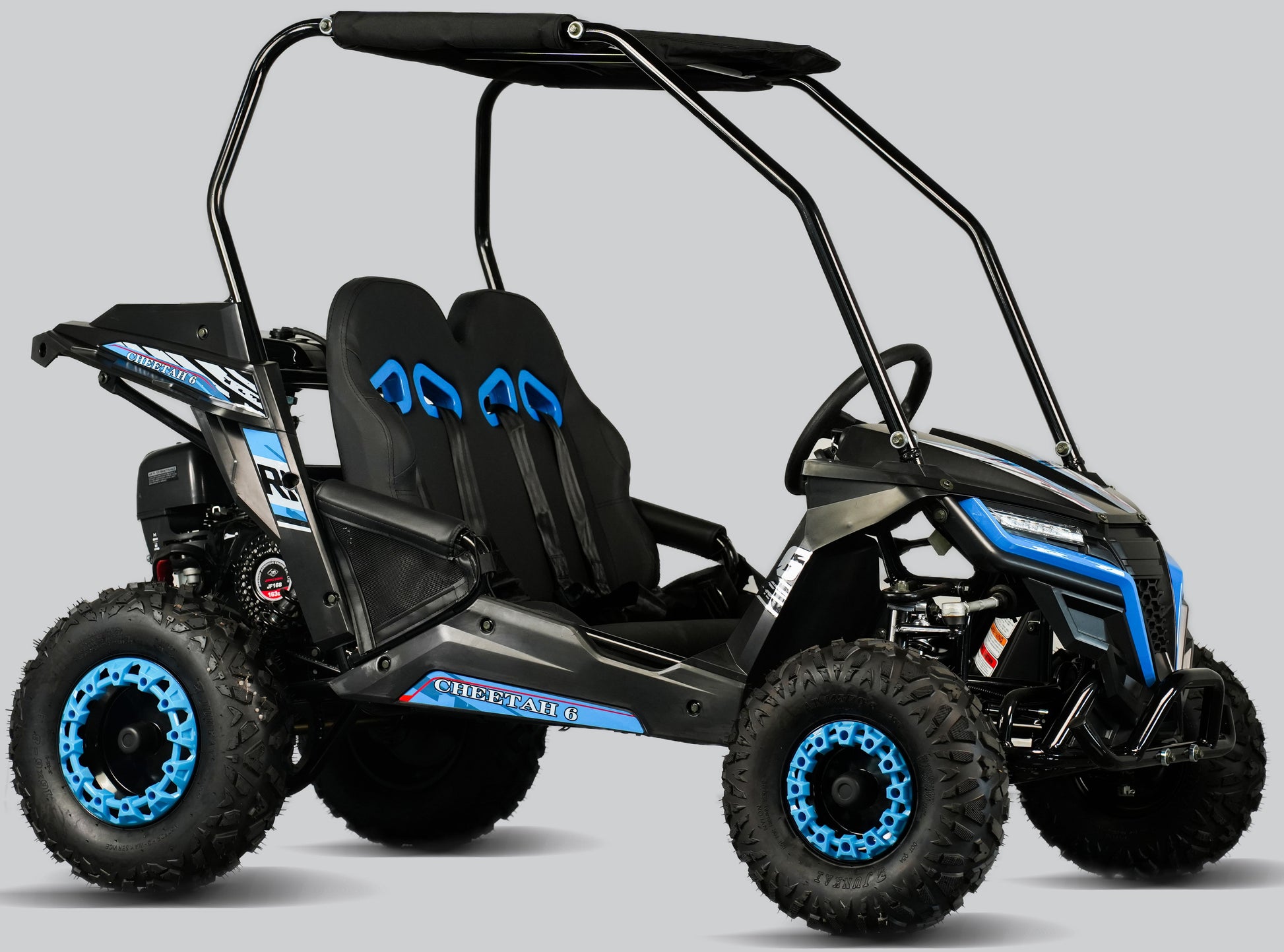

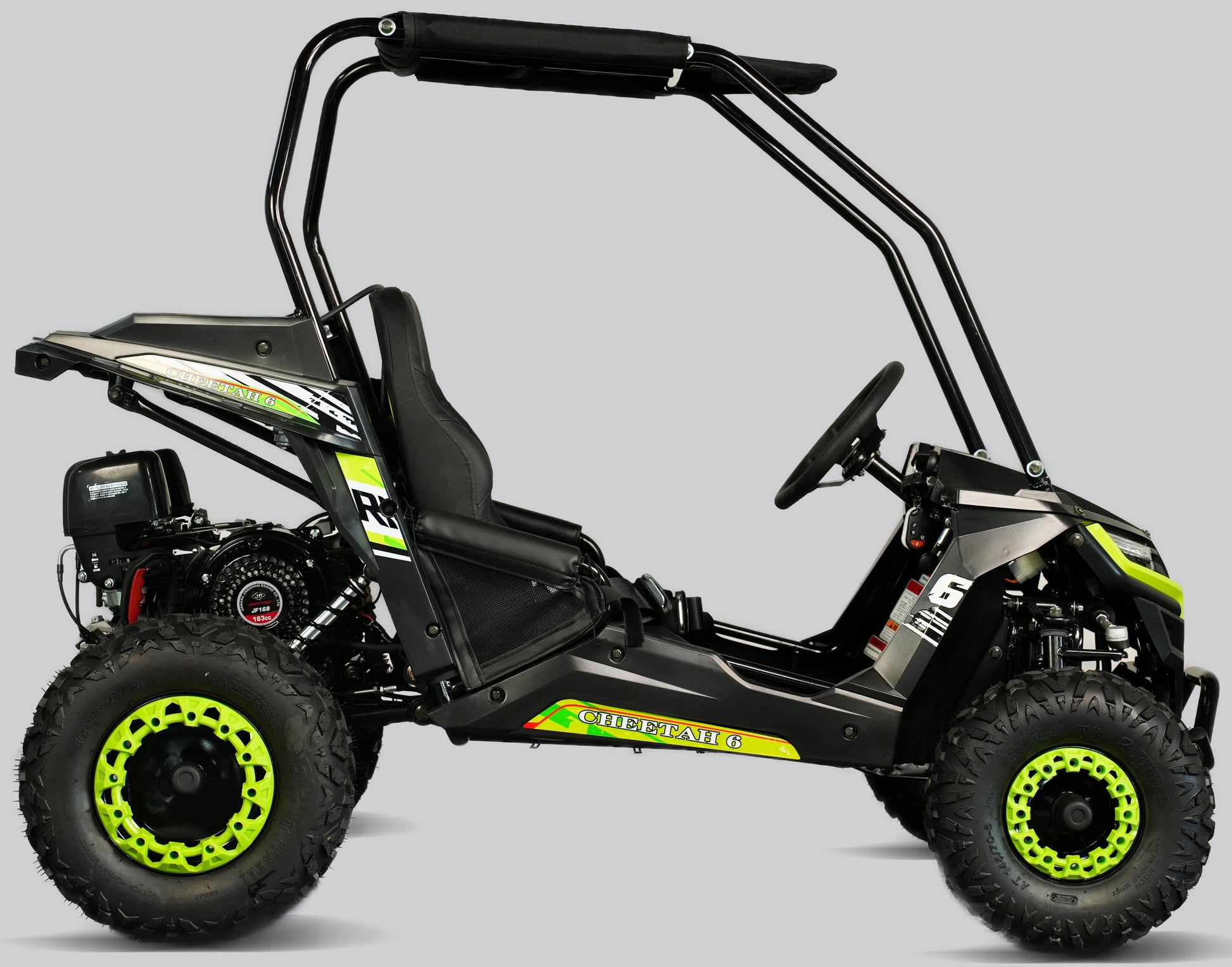

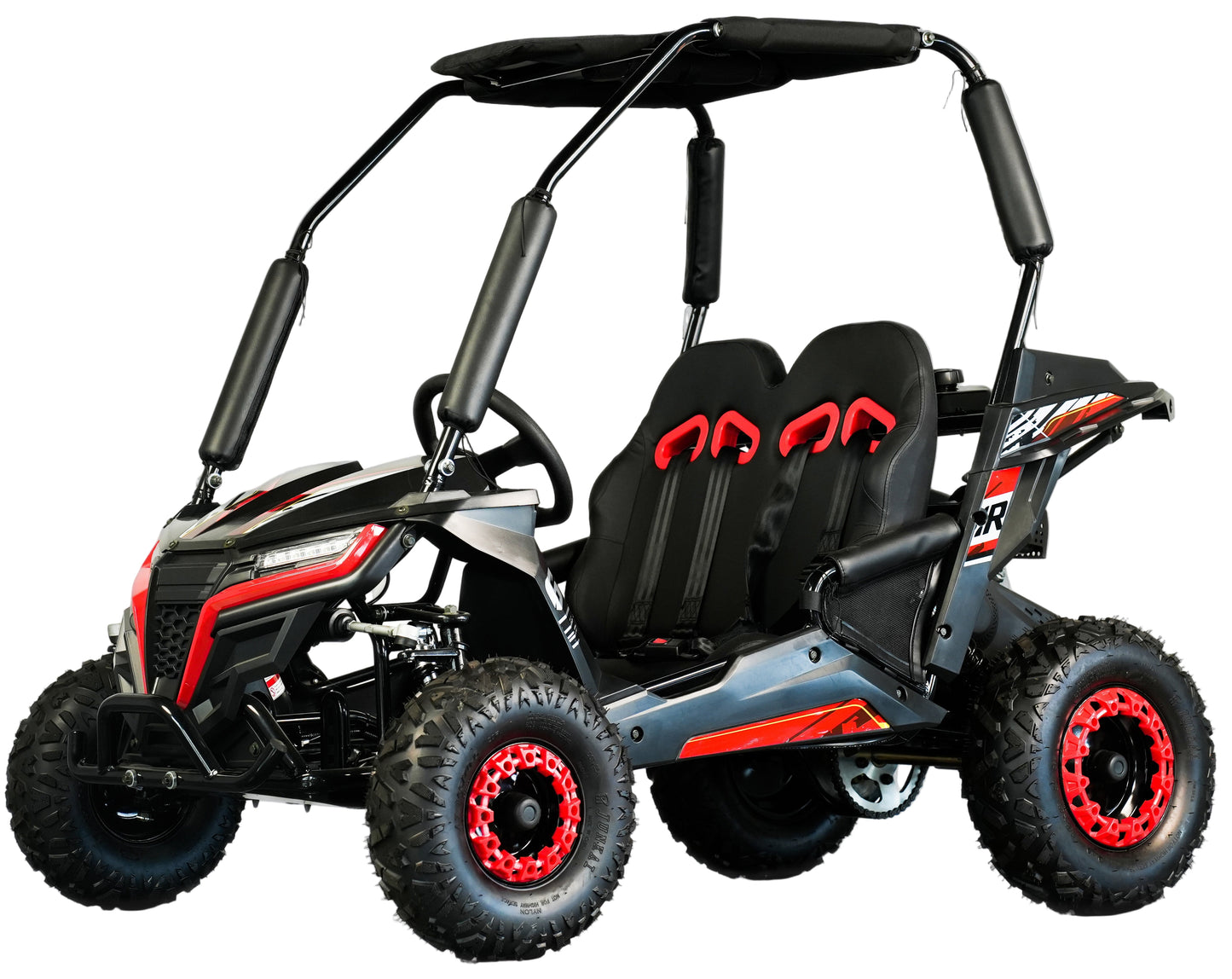

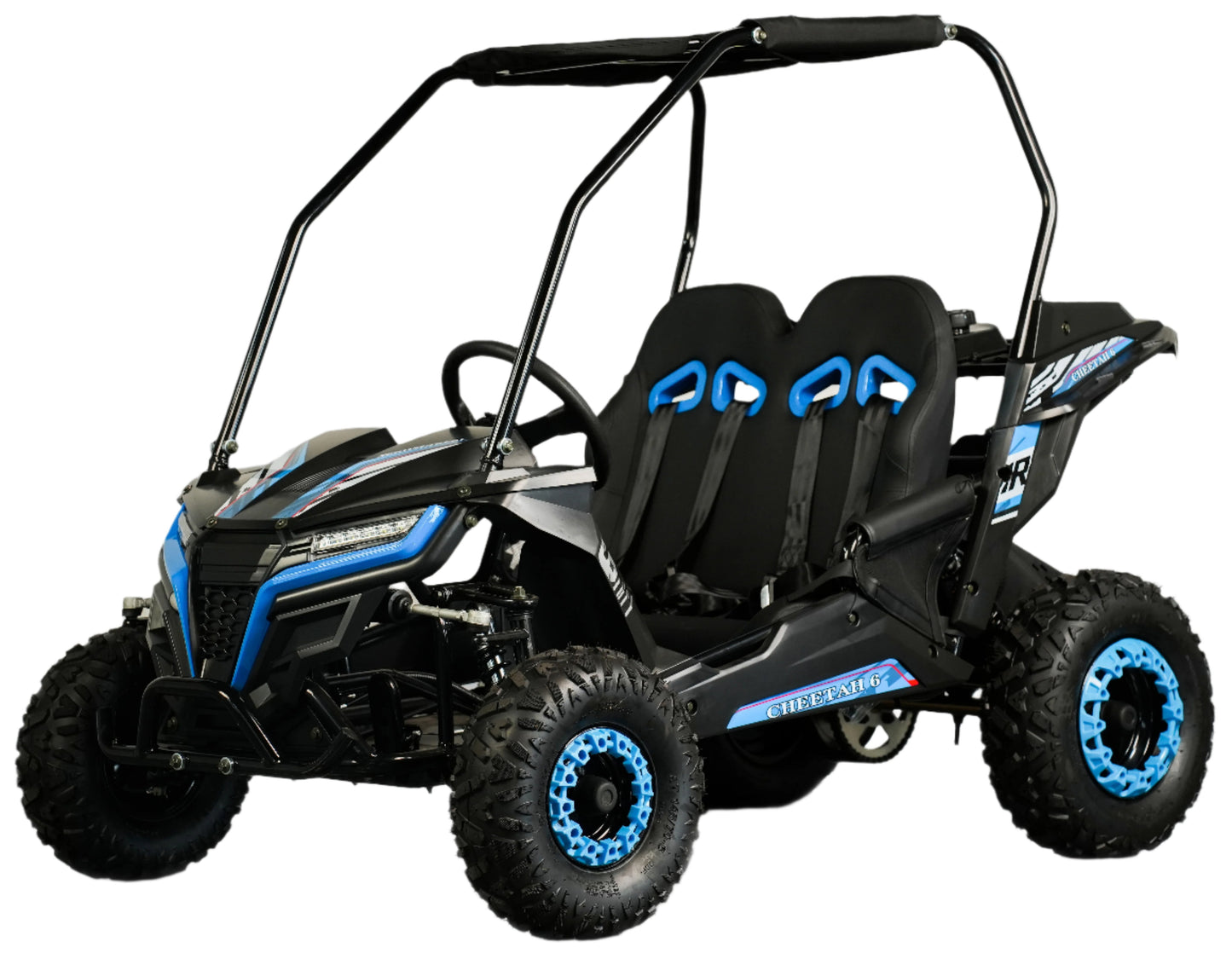

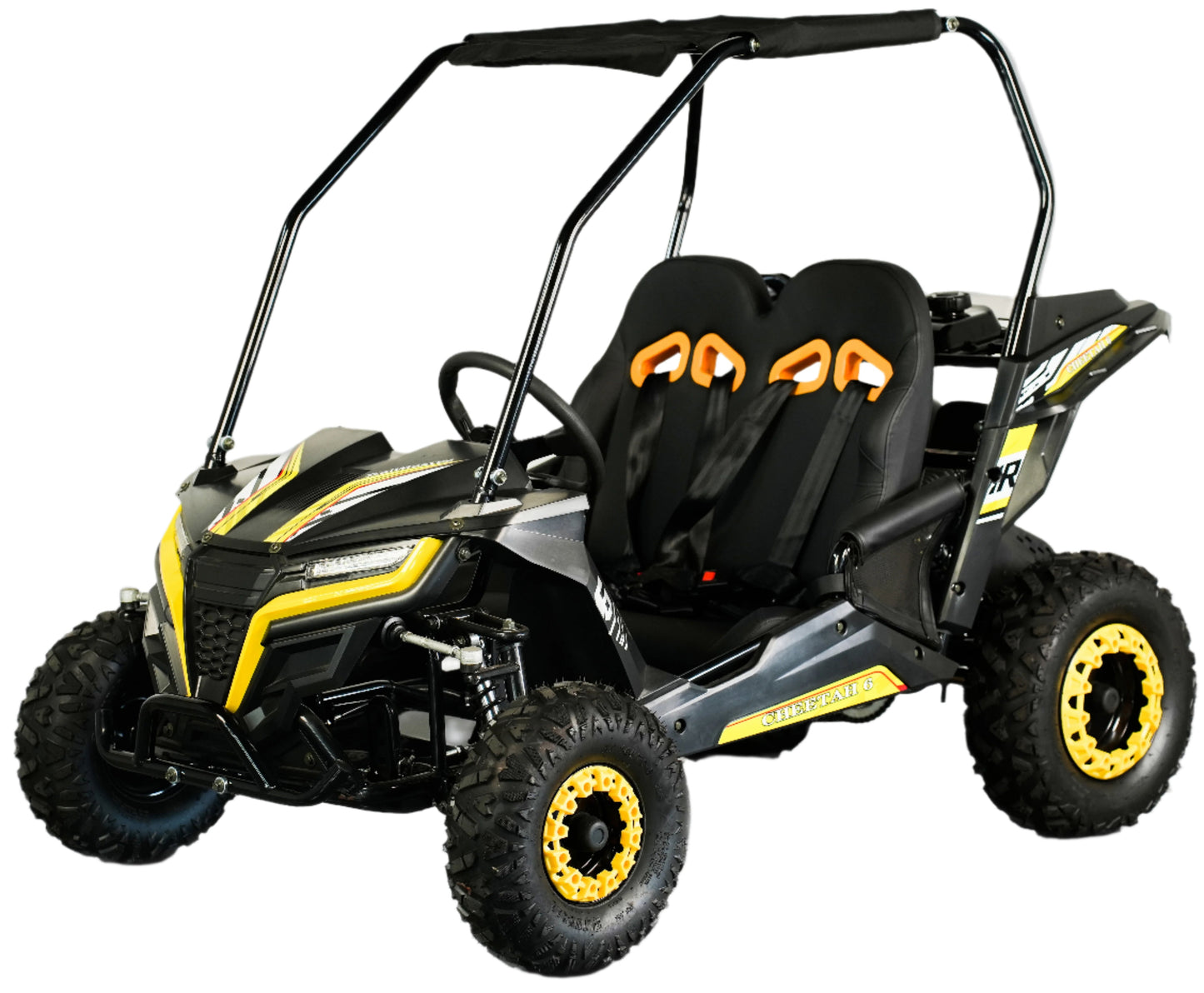

Loaded Model with Electric Start & Reverse
for Kids Ages 4-9

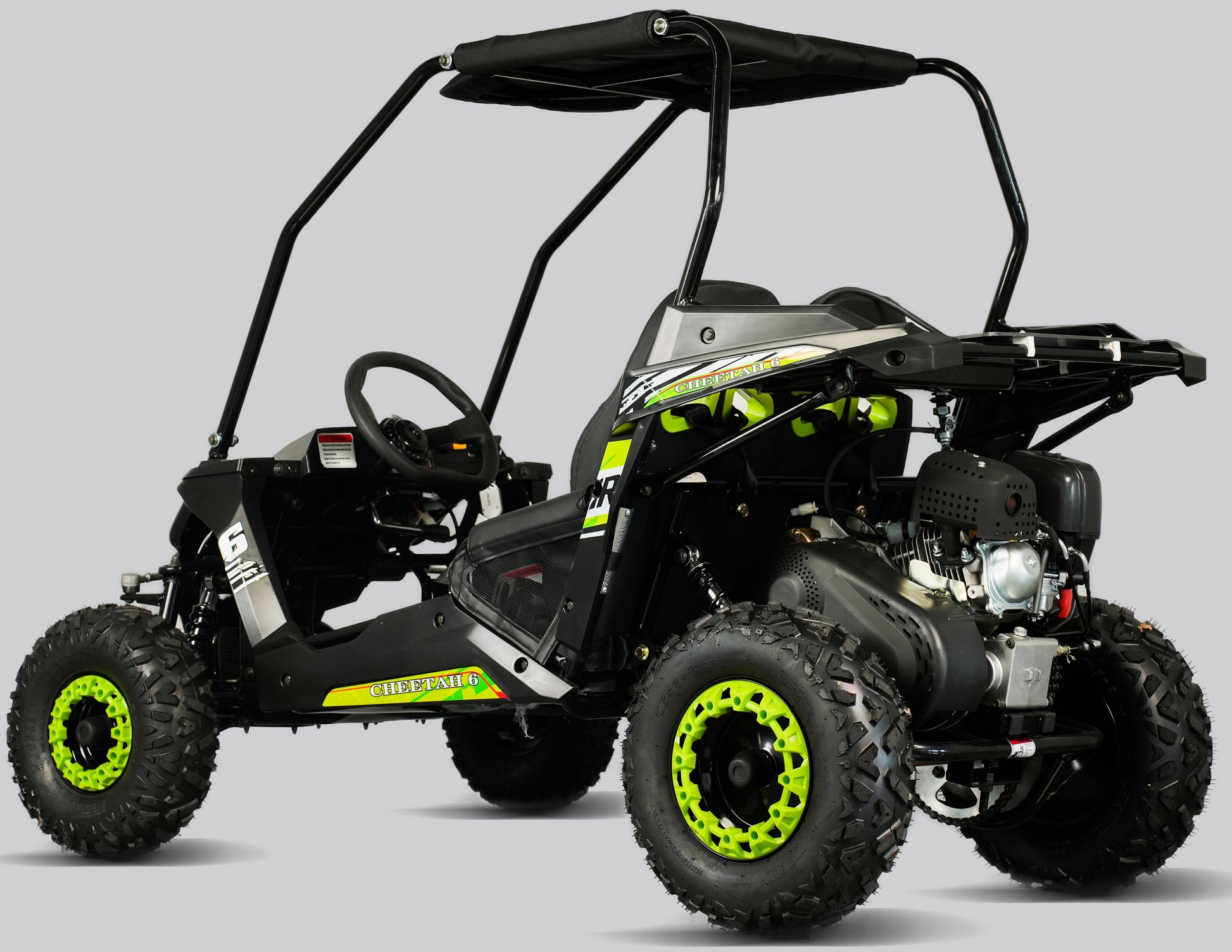

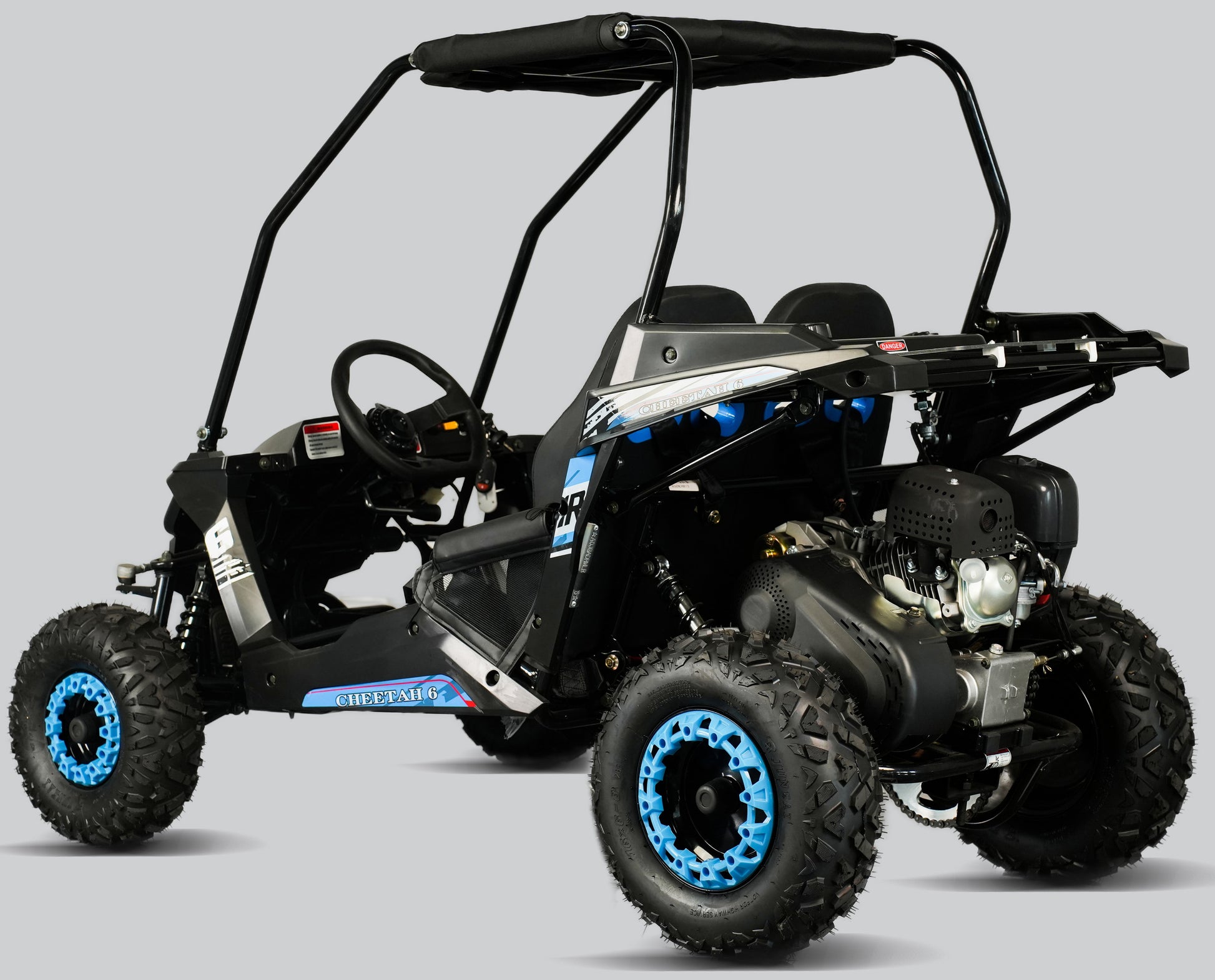

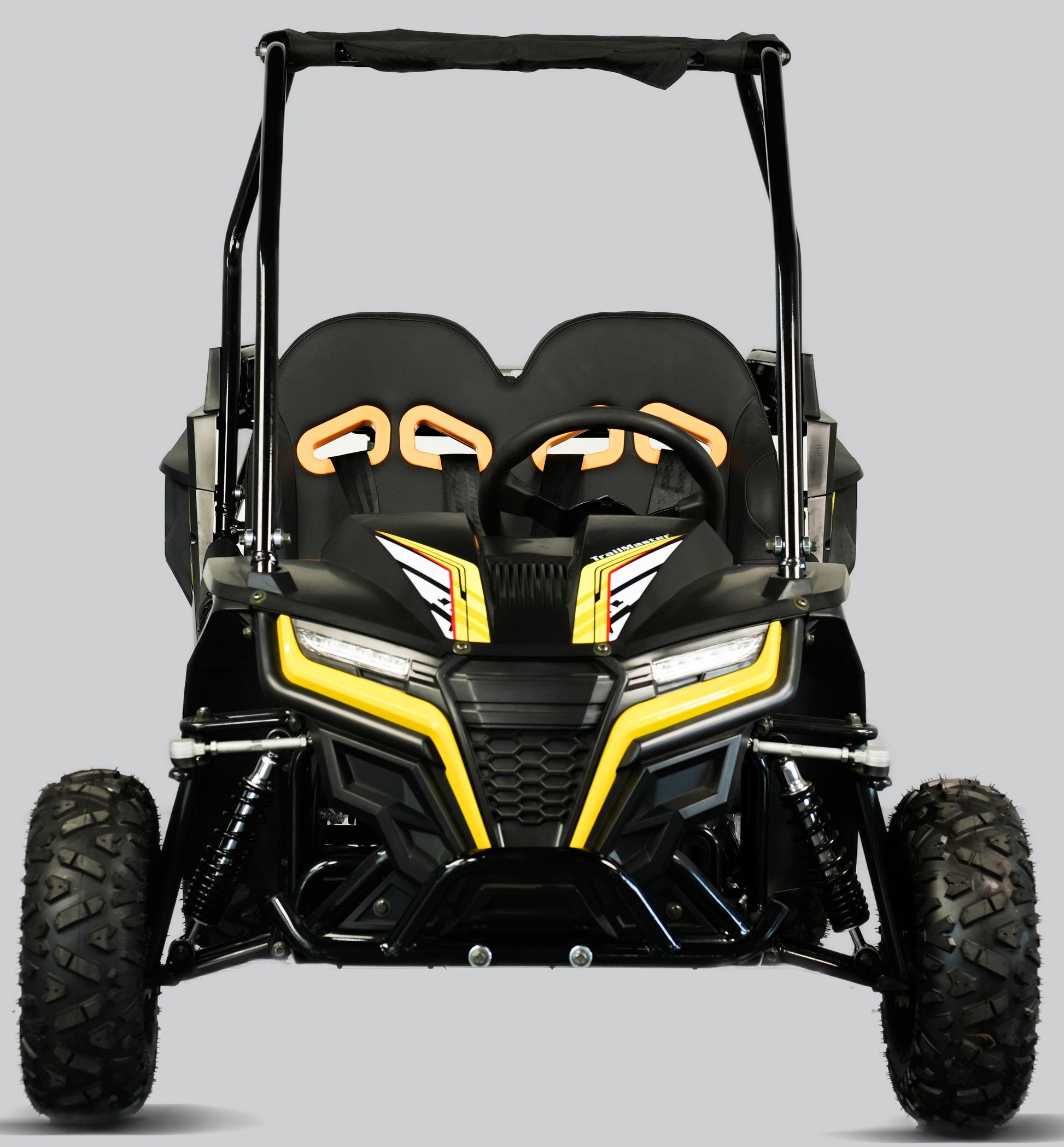

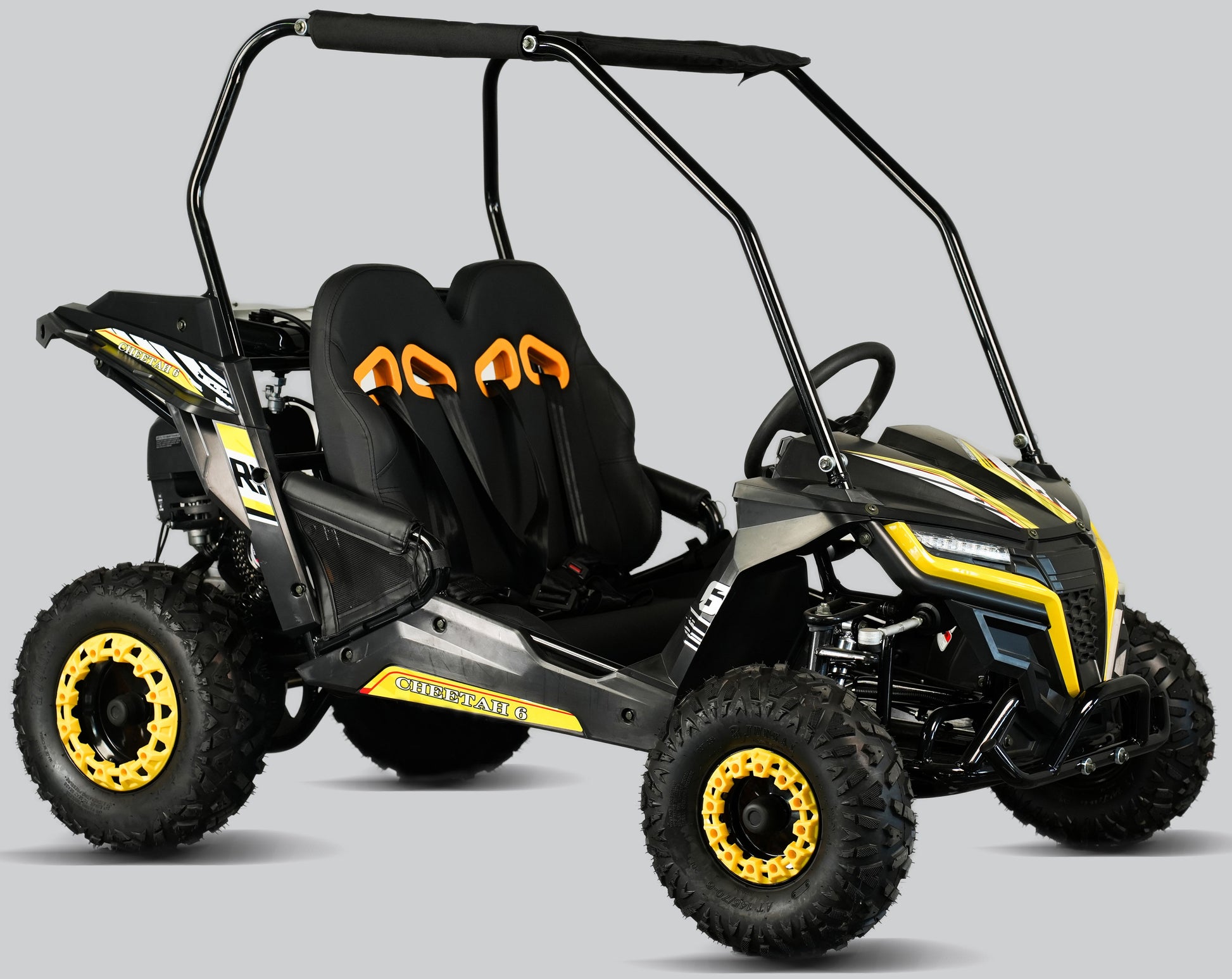

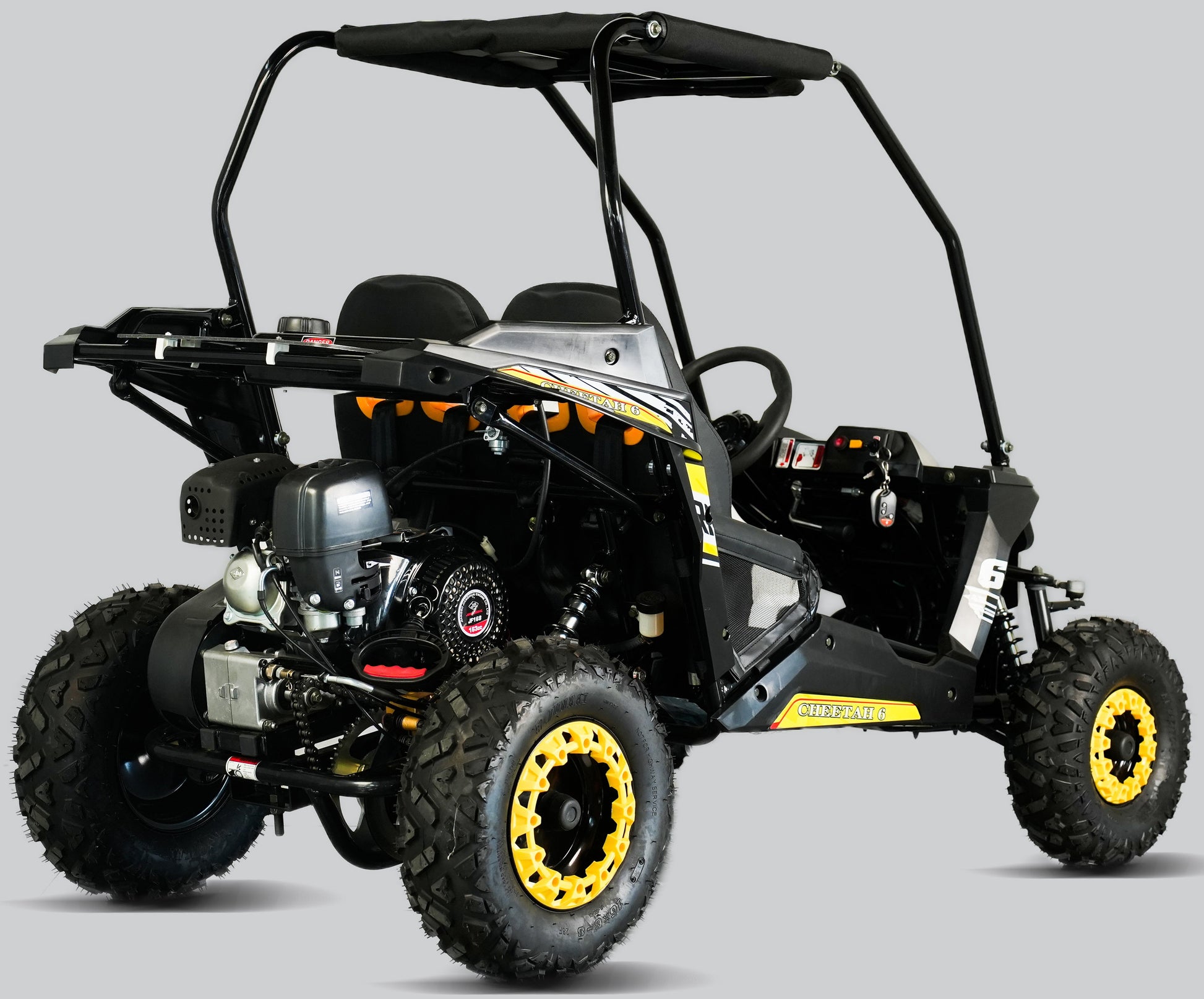

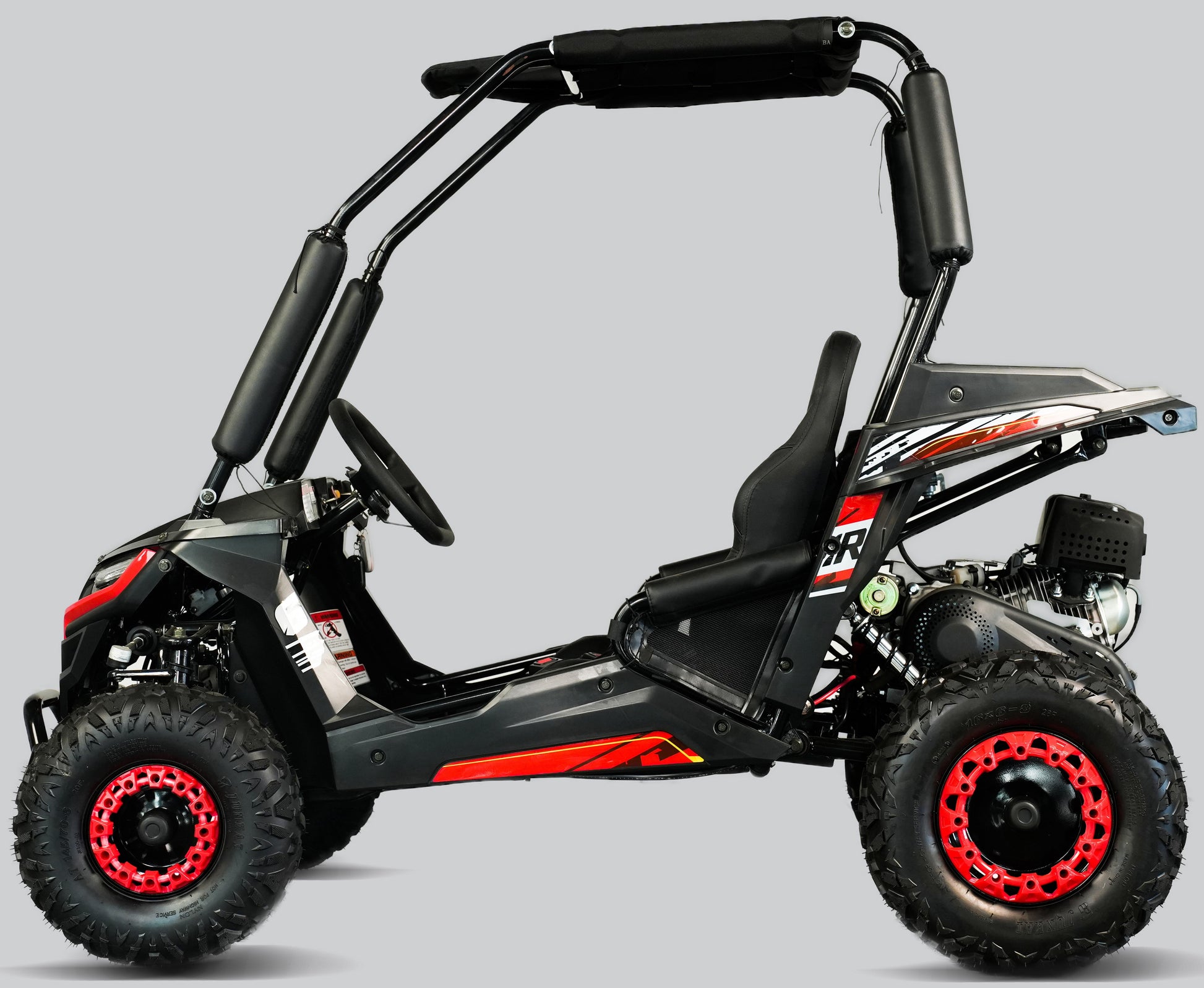

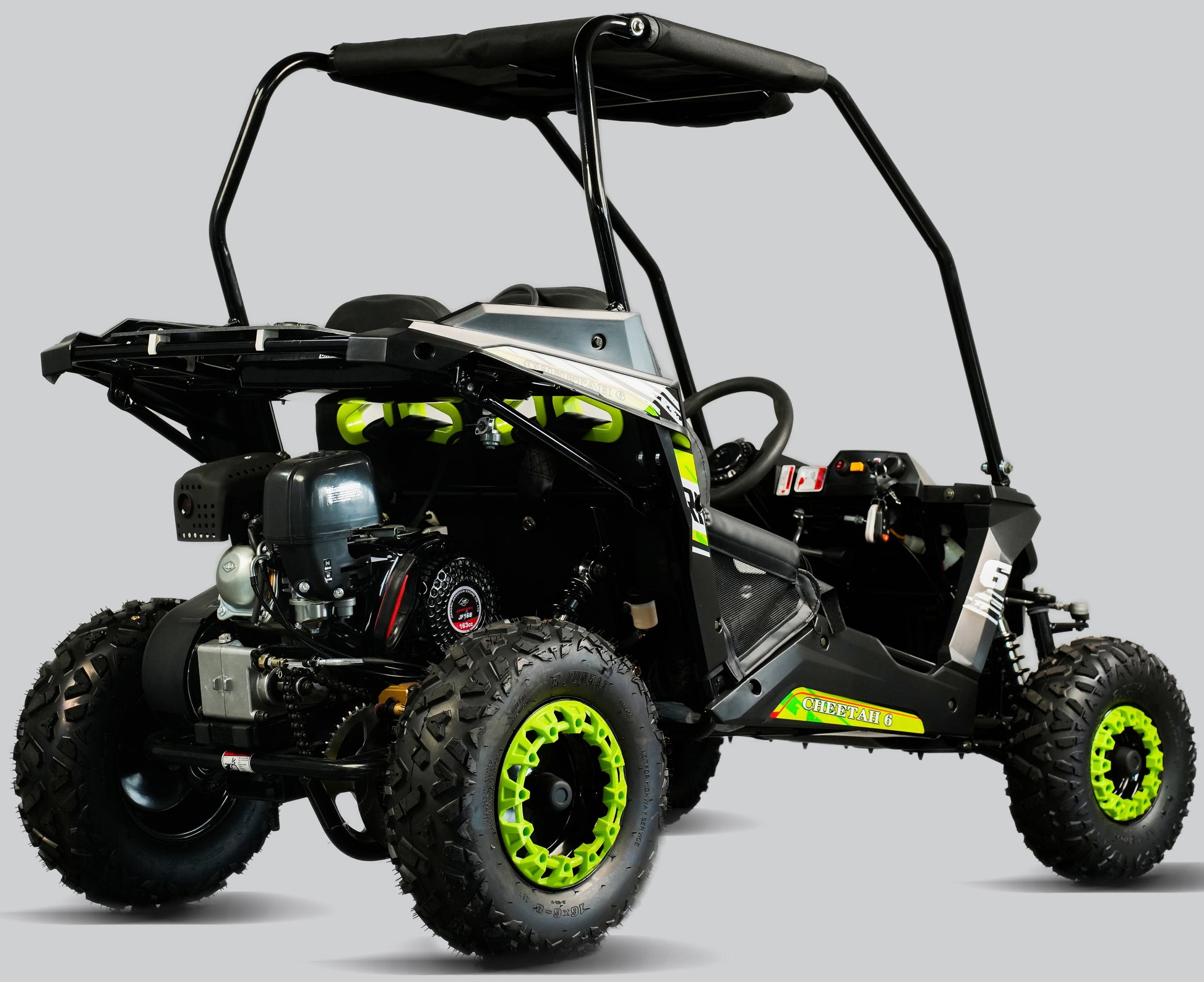

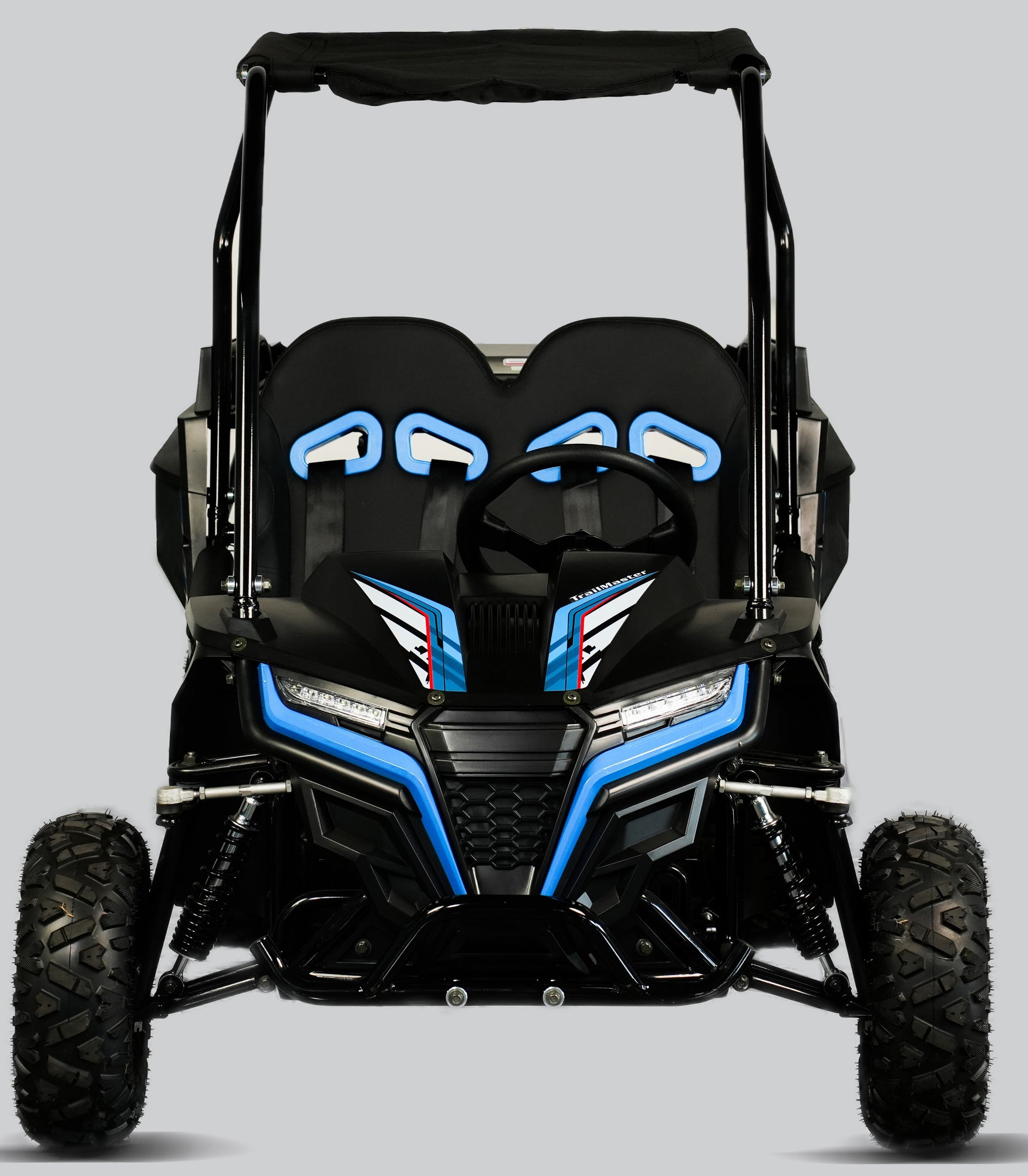

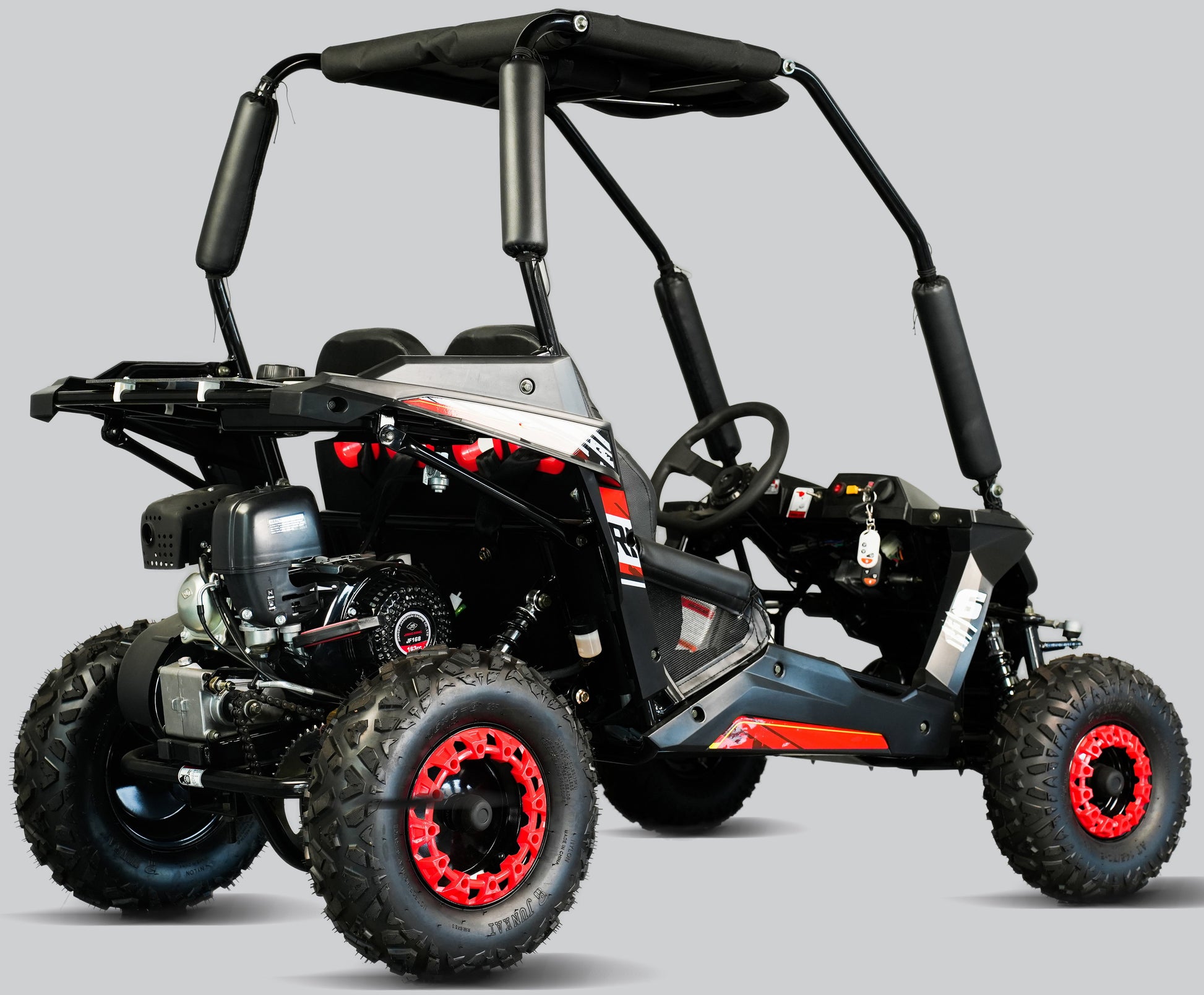

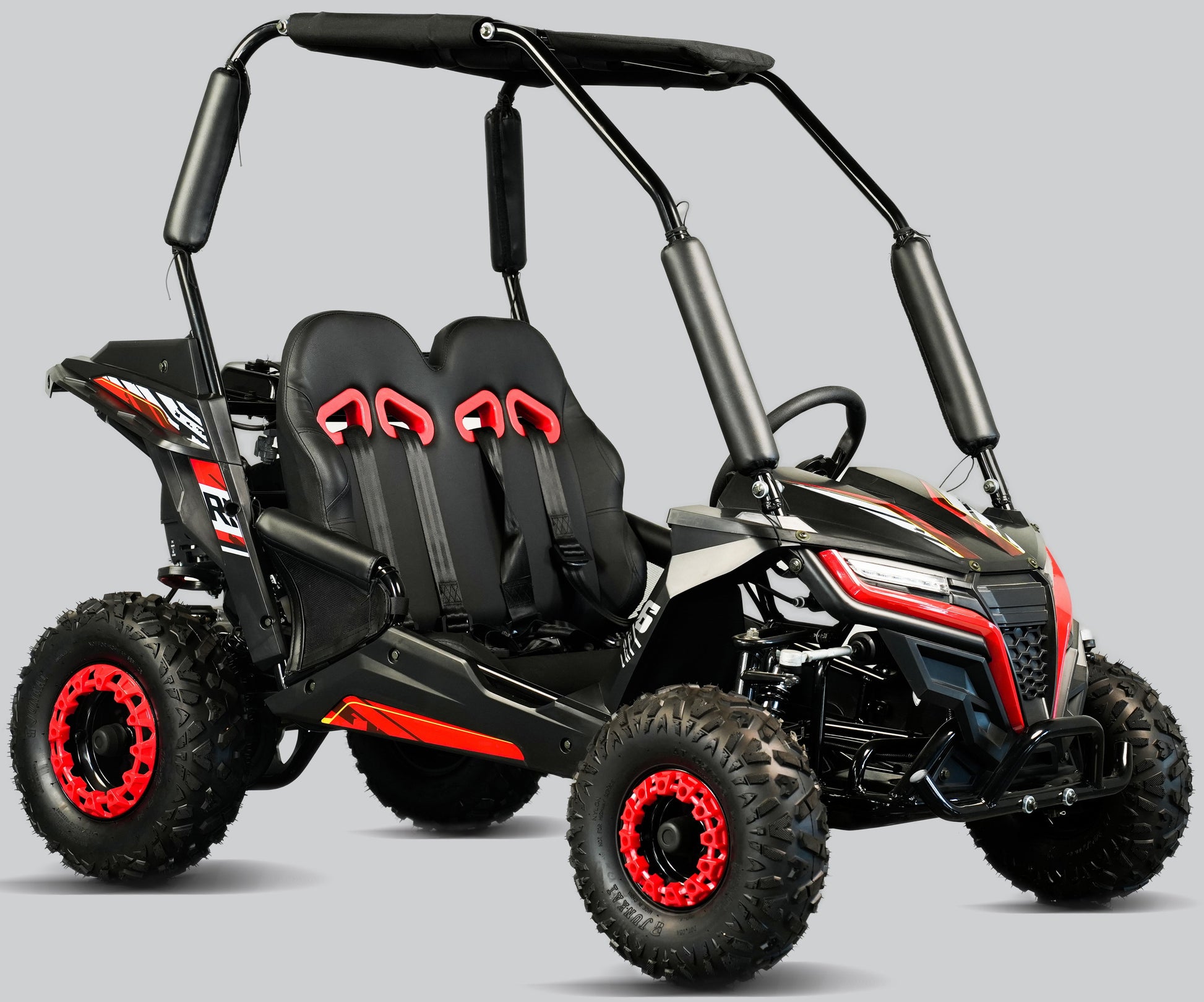

True to its namesake, the Cheetah is sleek, powerful, fast and agile with the power plant, drivetrain, suspension of a high-performance go-kart and the functionality of a utility vehicle.
Extra-long, independent front swing arms, a double ball joint, articulating rear suspension and ample ground clearance lets you glide over the roughest terrain and performing like independent suspension making it much harder to flip over.
Adjustable high back bucket seats, and adjustable steering wheel will accommodate all shapes, sizes and skill level of the wild animal tamers in your family.
Remote Start/Kill, Electric start, Automatic CVT with reverse, hydraulic disk brake, LED headlights, parking brake, fenders, and bikini canopy top are just a few of the many special features.
The TrailMaster Cheetah-6 is a little bit smaller in size comparing to the Cheetah-8. It targets from youth up to 5’4” while comparing the Cheetah 8 up to 5' 10"!
The Cheetah-6 equips with 163cc, 5.5 HP horizontal OHV Engine; Torque converter CVT transmission allows this beast takes off with ease. Its top speed can reach up to 24 MPH. The manual choke allows this unit to start easy even under cold temperatures. Great for kids ages 4-9
FEATURES:
This new kid’s size UTV/Go kart includes the following main features:
- Automatic torque converter CVT with reverse, 5.5 HP horizontal OHV engine
- Adjustable seat: pedal to seat back adjustable from 28” to 32”, Age Group: 4-9 yrs, fits person up to 5’4”
- 4 point safety seat belt
- Remote Start/Kill
- Speed Governor
- Electric start with pull start backup
- Max speed 24 mph
Specifications:
Engine Information
- EPA certificated
- Engine type: 4-stroke, single cylinder, air cooled, Horizontal OHV Engine
- Displacement: 163cc, 5.5HP
- Max HP: 3.2KW/3600RPM
- Max torque: 10.8NM/2800RPM
- Bore x stroke: 2.67x1.77inches
- Max speed: 24 mph
- Climbing ability: 12 degrees
- Starting system: Electric or Pull
- Battery: YTX12-BS,12V 10Ah
- Carburetor brand: P19
- Engine oil: SAE 10W-40
General Information
- Clutch: Automatic torque converter CVT with reverse
- Driveline / Driving wheel: Chain / Dual wheel drive
- Suspension F / R: Double A-arm / swing-arm
- Brake: Rear disc
- Tires, F / R: 145/70-6 /16*6-8
- Wheel: Steel
- Fuel capacity: 1 gal
- Weight, G.W. / N.W.: 308 / 264 lbs
- Max load: 200 lbs
Dimension Information
- Wheelbase: 43.7 inches
- OA L x W x H: 63x36x50 inches
- Height to seat: 14.2 inches
- Min ground clearance: 3.6 inches
- Pedal to seat back distance: 28” to 32”
- Packing size: 60X32X21 inches
