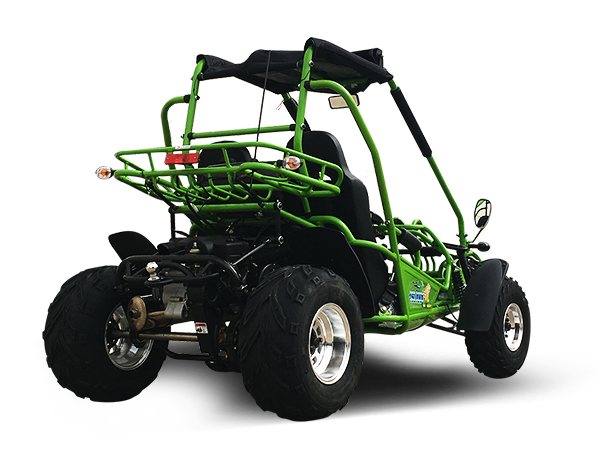

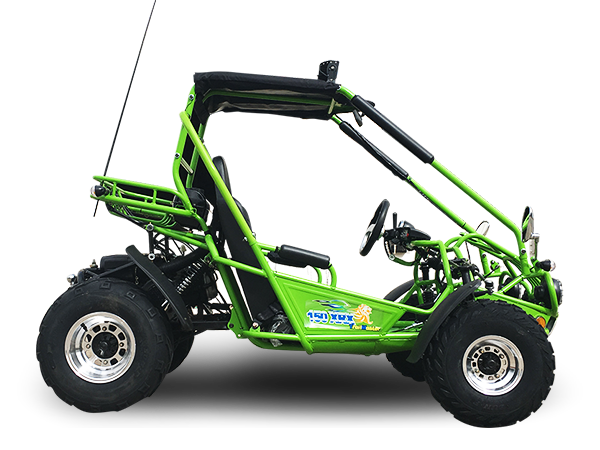

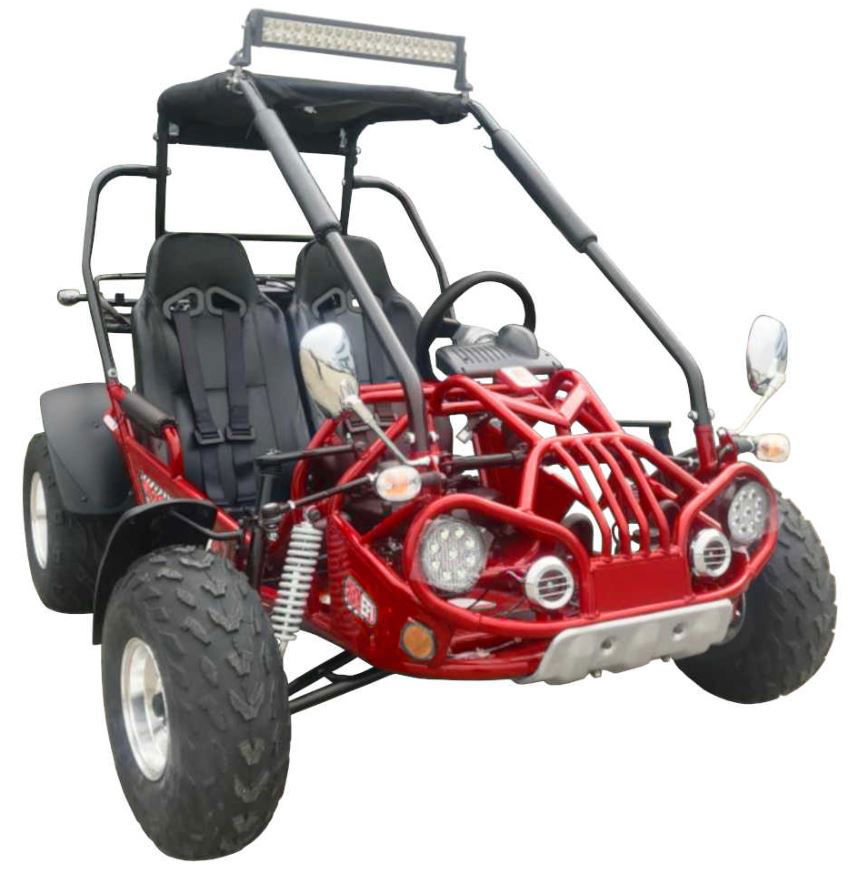

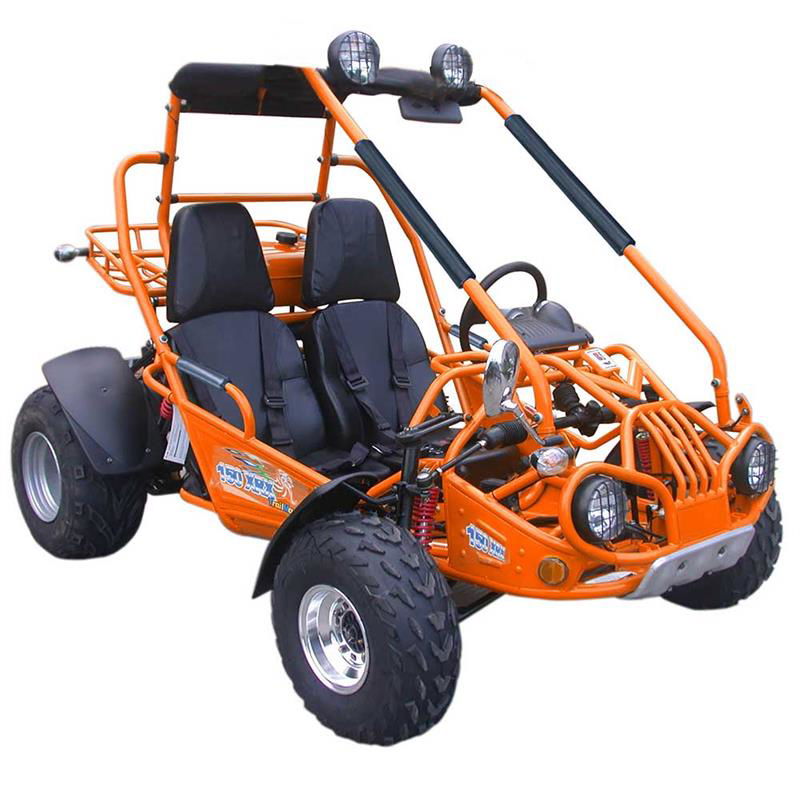

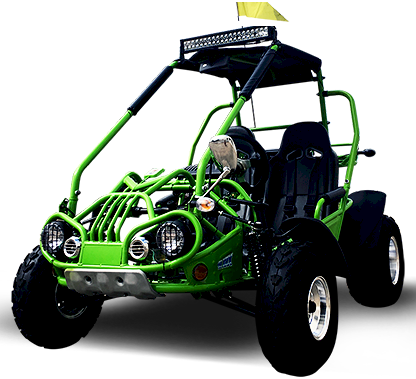

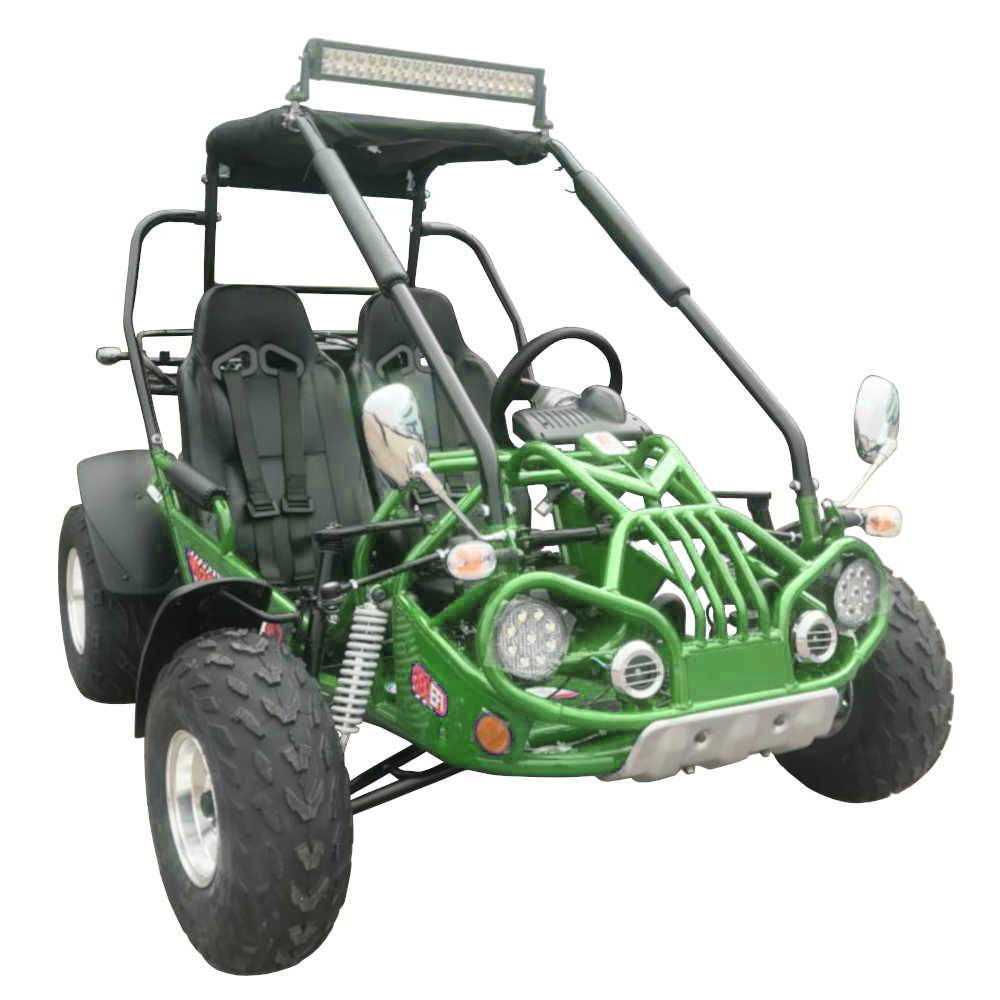

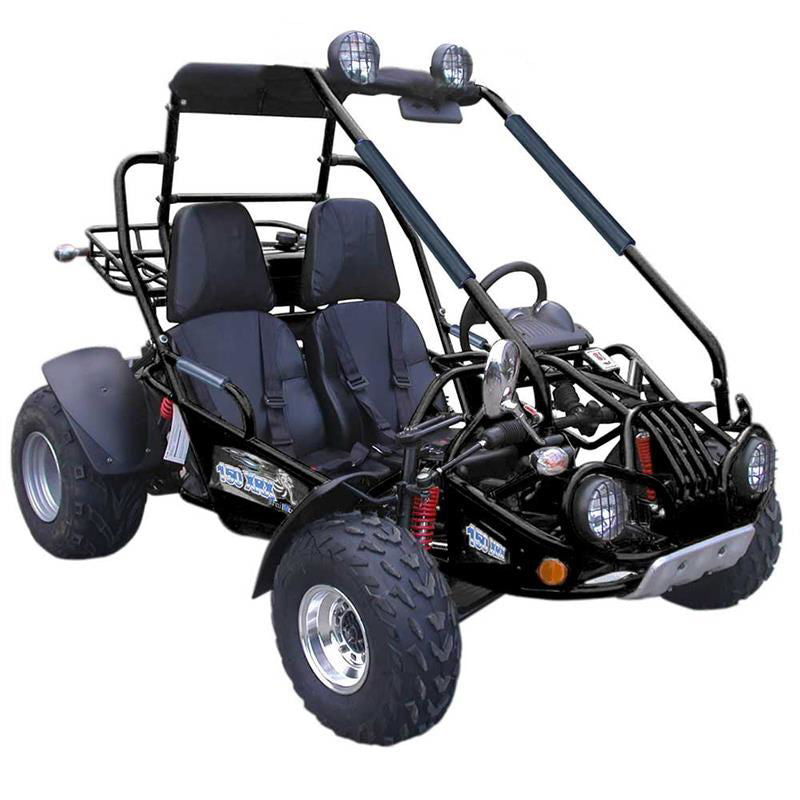

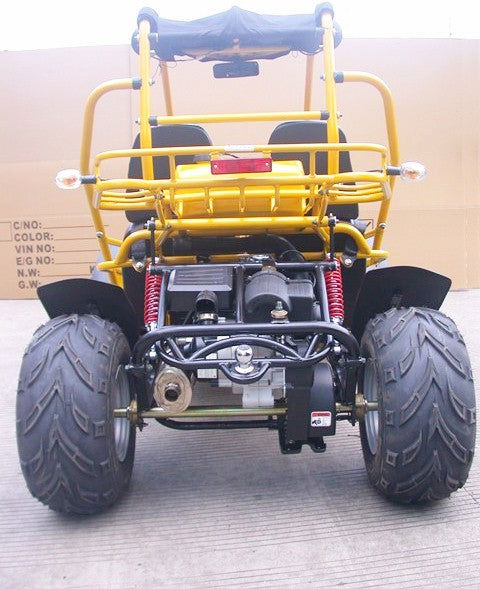

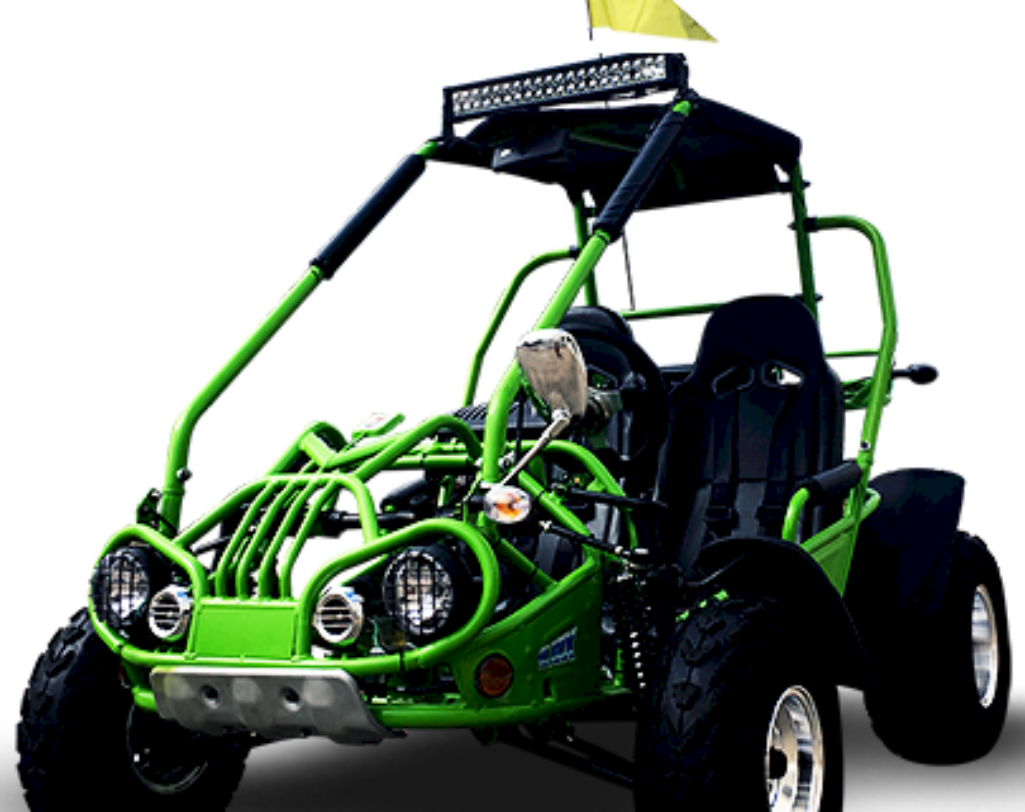

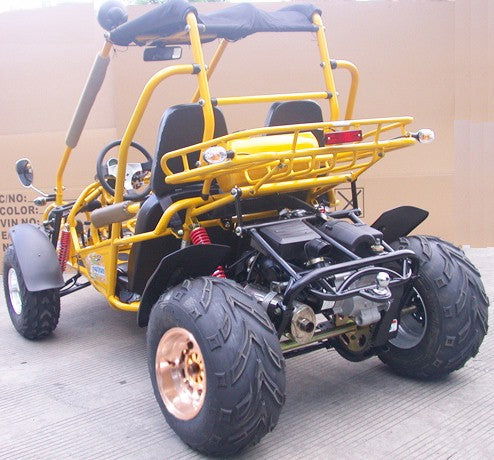

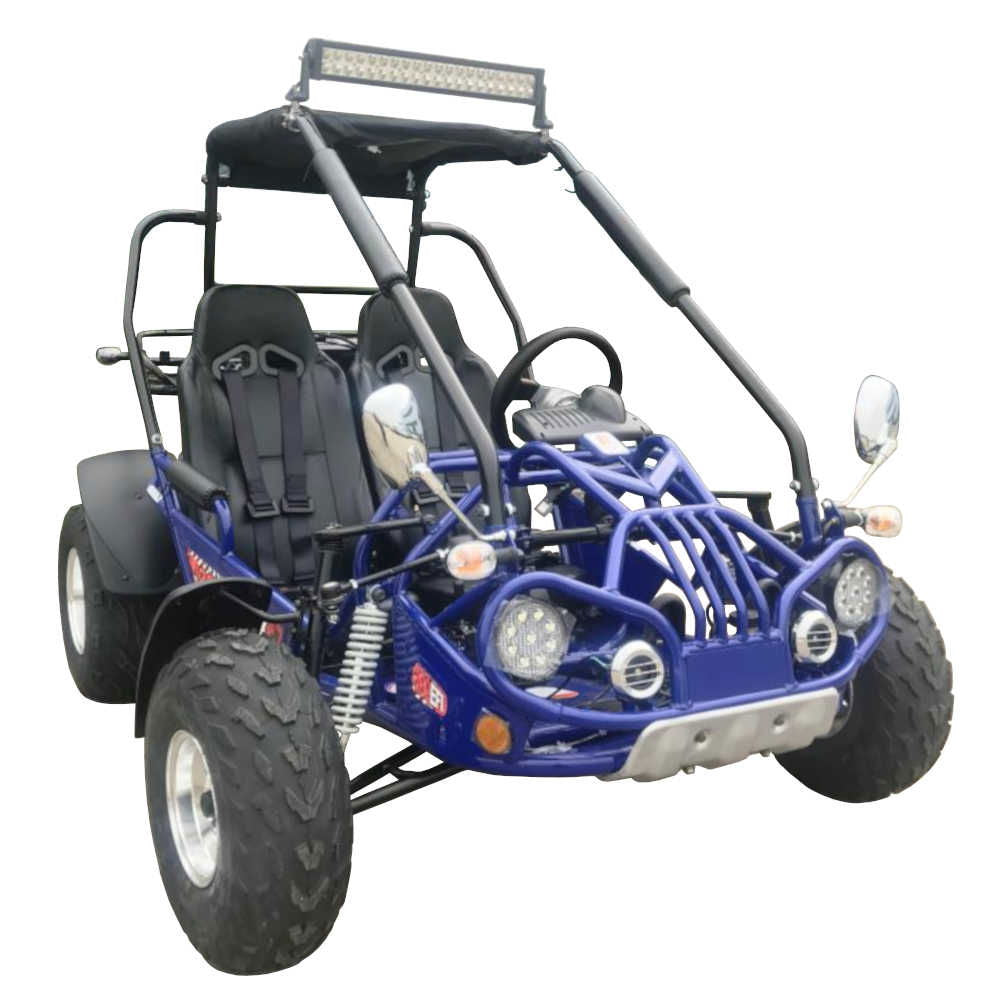

EFI Fuel Injection. The TrailMaster 200E XRX adult size kart is the deluxe model in the 200 series. Loaded with all the most requested features, this model is a winner. Great looks, outstanding performance, extremely competitive pricing and world class support...it doesn't get any better than that.
DELUXE MODEL Extras Include: Polished Aluminum Wheels, Digital Speedo, Top Bar Light, Turn Signals, Adjustable Steering Wheel, Trailer Hitch and Mirrors.
FEATURES INCLUDE: Electric Start, FULLY LOADED Adult-Sized Buggy Go Kart, Full Suspension, CVT Automatic with Reverse, Live Axle, Dual Wheel Drive, Dual Adjustable Seats, Disc Brakes, Fenders, Rack, Canopy Top, Lights, Tow Hitch.
FEATURES:
.
- Alloy wheels with 22X7-10 front and 22X10-10 rear aggressive tires
- Top LED light bar
- Nitrogen adjustable front and rear shock
- Upgraded racing seat belt

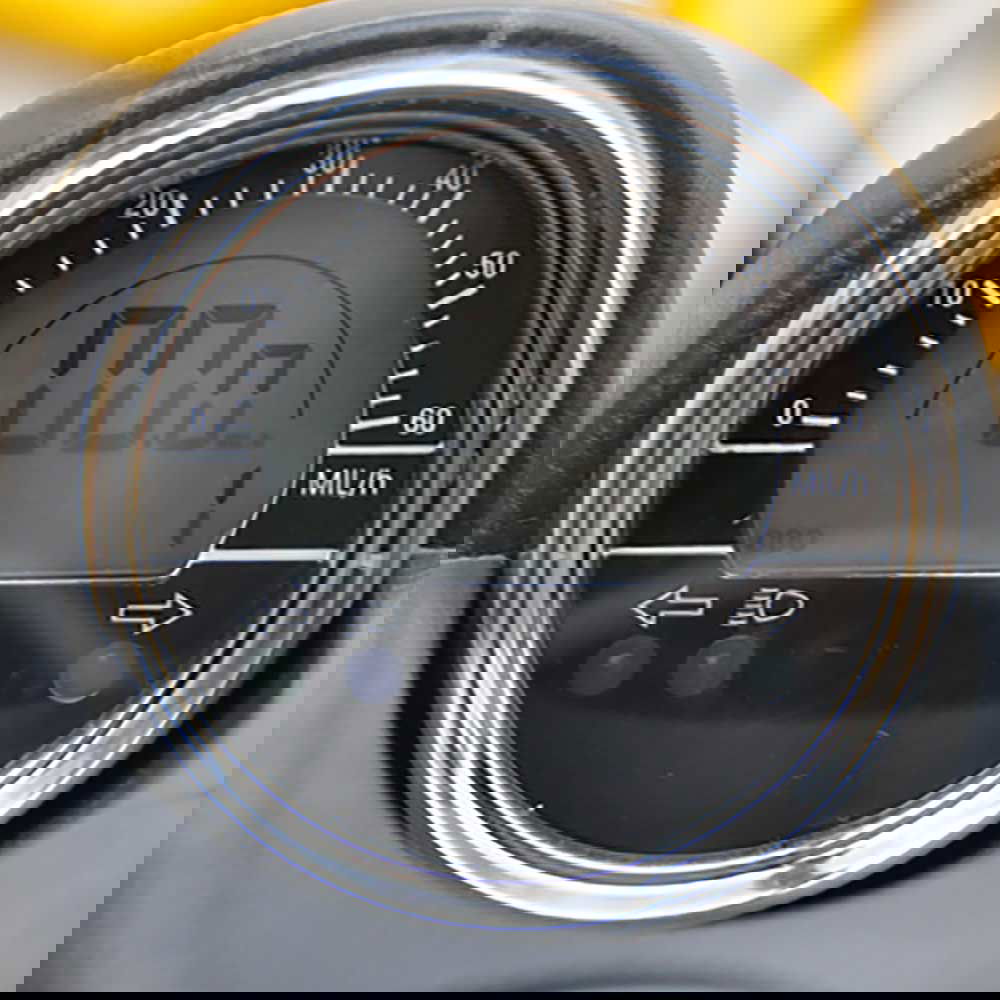

- Digital speedometer/odometer
- Aluminum side mirrors
- Turn signals
- Sporting steering wheel
- Stylish design
- Exciting graphics
- Five-point safety harness
- Electric start with kill switch
- Fully automatic with reverse,
- high performance 200cc GY6 engine with internal F-N-R

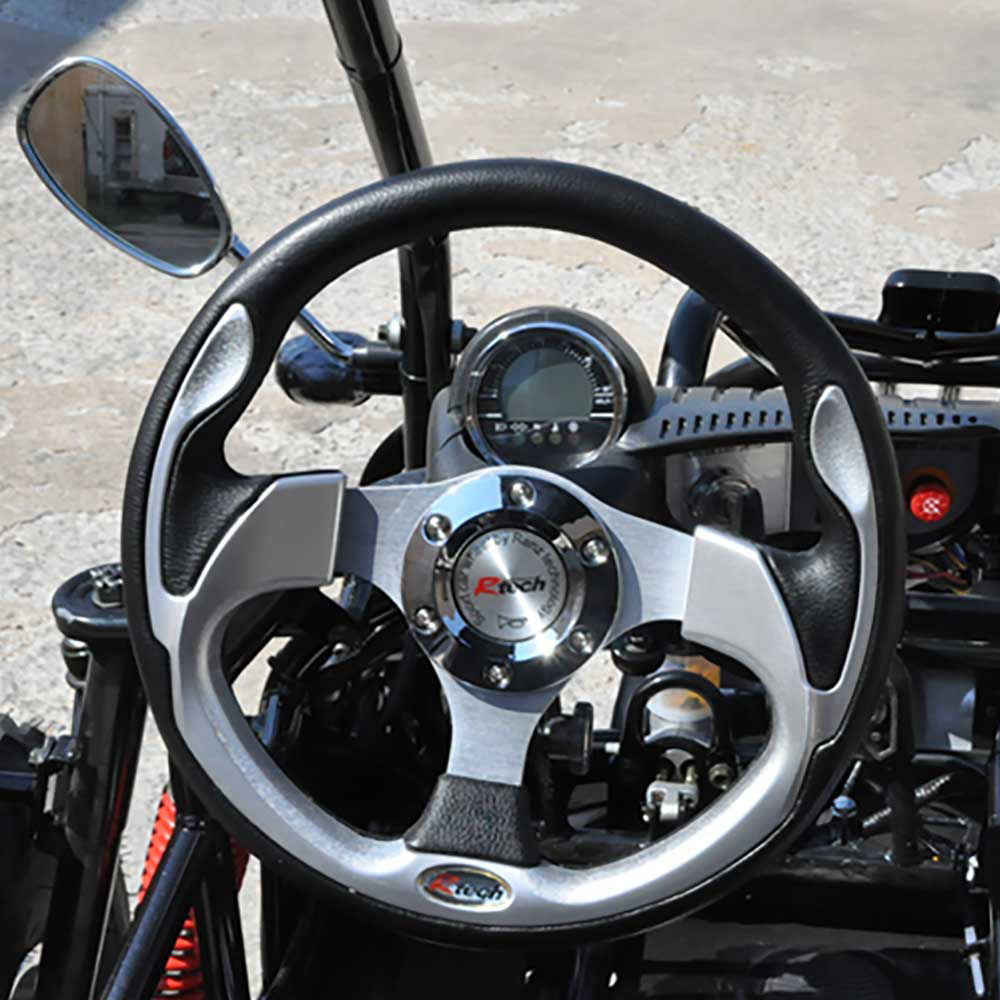

- Adjustable steering wheel
- Individual sports seats
- Polished stainless steel muffler
- LED headlight
- Bikini sunshade top
- Adjustable driver seat: pedal to seat back adjustable from 41 to 46
- Central rear-view mirror
- Rack and pinion steering wheel
- Front and rear hydraulic disc brake
- 4-point rear swing arm
- Parking brake
- 4-wheel stylish fenders
- Trailer hitch
- Large rear utility rack
- Large gas tank
SPECIFICATIONS:
- Engine type: 200cc, EFI 4-stroke, single cylinder, air cooled
- Max HP: 12.3hp/7500rpm
- Max torque: 11 lb ft/6000rpm
- Bore x stroke: 2.26x2.28 inches
- Max speed: 47.5 mph
- Climbing ability: 12 degrees
- Ignition: C.D.I
- Starting system: Electric
- Battery: 12V 10Ah
- Carburetor brand: Deli (Vacuum film)
- Engine oil: SAE 10/15W-40
- Clutch: Automatic CVT with reverse
- Driveline / Driving wheel: Chain / Dual wheel drive
- Suspension F / R: Double A-arm / swing-arm
- Brakes, F / R: Both hydraulic brakes, Disc
- Tires, F / R: 22x7-10 / 22x10-10
- Fuel capacity: 2.25 gal
- Adjustable Driver Seat: Pedal to Seat Back adjusts from 38" to 43"
- Weight, G.W. / N.W.: 573 / 485 lbs
- Max load: 500 lbs
- Wheelbase: 59 inches
- OA L x W x H: 85x53.1x57.5 inches
- Height to seat: 13.8 inches
- Min ground clearance: 6.7 inches
